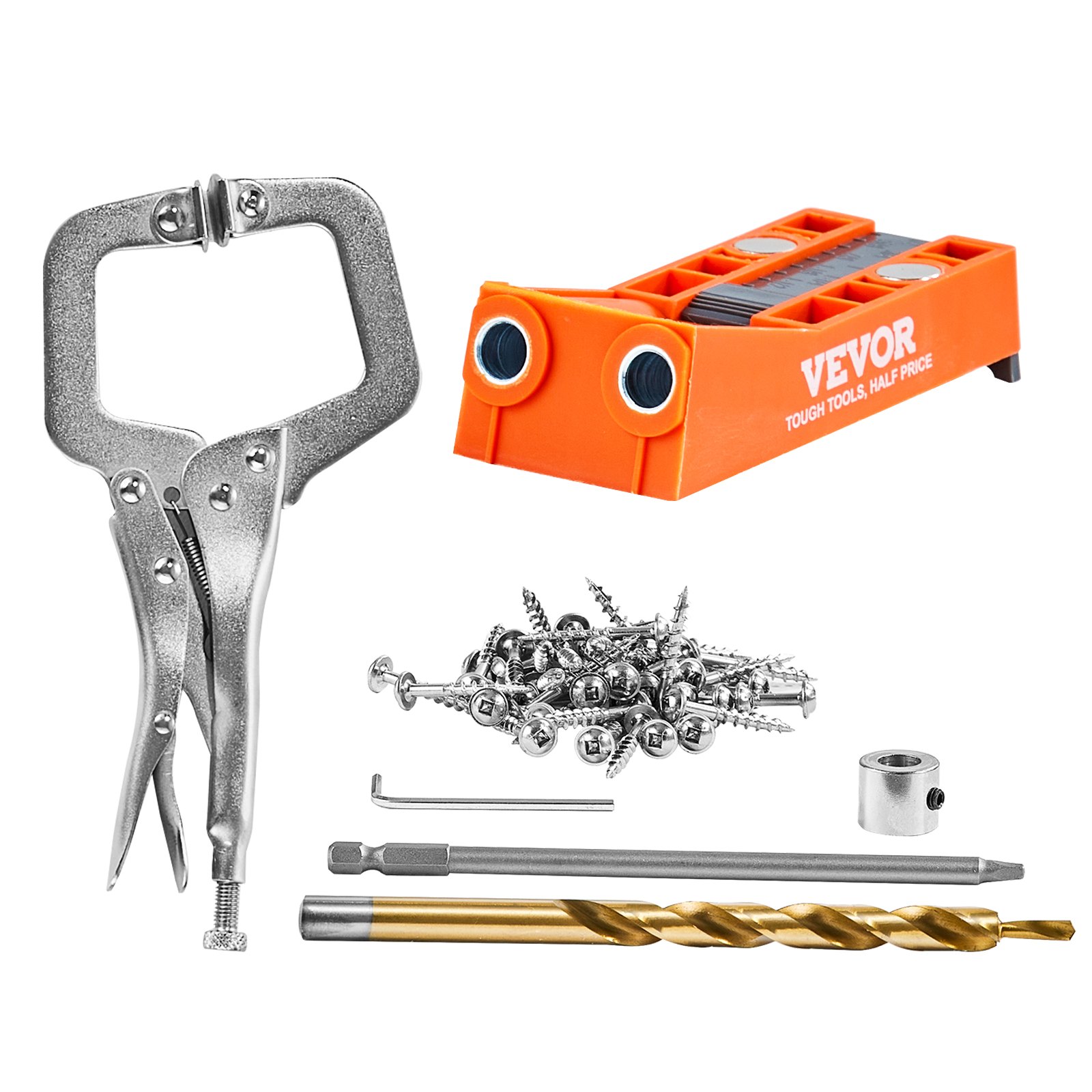

VEVOR Pocket Hole Jig, 56 Pcs Mini Jig Pocket Hole System with 9″ C-clamp Manual

Unlock the full potential of your VEVOR Pocket Hole Jig, 56 Pcs Mini Jig Pocket Hole System with 9″ C-clamp, Step Drill, Wrench, Square Drive Bit, Drill Stop Ring, and Screws, for DIY Carpentry Projects with our comprehensive product manual.

This user-friendly guide provides step-by-step instructions for setup, troubleshooting, and optimizing your pocket hole jig system, making it an invaluable resource for both beginners and seasoned DIY enthusiasts.

Whether you’re tackling intricate carpentry projects or simple home repairs, our detailed manual ensures you get the most out of your VEVOR Pocket Hole Jig. Download now and master every aspect of your tool, from the initial setup to advanced techniques. With clear illustrations and expert tips, this manual is designed to make your woodworking experience smoother and more efficient.

VEVOR Pocket Hole Jig User Manual

MODEL: XRS026

Instructions

Thank you very much for choosing this hole jig. Please read all of the instructions before using it. The information will help you achieve the best possible results.

WARNING!

Read and understand all instructions before using this pocket hole jig. The operator must follow basic precautions to reduce the risk of personal injury and/or damage to the equipment. Keep this manual for safety warnings, precautions,operating or inspection and maintenance instructions.

Work Area

1. Operate in a safe work environment. Keep your work area clean, well-lit, and free of distractions.
2. Keep anyone not wearing the appropriate safety equipment away from the work area.
3. Store unused tools properly in a safe and dry location to prevent rust or damage. Lock the pocket hole jig away and keep it out of the reach of children.

PERSONAL SAFETY

WARNING! Always wear personal protective equipment.

Personal Protective Equipment

1. Always wear impact safety goggles that cover the front and side of the eyes. Depending on the type of work performed, eye protection equipment should comply with CSA Z94.3-07 or ANSI Z87.1 standards.
2. Wear gloves that provide protection based on the work materials or to reduce the effects of tool vibration.
3. Wear protective clothing designed for the work environment and a pocket hole jig.
4. Non-skid footwear is recommended to maintain footing and balance in the work environment.

Personal Precautions

Control the pocket hole jig, personal movement and the work environment to avoid personal injury or damage to the pocket hole jig.

1. Do not operate any pocket hole jig when tired or under the influence of drugs, alcohol or medications.
2. Avoid wearing clothes or jewellery entangled with a tool’s moving parts. Keep long hair covered or bound.

Specific Safety Precautions

1. Use the correct pocket hole jig for the job. This jig was designed for a specific function. Do not modify or alter it or use it for an unintended purpose.
2. Keep body parts away from pinch areas while using.
3. Children are not allowed to operate this product unless accompanied by an adult.
4. Pay attention to safety during use to avoid crushing fingers.

WARNING! DO NOT let comfort or familiarity with the product (gained from repeated use) replace strict adherence to the tool safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

Pocket Hole Jig Model and Parameters

Structure Diagram

Assembly and Use

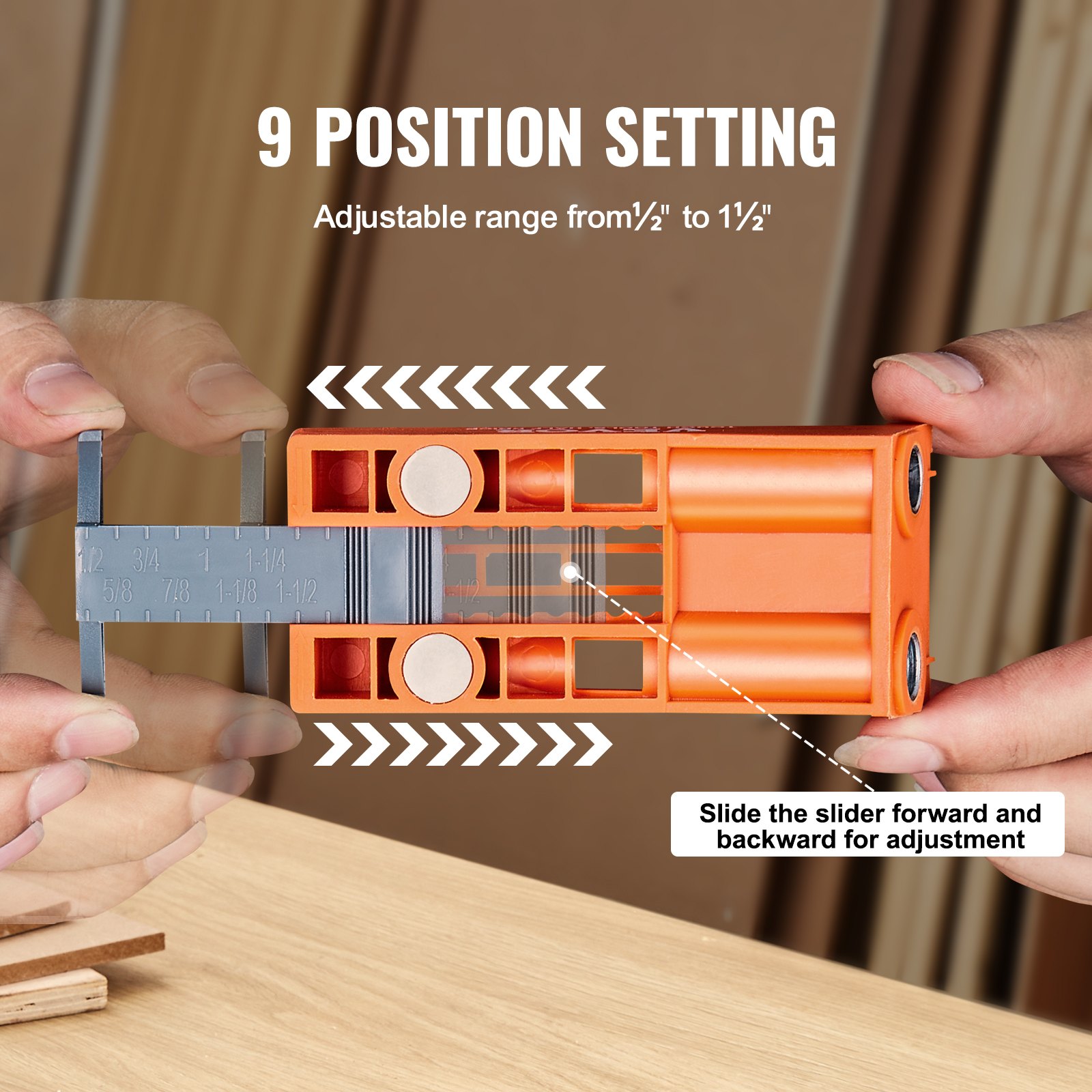

1. Adjustable Thickness Setting

Measure the thickness of your board. You can quickly adjust the slider’s location according to the board’s thickness.

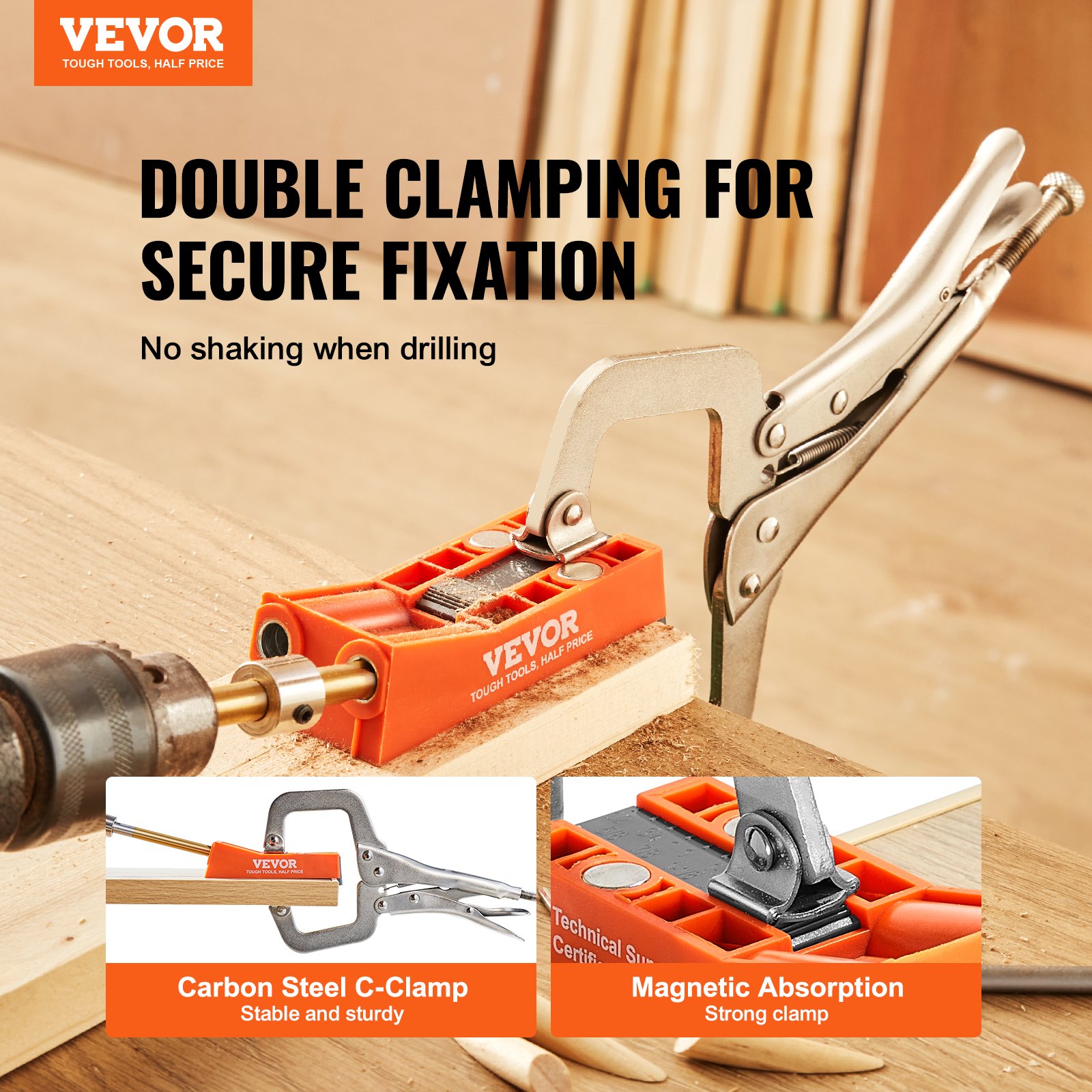

2. Quick Fixture

The bolt adjusts the pliers’ opening size (slightly less than the thickness of the plate and fixture combined). Pulling the trigger fixes the clamp.

3. Adjust the depth of the hole

The stop collar is locked on the drill bits at a position equal to L1, as shown.

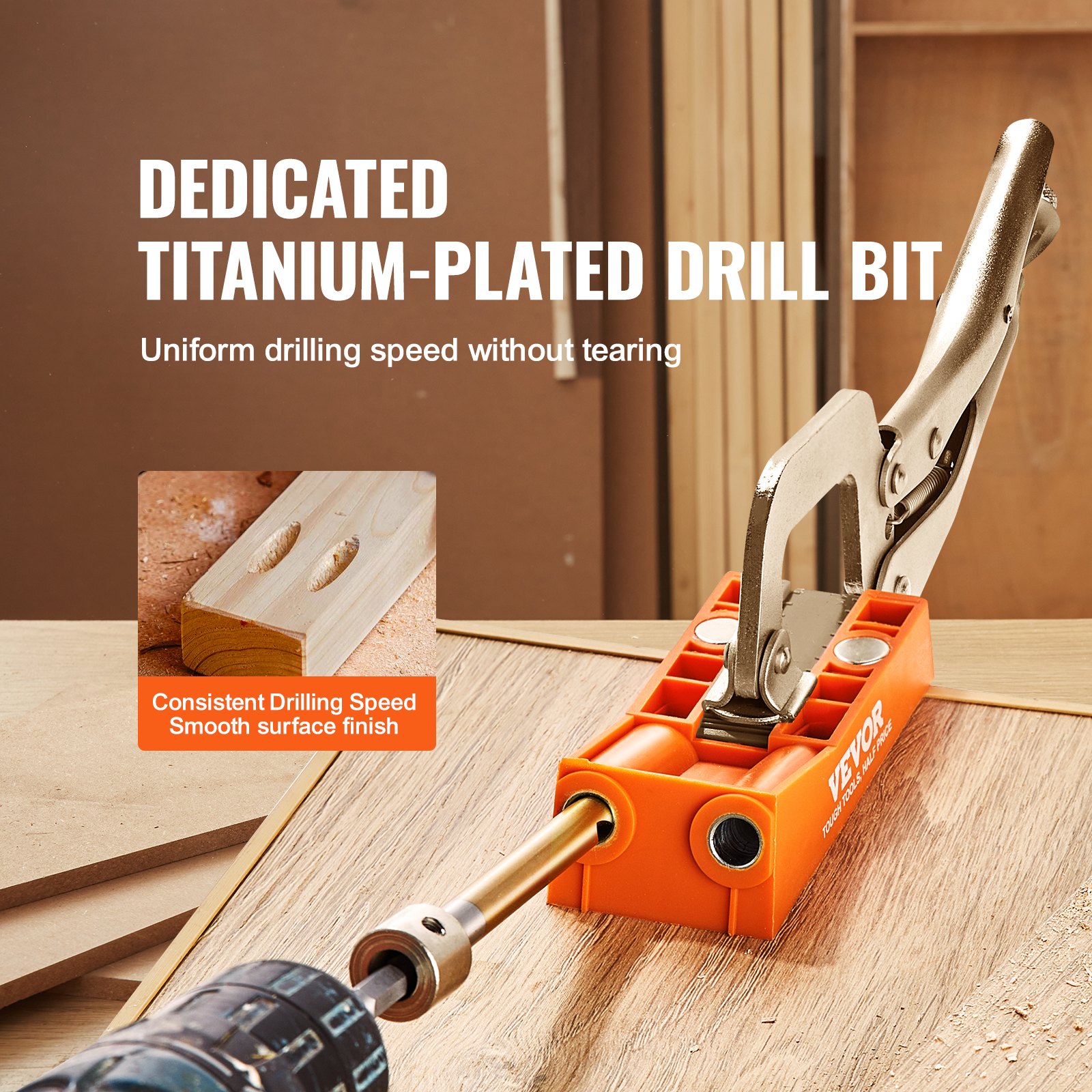

4. Drill hole

Drill depth of hole depth until the brake ring stops.

Note that the direction of the drilling force is parallel to the pilot hole. Continuous operation for a long time will lead to the pilot hole heating and a disadvantage to the lifetime.

5. Quick Release

6. Screwing

Troubleshooting Instruction

Pocket Hole Jig Maintenance

1. Make sure that the drill is parallel to the direction of force. The hole sleeve is not easy to wear.
2. Wipe the anti-rust oil after using the drill to avoid rust.
