VEVOR Laser Level User Manual

MODEL: GK011G/R

Safety

WARNING:

• Read the Safety Instructions and User Manual thoroughly before using this product. All users must fully understand and adhere to these instructions.

CAUTION:

• While the product operates, avoid exposing your eyes to the emitting laser beam (red light source). Exposure to a laser beam for an extended time may be hazardous to your eyes.

CAUTION:

Some laser tool kits may include glasses. However, these are NOT certified safety glasses. They are ONLY used to enhance the beam’s visibility in brighter environments or at greater distances from the laser source.

WARNING:

The following label/print samples are placed on the product to inform the laser class for your convenience and safety.

• Do not stare directly into the beam, view with optical instruments, or set up the laser at eye level.
• Do not disassemble the laser tool. There are no user-serviceable parts inside.
• Do not modify the laser in any way. Modifying the tool may result in hazardous laser Radiation Exposure.
• Do not operate the laser around children or allow children to operate the laser. Serious eye injury may result. Exposure to the beam of a Class 2 laser is considered safe for a minimum of 0.25 seconds.
  Eyelid reflexes will normally provide adequate protection.

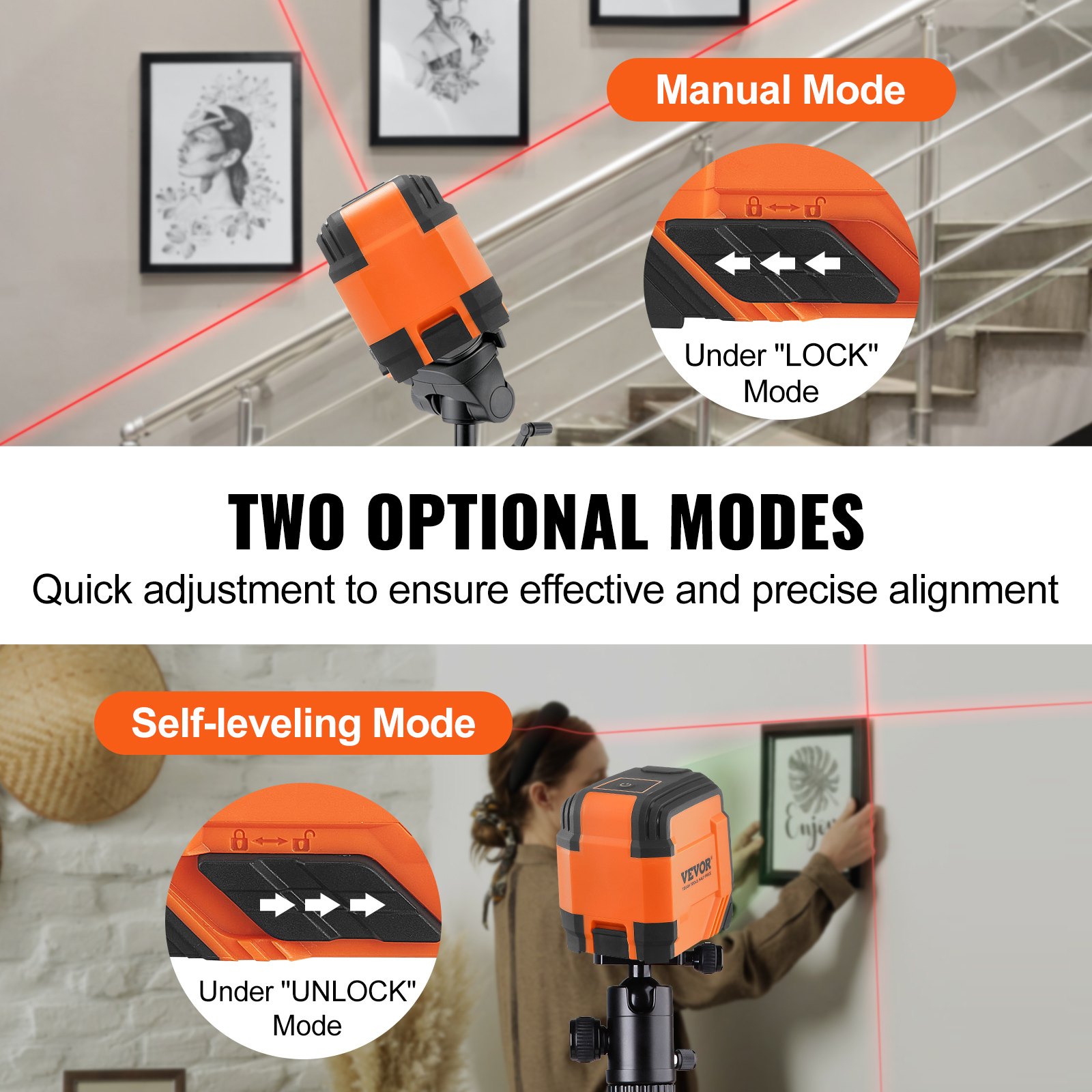

Laser Level Operation Modes

General Notes

Press or slide the locking switch to turn the laser tool ON; short-press to turn the laser tool OFF when the laser tool is locked with a pendulum.

Press repeatedly to cycle through the available modes.

Self-leveling Mode

Is enabled when the laser tool is switched to the unlocked position.

Its laser beam(s) blink fast at 2 Hz when the tool is out of the self-leveling range, allowing proper use of the tool’s full-time pulse mode with the laser detector.

Manual Mode

• It is enabled when the pendulum lock is locked to position the laser tool at various angles to project non-level straight lines or points.
• Disables self-leveling operations; the beam’s accuracy is not guaranteed to be level, and the laser beam(s) will blink about every 5 seconds.

User Guide, Maintenance and Care

• The laser tool is sealed and calibrated at the plant for specified accuracy.
• It’s recommended to carry out an accuracy check before its first use and periodic checks during future use, especially for precise layouts.
• When not in use, please power OFF the tool and place the pendulum lock in its locked position.
• In Manual Mode, self-leveling is OFF. The accuracy of the beam is not ensured to be level.
• • Do not short any battery terminals, charge alkaline batteries, or dispose of batteries in a fire.
• Do not mix old and new batteries. Replace all of them at the same time with new batteries of the same brand and type.
• Keep batteries out of reach of children.
• Remove batteries if the tool will not be used for several months.
• Do not store the laser tool in direct sunlight or expose it to high temperatures.The housing and some internal parts are made of plastic and may deform at high temperatures.
• Exterior plastic parts may be cleaned with a damp cloth. Although these parts are solvent-resistant, NEVER use solvents. Use a soft, dry cloth to remove moisture from the tool before storage.
• • Store the tool in its case when not in use. If storing for an extended time, remove batteries before storage to prevent possible damage.
• • Do not dispose of this product with household waste.
• • Always dispose of batteries per local code.
• • Please recycle according to local provisions for collecting and disposing of electrical and electronic waste under the WEEE Directive.

Laser Level Specifications

• Laser Class: Class 2 (IEC/EN60825-1/2007)
• Laser Wavelength: 635±5nm

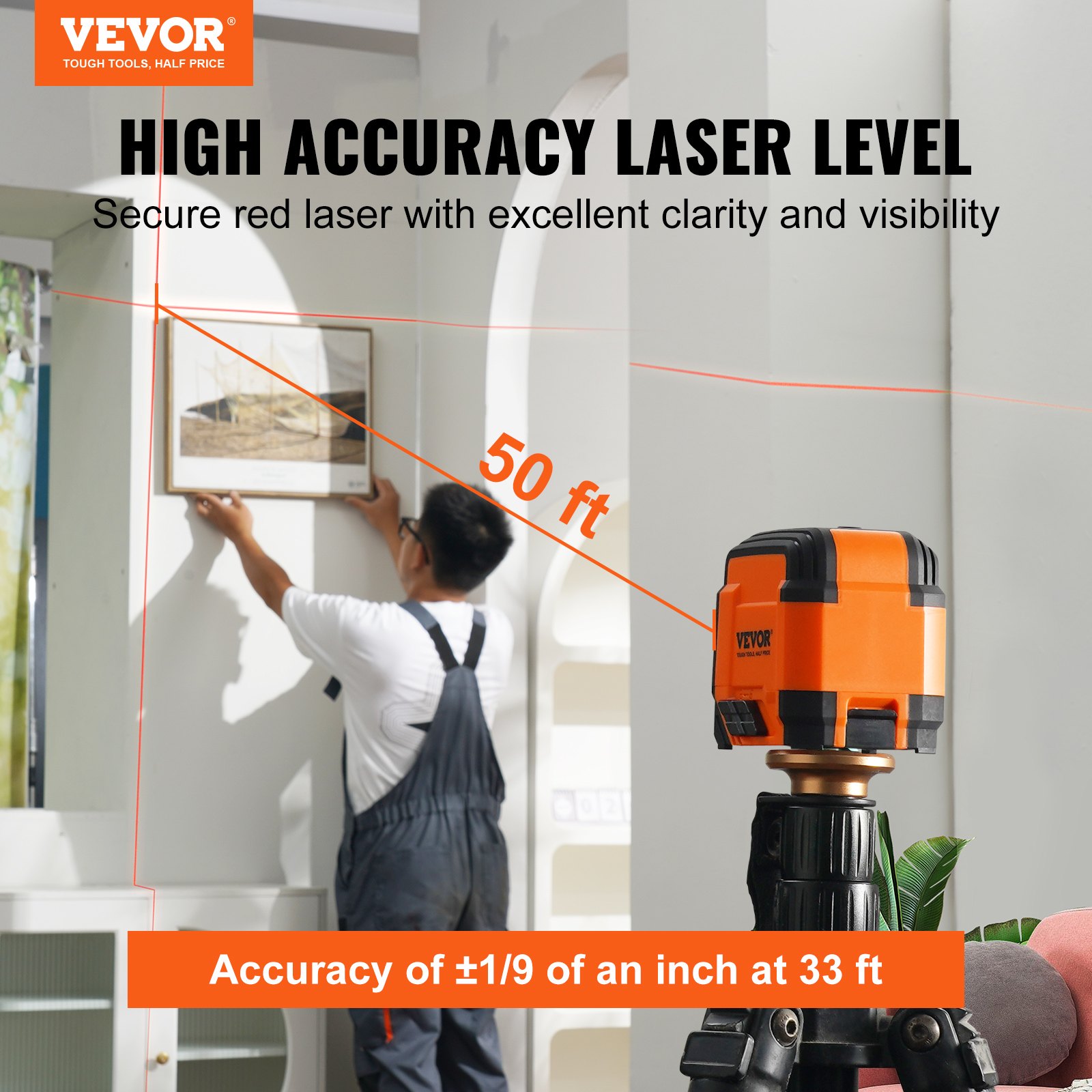

• Leveling Accuracy: ±4.5mm/15m
• Horizontal/Vertical Accuracy: ±4.5mm/15m
• Leveling/Compensation Range: 4°±1° Up Plumb Accuracy: N/A
• Down Plumb Accuracy: N/AWorking Distance (Dot): N/A
• Working Distance (Line): 20m

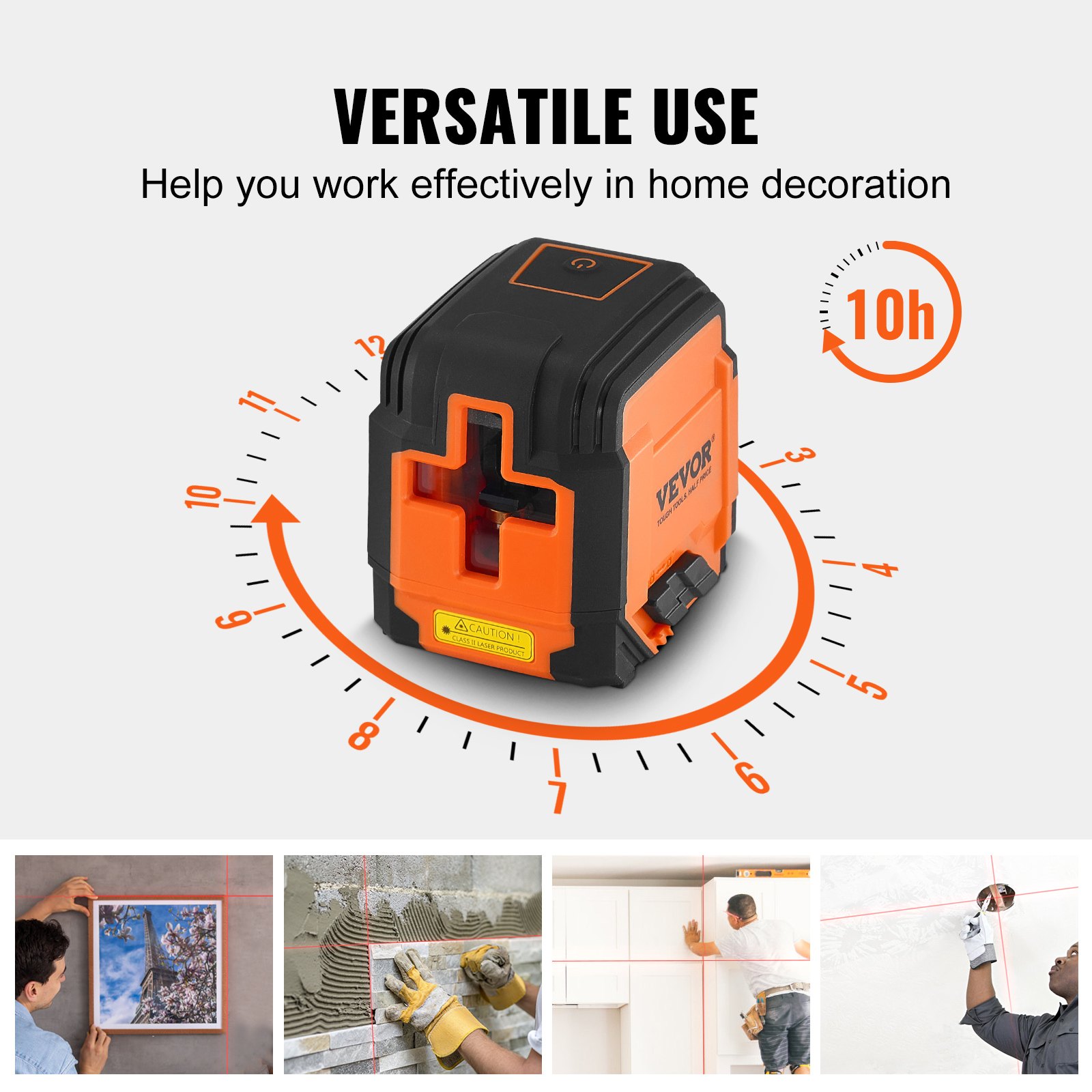

• Operating Time: 10 Hours
• Power Source: 2×˝AA˝ (LR6)

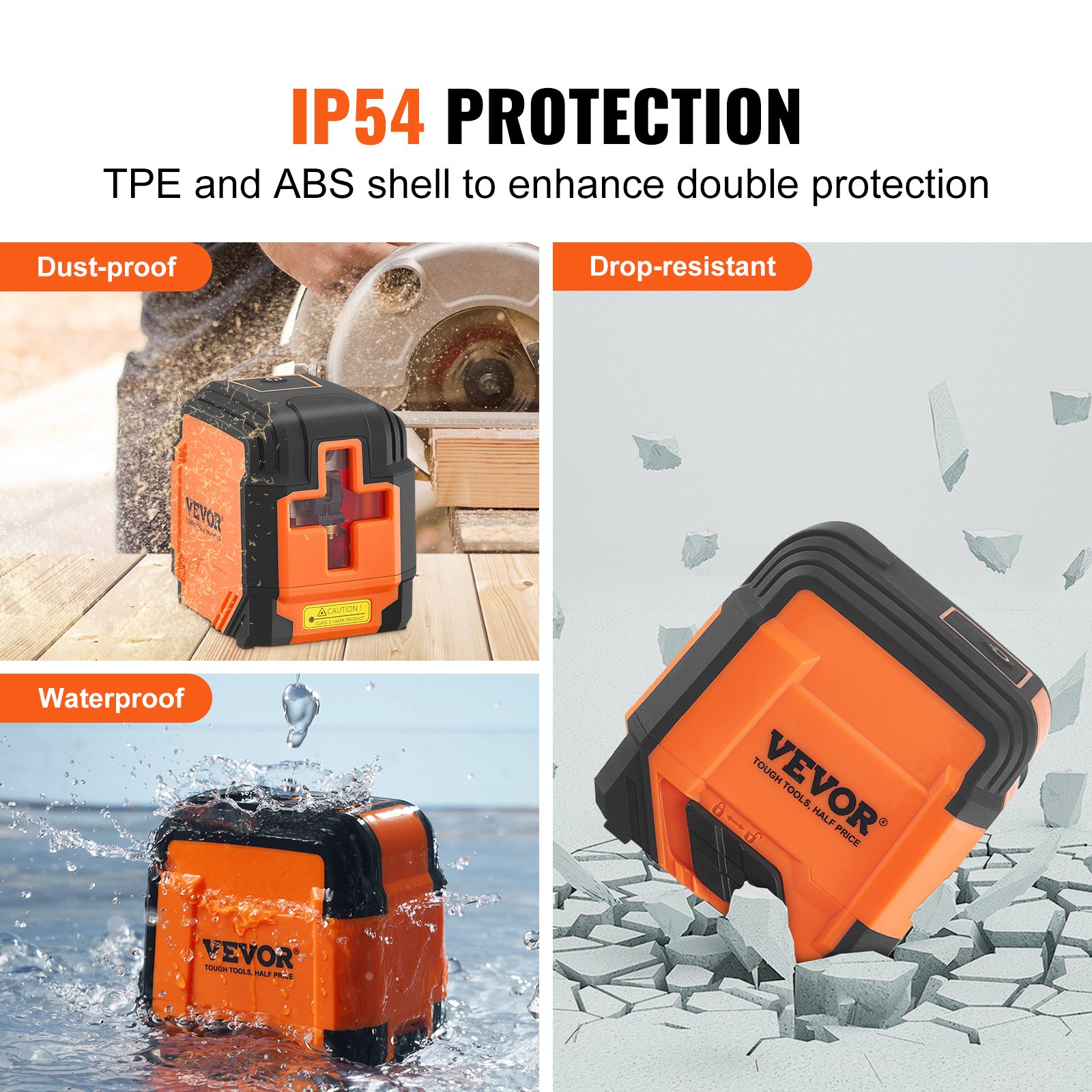

• IP Rating: IP54
• Operation Temperature Range: -10℃– ＋50℃
• Storage Temperature Range: -25℃ – ＋70℃

VEVOR Laser Level Warranty

We are confident of the quality of our products and offer an outstanding guarantee for professional users of the products. This statement is in addition to and in no way prejudices your contractual rights as an experienced user or your statutory rights as a private non-professional user. We warrant our laser level(s) against faults in materials and/or workmanship for one year from the date of purchase, provided that:

• Proof of purchase is produced.
• Unauthorized persons have not attempted service/repairs.
• The product has been subject to fair wear and tear.
• The product has not been misused.

Defective products will be repaired or replaced, free of charge or at our discretion, if sent to our authorized distributor(s) with proof of purchase. This Warranty does not cover faults caused by accidental damage, unfair wear and tear, or use other than following the manufacturer’s instructions, or repair or alteration of this product not authorized by us.

Repair or replacement under this Warranty does not affect the expiry date. To the extent permitted by law, we shall not be liable under this Warranty for indirect or consequential loss resulting from faults in this product. This Warranty may not be varied without our authorization. Calibration and care are not covered by warranty.

NOTE:

• The customer is responsible for correctly using and caring for the tool. Moreover, the customer is completely responsible for periodically checking the accuracy of the laser and, therefore, for the tool’s calibration.
