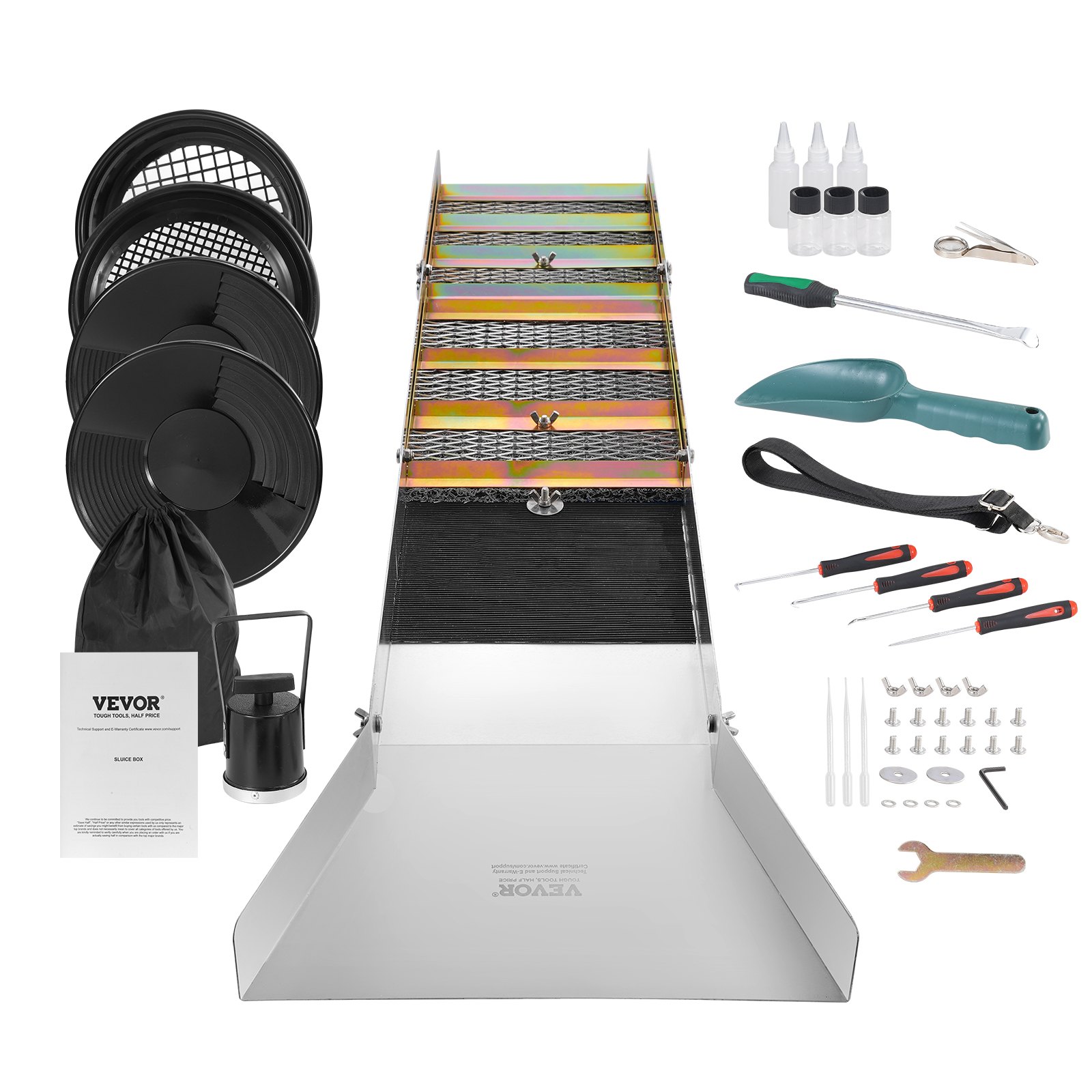

VEVOR 50 Inch Folding Sluice Box Gold Panning Kit, 23pc Manual

Unlock the full potential of your gold prospecting adventures with the comprehensive VEVOR 50 Inch Folding Sluice Box Gold Panning Kit manual. This detailed guide is designed to make the setup, operation, and optimization of your 23-piece gold prospecting equipment kit a breeze. Whether you’re a novice or an experienced prospector, our user-friendly manual provides step-by-step instructions, troubleshooting tips, and expert advice to help you maximize your efficiency and gold recovery.

The VEVOR 50 Inch Folding Sluice Box Gold Panning Kit manual covers everything you need to know, from assembling your sluice box and using the gold pan to effectively utilizing the classifier screen and separating magnet. It also offers insights into the best practices for maintaining and storing your equipment, ensuring longevity and optimal performance. This indispensable resource is designed to provide you with a seamless gold prospecting experience, making it an essential download for anyone serious about gold panning.

Download your VEVOR 50 Inch Folding Sluice Box Gold Panning Kit manual now and take the first step towards a more organized, efficient, and successful gold prospecting journey!

VEVOR Folding Sluice Box User Manual

Thank you very much for choosing this Sluice box. Please read all of the instructions before using it. The information will help you achieve the best possible results.

WARNING:

1. Operate in a safe work environment. Keep your work area clean, well-lit, and free of distractions.

2. This product is not a toy or a toy chest. Do not allow children to play with or near this item.

PORTABLE DESIGN: The sluice box is designed with lightweight aluminum box construction. It is lightweight and has comfortable, easy-to-carry handles. It helps you carry it with you and change location any time you want.

EFFORTLESS USE: Everything can be packed in your backpack, ready to deploy. All you need to do is ensure your sluice box is level in the field. When extended in stream, the sluice box body is designed to lock rigidly in place so that when removed, it does not fold up and collapse without warning.

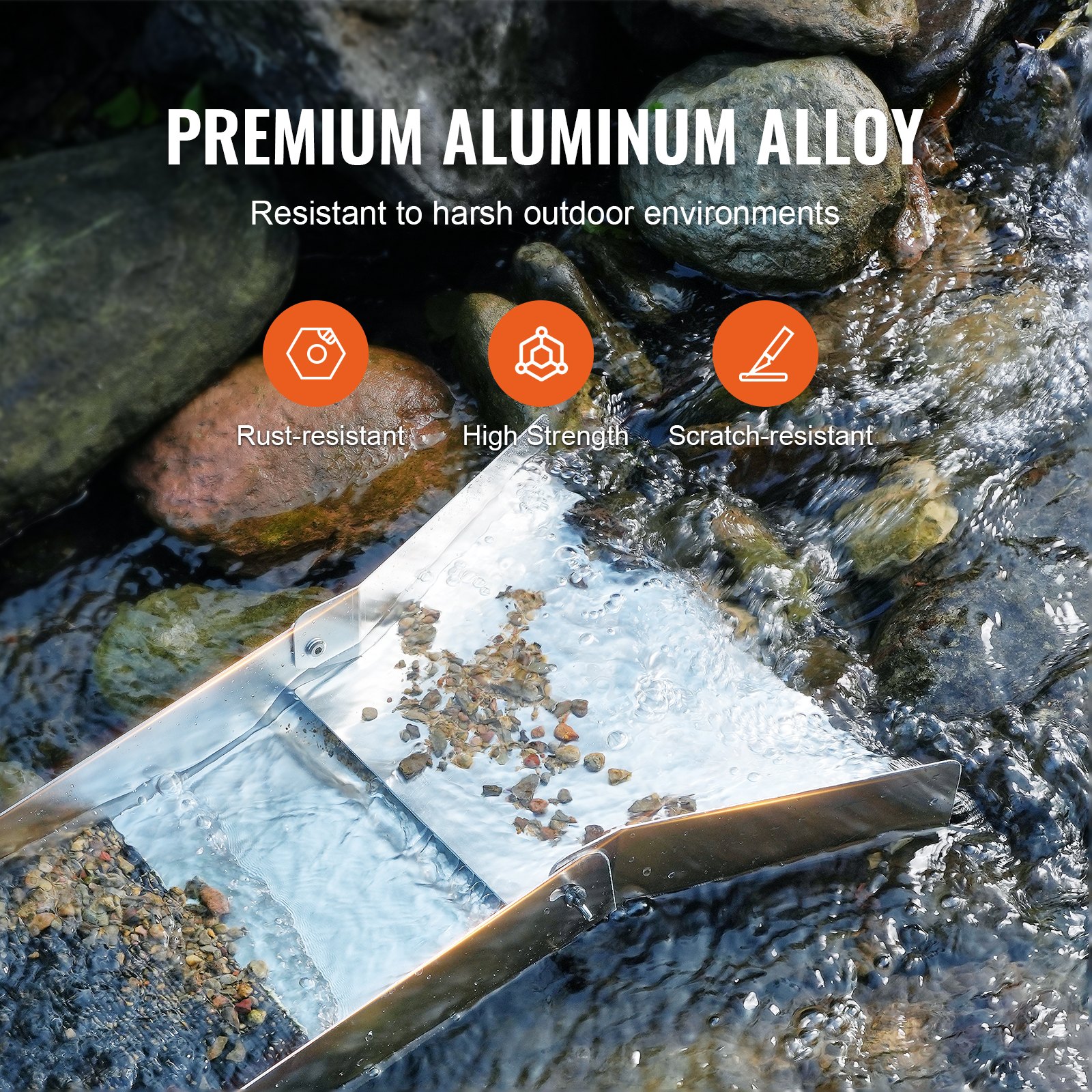

DURABLE CONSTRUCTION: Made to be used and designed to be portable, the Backpack Sluice Box for Gold Recovery is lightweight and made from highly durable, rust-free aluminum. It will surely withstand the harshest environments.

HIGH-YIELD GOLD RECOVERY: 18-Gauge steel zinc-plated riffles are built into the sediment channel, creating water turbulence that traps gold flakes and small gold flour in the woven vinyl miners moss, which is pre-installed and ready to use out of the box

SPECIFICATIONS: Extended Dimensions: 30″ Length; 30″ x 8″ x 3″ weight at 5 lbs; comes with carpet and woven vinyl miners moss.

SPECIFICATIONS: Extended Dimensions: 30″ Length; 30″ x 8″ x 3″ weight at 5 lbs; comes with carpet and woven vinyl miners moss.

Folding Sluice Box Models and Parameters

Assembly and Use

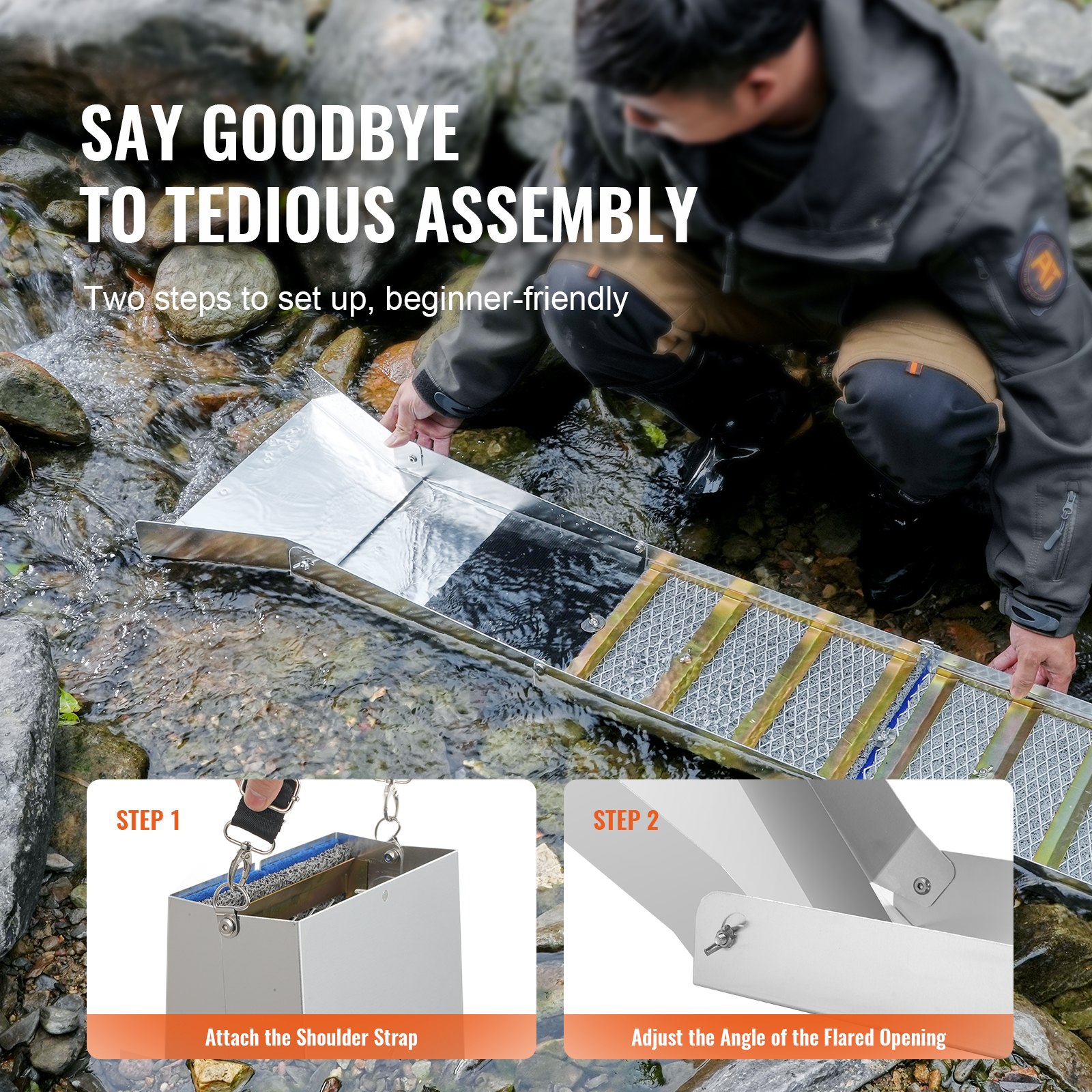

Set-Up

1. From new: Remove handle and bolt to the side with the provided screws.
2. Unscrew the wing nut and remove the flare from the unit’s center. Secure the same wing nut on the centre stud.
3. Place flare on feeder end and fasten with screws and wingnuts provided.
4. Your unit is now fully assembled.

Unit Placement

1. For the unit to operate correctly. As a suggestion, adjust the feeder to be 2 1/2 inches higher than the back end.
2. Place the unit in shallow water, no more than the height of the sides
3. Place a shovel full of material in the feeder, and the material should immediately start flowing down the sluicebox 50% of the material is trapped behind riffles while the other 50%washesdown stream. (This is the proper flow & angle when this is achieved.)

Note: Water flow is too slow if the unit fills with sand and gravel—you must increase your water flow, angle, or both to achieve the 50% being trapped and the 50% going downstream.

Removing Gold

1. Lift the unit from the water.
2. Loosen the wing nut and remove the riffle and expanded metal.
3. Remove the carpet by rolling it up with the ribs facing inward. Place rolled carpet in a bucket filled with clean water to release gold concentrates. Roll the rug in the opposite direction and repeat.
4. Pan concentrates from the bottom of the bucket.

Reassembling

1. Replace the carpet in the unit.
2. Replace the expanded metal over the carpet, ensuring it is level with the end of the unit. Please see the picture below to ensure proper placement of the expanded metal. (It is possible to put it in backwards.)
3. Place the riffle assembly over the expanded metal.
4. Expanded metal and riffle should be at t same angle.
5. Tighten with the wing nut provided.

Storing Unit

1. Make sure the carpet is dry before storing the unit.
2. Remove feeder and replace screws and nuts in holes on feeder and return to center stud for storage.

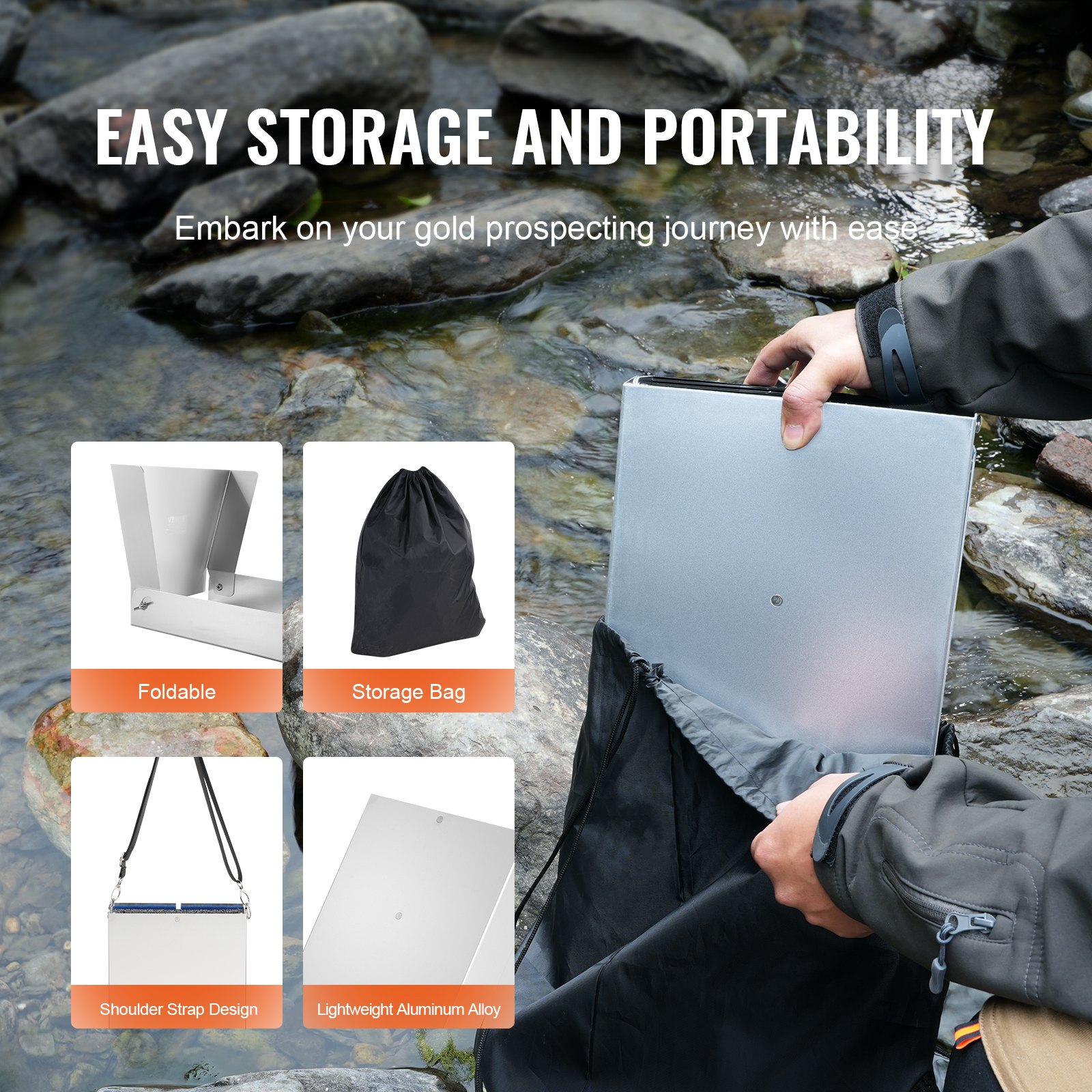

The 3-piece folding design makes it extremely portable. By loosening the connecting wing nuts, you can fold it down inside, and it will pack right up into your backpack or 5-gallon bucket. You’re ready to prospect for gold right out of the package.

No assembly required.

The newly designed Outdoor Gold Sluice Box Folds Aluminum Portable Gold Prospecting, 50 Inches. The lightweight aluminum sluice box weighs just 7.5 lbs and folds up to 15″ x 9″, making it highly portable by tightening the locking wingnuts.

This takes care of the most common complaint about similar, cheaper models: They would often fold up when you tried to pick them up out of the stream. This allows for easy portability, so you can backpack this gold panning sluicebox into any river, stream, creek, or remote area anywhere.

This product is ideal for experienced miners, beginner gold panning enthusiasts, and adults. It maximizes the efficiency of gold exploration and mining operations. Experienced prospectors and a professional team developed this product.

Maintenance

• Avoid prolonged exposure to the sun to avoid aging.
