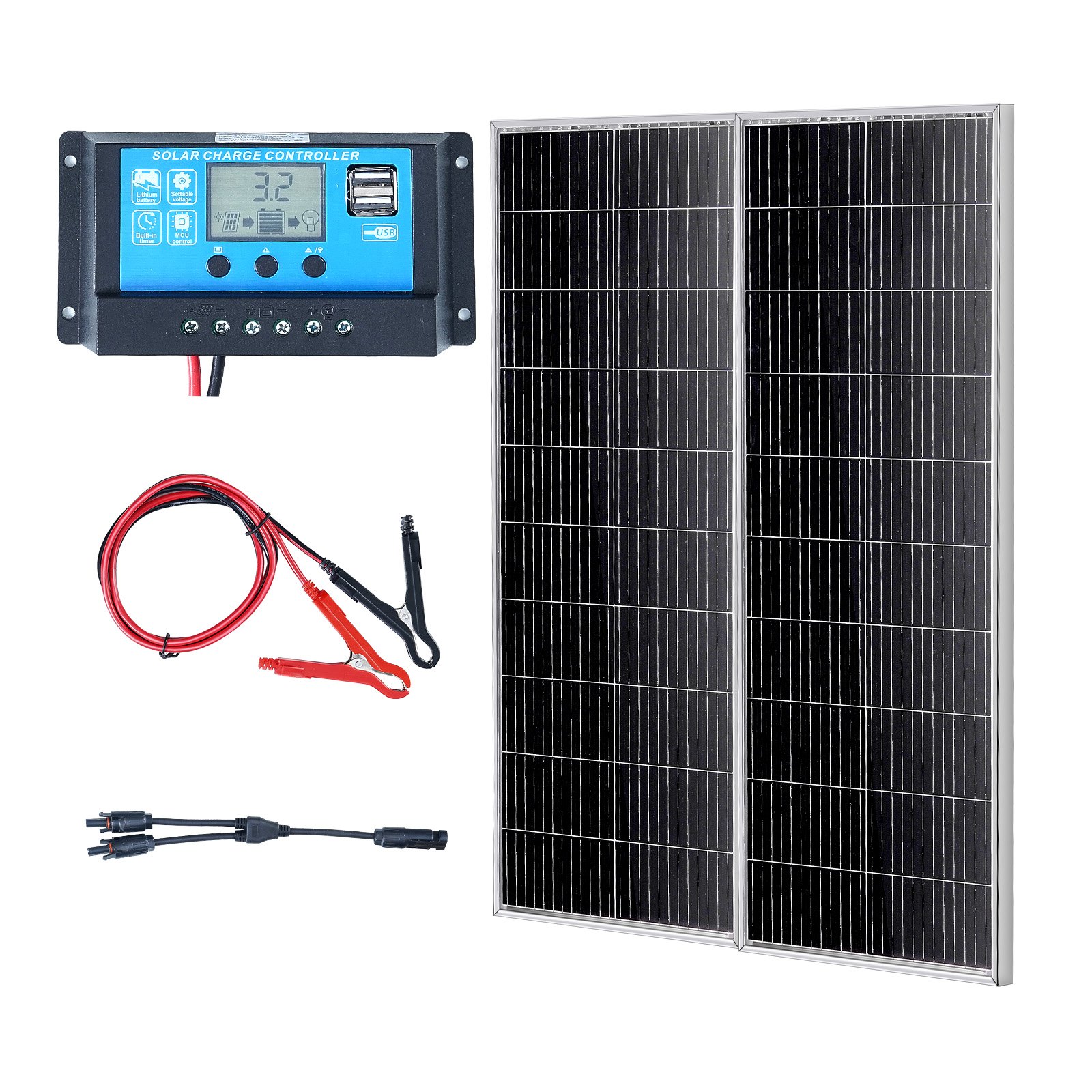

VEVOR Monocrystalline Solar Panel Kit

MODEL: S100

Please read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNINGS

• Continuing to use it in abnormal situations, such as smoking or burning, may cause an electric shock or fire. It is necessary to disconnect the solar panel and connect the charging device immediately.
• If liquids such as water or foreign objects enter the USB charging port, please disconnect the solar panel and connect the charging device; otherwise, it may cause an electric shock or fire.
• Please do not continue to use this product after applying heavy crunch, which may cause an electric shock.
• Do not disassemble or refit this product, as it may cause an electric shock or damage.
• Do not place metal between this product and smartphone as it maycauseafire.
• To prevent accidents, please ensure that the charged solar panel and device can be immediately disconnected.
• Please do not use this product in the car, on the hood, or on iron products of the vehicle, in areas where high humidity may occur, such as asphalt or sand.
• Do not use near water, high humidity, or snow. (Note: The outer fabric and solar panel are waterproof, but the USB charging port is not. Therefore, for your safety, if you do not use this product for a long time, be sure to disconnect the solar panel and connect the device being charged.)
• When cleaning the solar panel, disconnect the adapter cable and the charged device. Keep this product away from children.
• Keep this product away from your children.
• Soaking the adapter cable may damage it, which may cause a fire or electric shock.
• The product or smartphone may generate heat when charging, but this is caused by product characteristics and not a product malfunction. Turning on the device’s power can still charge even in standby mode, but in this case, the charging time may be longer; it is normal.
• Please do not put anything on the solar panel, do not press it, bend it, pull it, or damage it.
• Do not stick stickers on or cover the solar panel with cloth, as this can damage, fire, or deform the device that charges in direct sunlight.

Please hide the object to be charged under the product or avoid direct sunlight. The charging rate depends on the intensity and angle of the sun. Please note that the charging quality may not meet your needs. The provided data is theoretical, and the actual output will vary depending on the intensity of sunlight.

Except for this product, all other accessories must be purchased by oneself.

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This product may cause harmful interference.
2. This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user’s authority to operate the product.

Note: This product has been tested and found to comply with the limits for Class digital device according to Part 15 of the FCC Rules.

These limits are designed to protect reasonably against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy, and if not installed and used per the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that
Interference will not occur in a particular installation.

Suppose this product causes harmful interference to radio or television reception, which can be determined by turning the product off and on. In that case, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and the receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

CORRECT DISPOSAL

This Monocrystalline Solar Panel Kit is subject to European Directive 2012/19/EU provisions. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol.

Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

SPECIFICATIONS

Reliable Quality

• Linear power technology is used.
• High conversion rate, high efficiency output.
• Excellent low-light environment power generation performance.
• High light transmittance quality tempered glass.
• High strength aluminum alloy frame, durable.
• The unique process makes the components both beautiful and easy to install.
• Unique technology to avoid freezing and deformation of water in the frame
• Packaging can be individually designed and customized according to customer needs
• Suitable for outdoor, mountain, water, and other application conditions.

Monocrystalline Solar Panel Kit Dimension figure

OPERATION

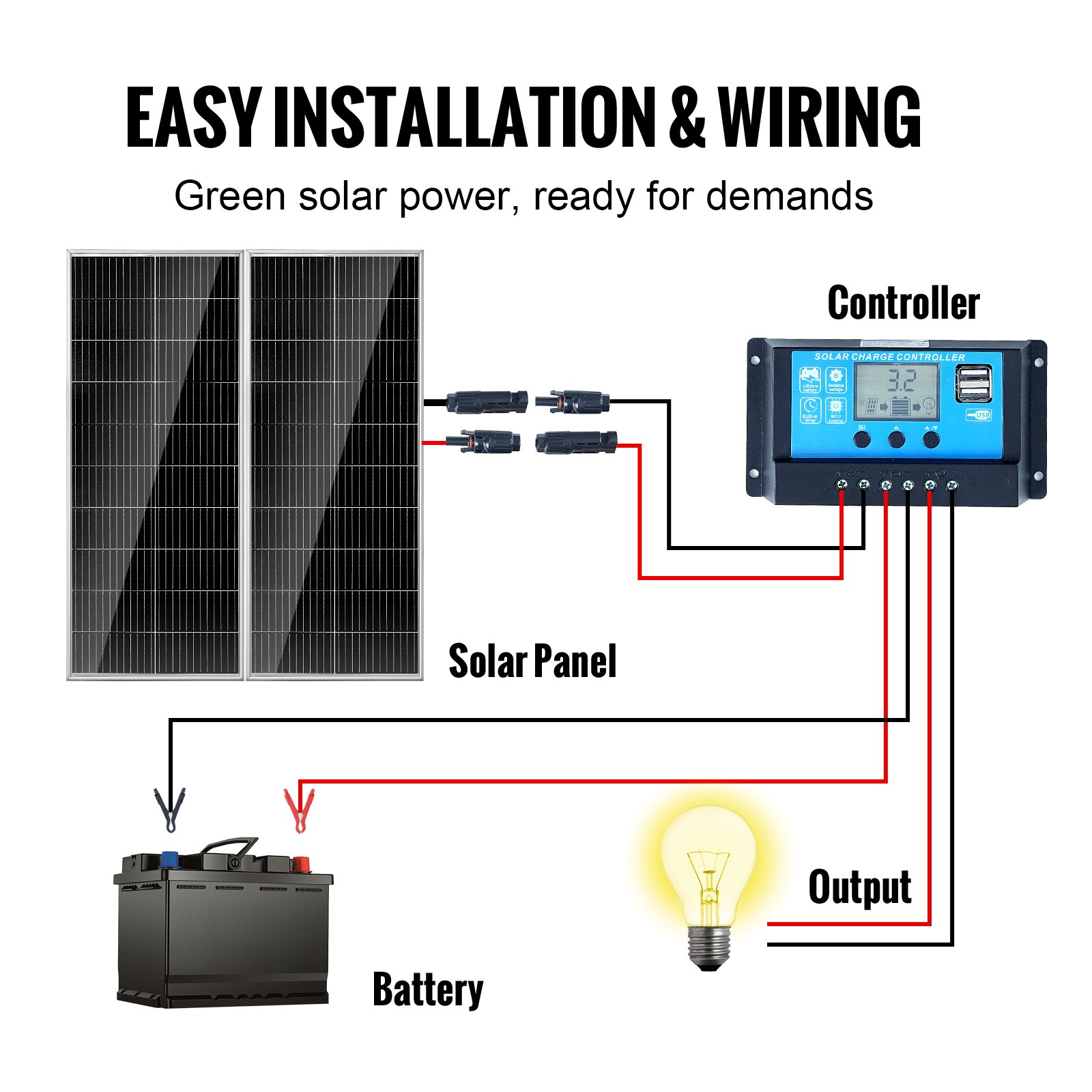

Additional accessories for a 12V fully charged solar panel kit

• 12V Charge Controller
• 12V Battery ( Pls make sure your battery voltage is higher than 10.8 volts before connecting to the charge controller, and the safe charging voltage of the battery is below 13.86 volts )
• DC Load You Might Have

Monocrystalline Solar Panel Kit 200W parallel connection
