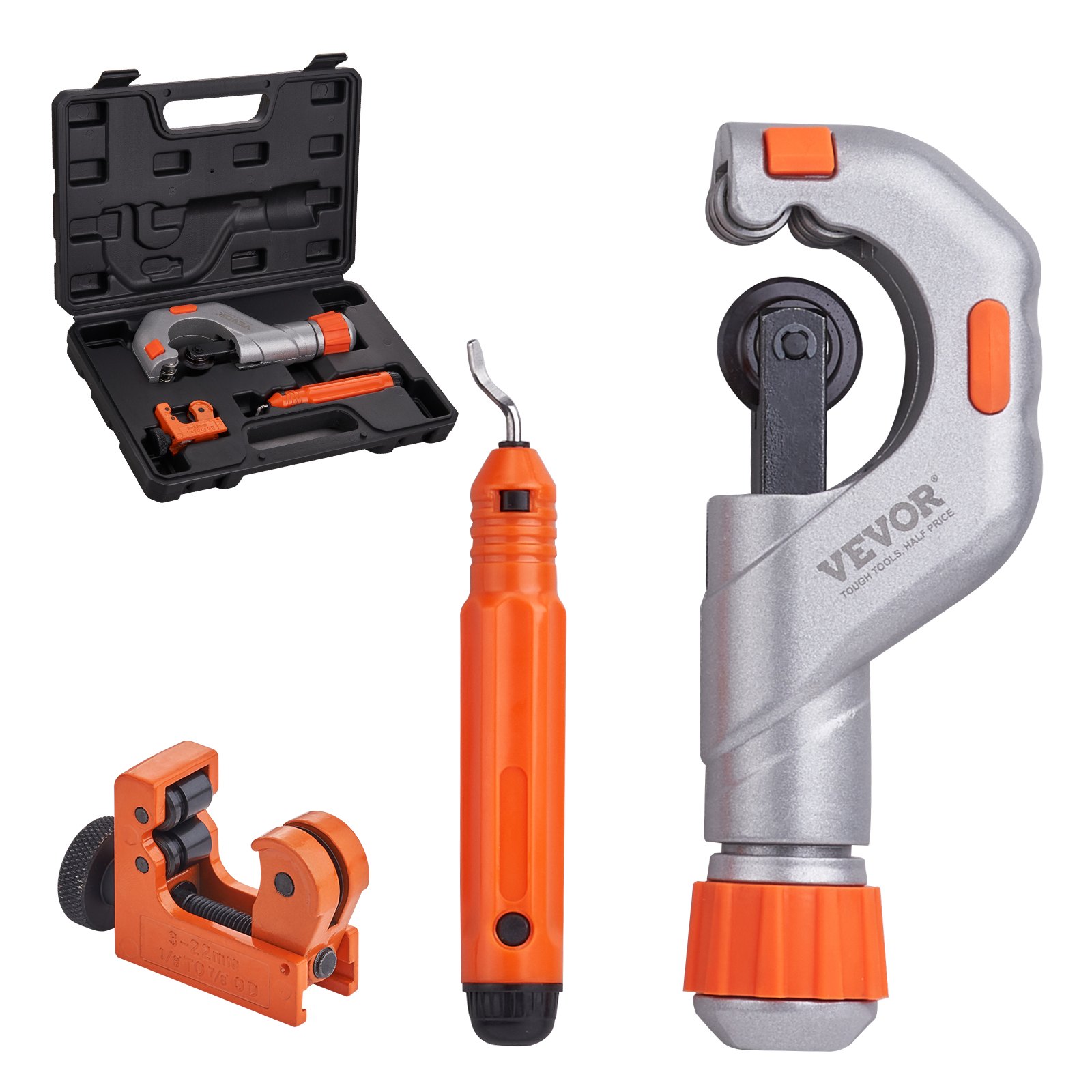

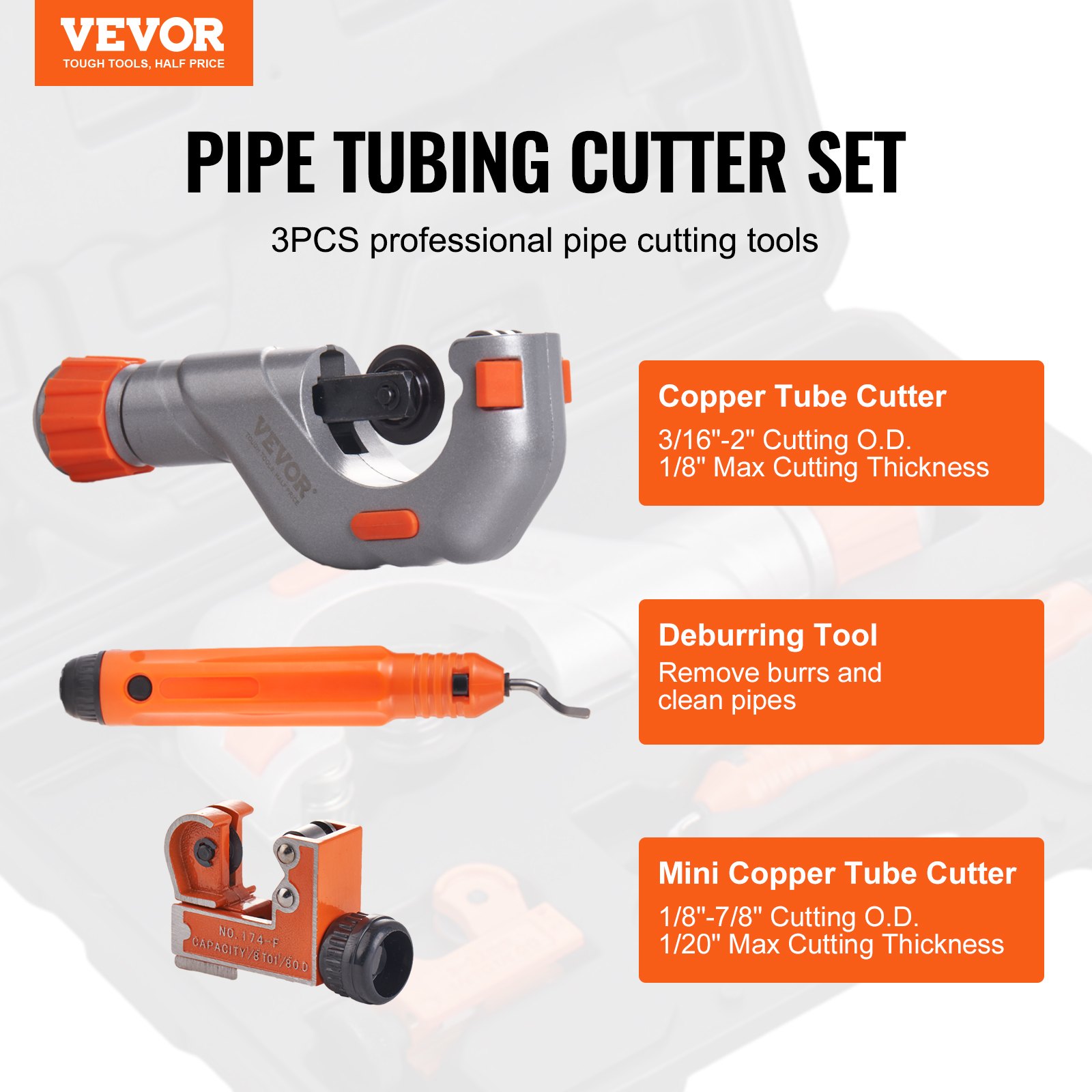

VEVOR 3PCS Tubing Cutter Set – Heavy Duty Pipe Cutter 3/16″-2″OD, Mini Tube Cutter 1/8″-7/8″ Manual

Unlock the full potential of your VEVOR 3PCS Tubing Cutter Set with our comprehensive product manual. Designed to cover every detail of the Heavy Duty Pipe Cutter (3/16″-2″ OD), the Mini Tube Cutter (1/8″-7/8″), and the Deburring Tool, this guide is your ultimate resource for setup, troubleshooting, and optimization. The VEVOR 3PCS Tubing Cutter Set is a professional-grade tool perfect for cutting stainless steel, copper, aluminum, and plastic pipes.

Our manual offers step-by-step instructions, clear diagrams, and expert tips to ensure you get the most out of your tubing cutter set. Whether you’re a beginner or an experienced handyman, you’ll find the information easy to follow and incredibly useful.

Download the VEVOR 3PCS Tubing Cutter Set manual today and take the first step toward mastering your toolset.

Model: CT-650

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us for not informing you again if there are any technology or software updates on our product.

PRODUCT OVERVIEW

CT-650 is engineered for straighter, cleaner cuts. A 6-Roller design delivers accurate cuts and prevents walking. For added durability and extended performance, chrome rollers provide the best-in-class rust protection. Tool-free blade change allows easy blade replacement on the jobsite.

TECHNICAL SPECIFICATIONS

Cuts Pipe Diameters：3/16″～2″

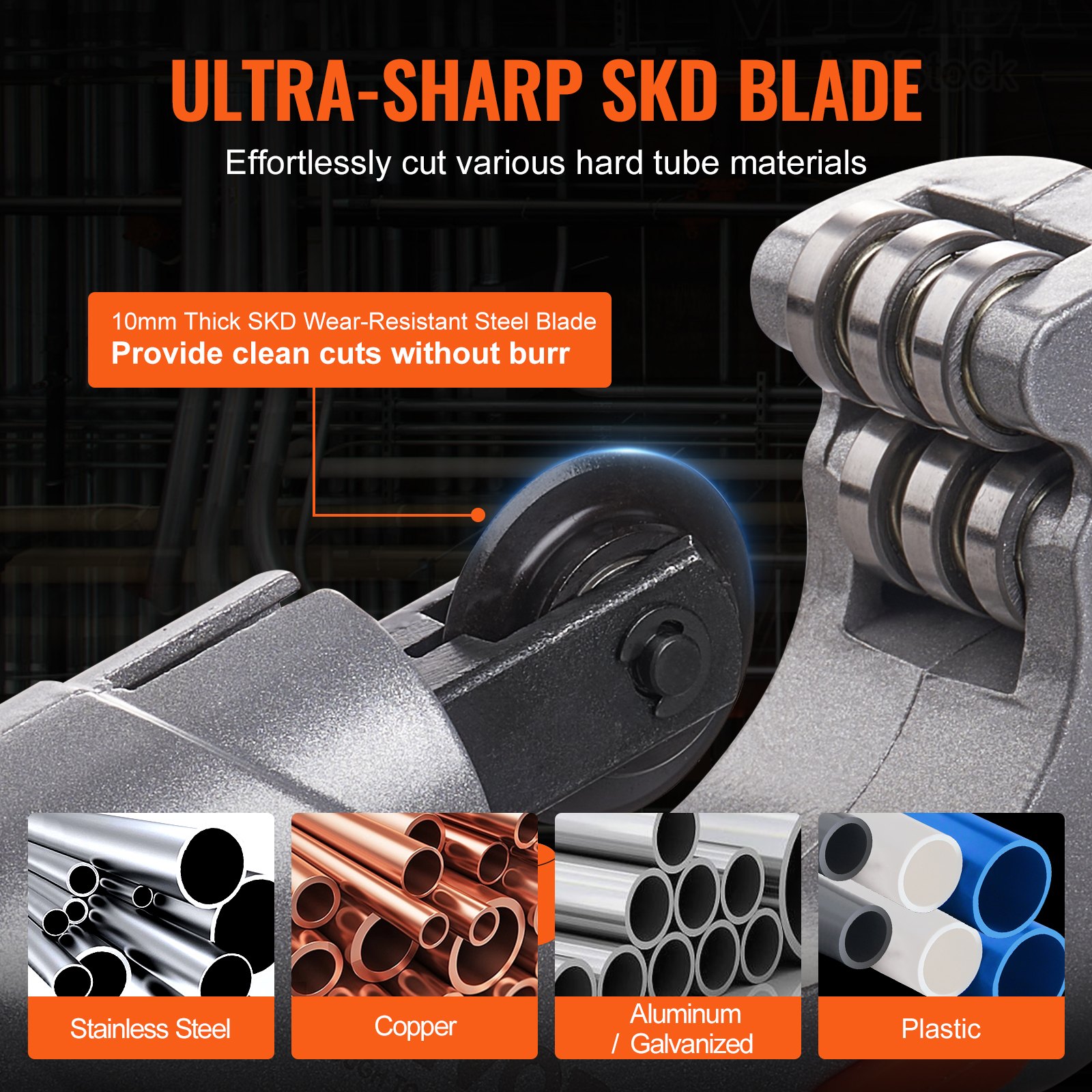

Application: Aluminum, Brass, Copper, Steel, Thin-wall Conduit
Gross Weight: 1.04 kg ±3%
Carton Size: 285*195*65mm ±6mm

SAFETY

Read and understand all instructions before using this tool. The operator must follow basic precautions to reduce the risk of personal injury and/or damage to the equipment. Keep this manual for safety warnings, precautions, operating, inspection, and maintenance instructions.

Please familiarize yourself with the hazard notices found in this manual. A notice means that property damage, injury, or death is possible if you don’t follow certain instructions..

WORK AREA

1. Operate in a safe work environment. Keep your work area clean, well-lit, and free of distractions.
2. Keep anyone not wearing the appropriate safety equipment away from the work area.
3. Store unused tools safely and dry them to prevent rust or damage. Lock tools away and keep them out of the reach of children.

PERSONAL SAFETY

WARNING! Always wear personal protective equipment. Broken materials may fly.

PERSONAL PROTECTIVE EQUIPMENT

1. Always wear impact safety goggles that provide front and side eye protection—eye protection equipment should comply with CSA Z94.3- 07 or ANSI Z87.1 standards based on the type of work performed.
2. Wear gloves that provide protection based on the work material, sort, or reduce the effects of tool vibration.
3. Wear protective clothing and tools designed for the work environment.
4. Non-skid footwear is recommended to maintain footing and balance in the work environment.

PERSONAL PRECAUTIONS

Control the tool, personal movement, and the work environment to avoid personal injury or damage to the tool.

1. Do not operate any tool when tired or under the influence of drugs, alcohol, or medications.
2. Avoid wearing clothes or jewelry as they can entangle with the tool’s moving parts. Keep long hair covered or bound.

SPECIFIC SAFETY PRECAUTIONS

1. Use the correct tool for the job. This tool was designed for a specific function. Please do not modify or alter this tool or use it for an unintended purpose.
2. Children are not allowed to operate this product unless accompanied by an adult.
3. Pay attention to safety during use to avoid crushing fingers.

WARNING! DO NOT let comfort or familiarity with the product (gained from repeated use) replace strict adherence to the tool safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

TUBING CUTTER SET OPERATING INSTRUCTIONS

Stick the tubing cutter in the appropriate position of the steel pipe to be cut off, twist the feed to adjust the cutter’s rotation in the cutting pipe, and there should be little resistance.

Please don’t make it too tight so as not to damage the cutter’s blade, which will affect the service life of the knife.

When the pipe is cut, you can feel the resistance. Turn 2-3 turns step by step, twist the feed to adjust and rotate once until the pipe you cut falls off.

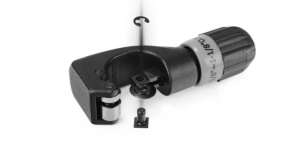

HOW TO EXCHANGE THE BLADE

Push the button. Remove the blade by drawing out the fixing screw. Insert the spare blade with the three points aligned when installing the blade. Insert the fixing screw and lock the button.

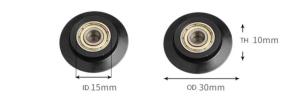

PIPE CUTTER BLADE

CAUTION

• Please warm up the pipe and the cutter blade before cutting if it is at a low temperature.
• Don’t cut cold pipes, as plastic pipes can be very fragile in cold temperatures.
• Please note that the blade is a consumable. Spare blades can be purchased separately.
• It is recommended that the blade be coated with anti-corrosion material (oil, etc.) after use. Please note that the pipe cutter is suitable for most plastic pipes, PVC pipes, PPR pipes, and PE pipes, but it may not be suitable for plastic pipes if a metal layer is inside.
• Please wear safety goggles when using the pipe cutter.
• Please keep the PVC cutter away from children.

MAINTENANCE/ SERVICE

• Have a qualified repair person service your tool using only identical replacement parts.
• A dusty, damp, or corrosive environment can cause damage to the mini-pipe Cutter.
• To prevent any failure or fault of this mini pipe cutter, clean the dust regularly with a clean and dry cleaning cloth.
• Please note that: Lack of maintenance may result in warranty cancellation.
• This tool’s guarantee will be void if the machine has been modified or if you attempt to take apart the machine or open the factory-made sealing without the consent of an authorized manufacturer representative.

DISPOSAL

• Dispose of this product per local regulations. If you are unsure how to proceed, contact your local authority.
• Only qualified technicians are authorized to undertake the repair of the minipipe Cutter.
• For your safety, please observe all safety notes, precautions, and details in this manual.

WARRANTY

1. This warranty shall only cover claims for damage due to a fault in the product’s manufacture.
2. If a warranty claim is made, the party entitled to warranty coverage must present the proof of purchase, including the purchase date.
3. Customer satisfaction is always the motivation for our brand growth. We promise to help you solve any issues other than the usual blade wear. Please just let us know if you need help.

OUR SERVICE TEAM PROMISES TO REPLY TO YOUR MESSAGE WITHIN 24 HOURS.

SCOPE OF WARRANTY

1. We guarantee that VEVOR products are produced according to ISO 9001 Quality Management procedures and are free of manufacturing defects for the warranty period.
2. This warranty covers product faults due to manufacturing defects within 1 year of purchase. After inspection by a sales representative, defective products will be replaced or repaired with equivalent goods free of charge.
3. Any warranty claim made during the warranty period shall not extend the overall warranty coverage period.
4. We don’t repair consumable parts like the blade. Don’t hesitate to contact your local representative to purchase new replacements.
5. Warranty periods: Warranty claim date.
