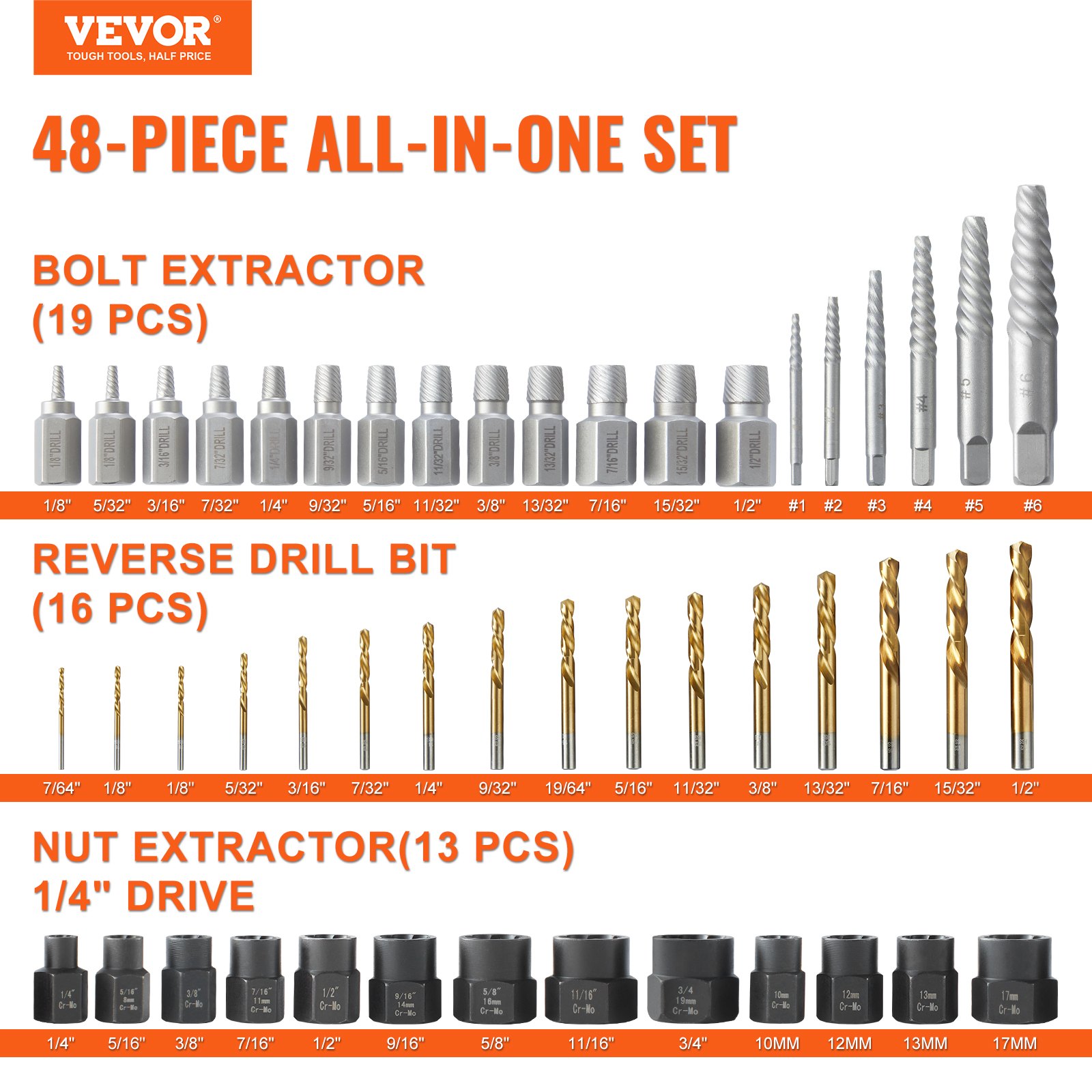

Versatile 48-Piece Set: Conquer various bolt and screw removal tasks effortlessly with this screw bolt extractor kit. This set includes 48 of the most commonly used and needed reverse drill bits, screw extractors, and bolt extractors, covering sizes from 1/8″ to 1/2″. It also includes 7/64″ and 1/8″ small-sized drill bits, bolt extractors #1 and #2, and a hex adapter, making it suitable for tasks like automotive repairs, home renovations, dismantling auto parts, and machine maintenance.

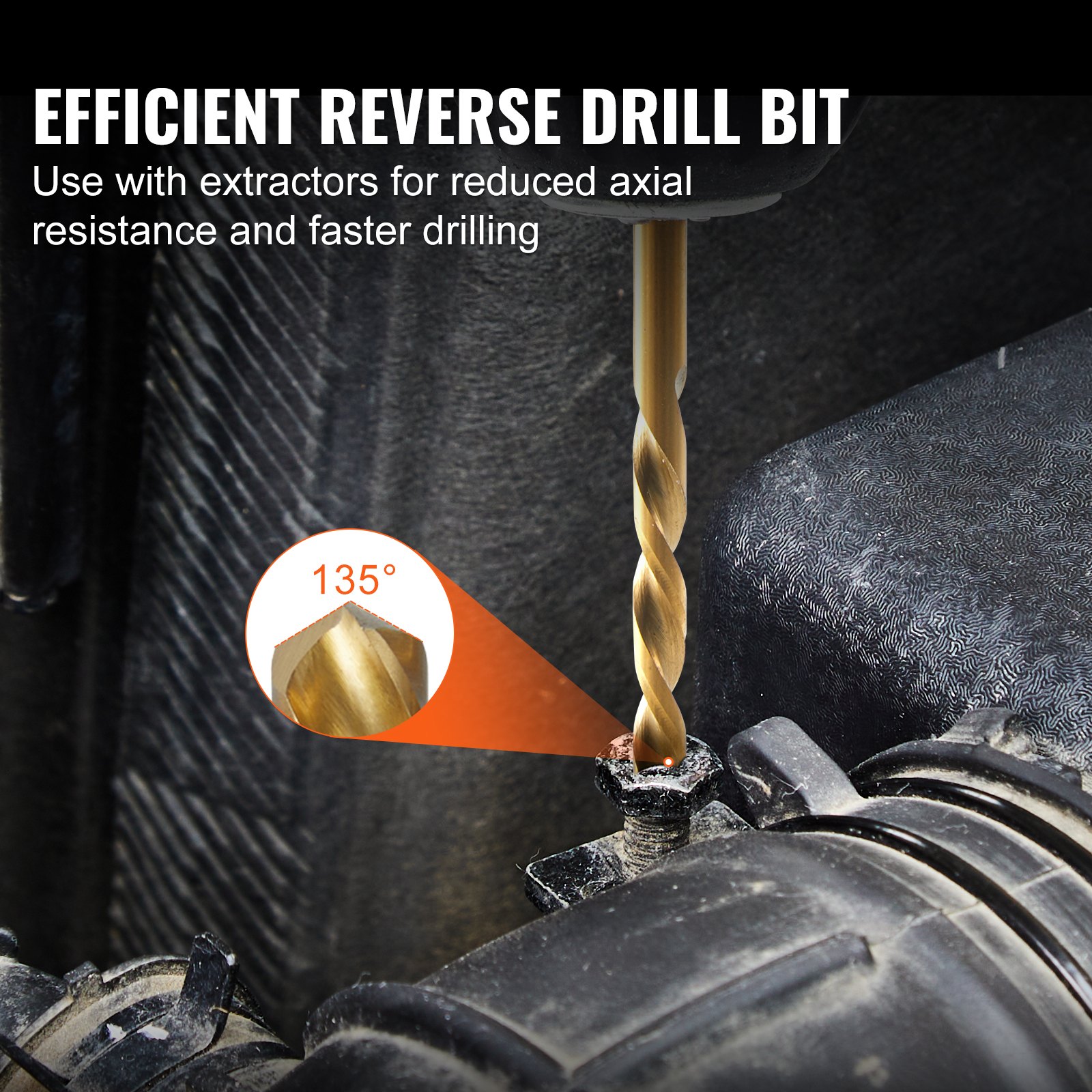

Efficient Drilling Bits: The 16 reverse drill bits are crafted from HSS high-speed steel, featuring a titanium-coated rust-resistant surface. They are durable and less prone to breaking, with a top-notch 135° angle for reduced resistance when tackling tough, rusty, or tight bolts and screws. They can easily penetrate metals, plastics, drywalls, and more.

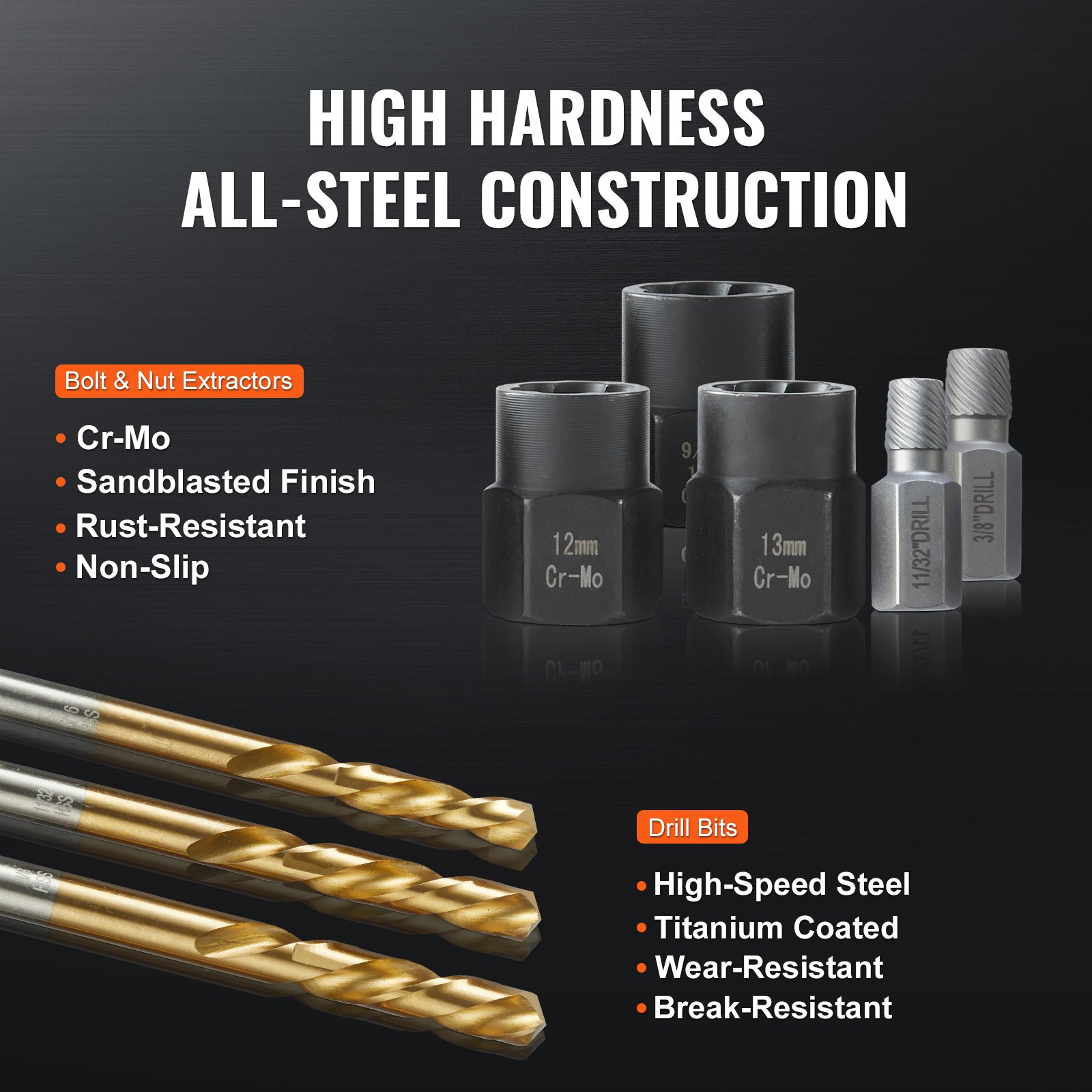

Cr-Mo Bolt Extractors: The 19 screw extractors and 13 bolt extractors are made from high-hardness, robust Cr-Mo steel material, and they are resistant to breakage. The sandblasted surface enhances wear resistance and rust resistance. The extractors are laser-engraved with sizes for easy identification and quick selection.

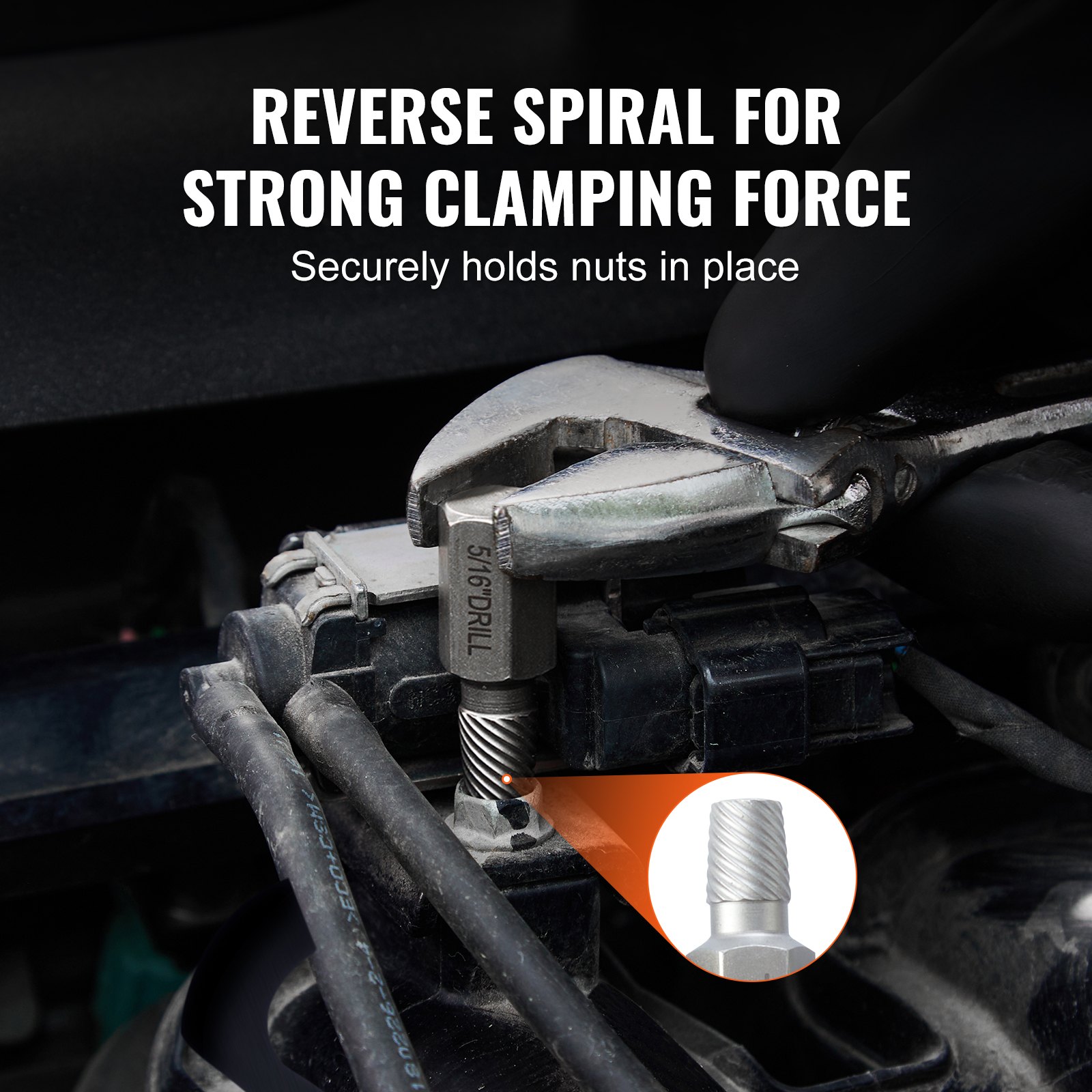

Non-Slip Design: Featuring a reverse spiral design that securely grips threads, the extractor set prevents slipping or loosening during operation. You can confidently use adjustable wrenches, power tools, ratchets, and more for efficient and rapid removal of broken or stripped bolts.
Waterproof Storage Case: The bolt extractor set comes with a waterproof PP case, providing organized storage for your tools. It’s easy to carry anywhere and ensures your tools are neatly stored, preventing them from getting lost, rusting, or getting damaged.

Description
Reviews (0)

Unlock the full potential of your VEVOR 48-Piece Bolt Extractor Screw Extractor Set with our comprehensive product manual download. This detailed guide is meticulously crafted to provide you with all the information you need to master the use of your extractor set, which includes 13 PCS Bolt Extractors, 19 PCS Screw Extractors, and 16 PCS Reverse HSS Drill Bits, all housed in a convenient storage case. Whether you’re a professional mechanic or a DIY enthusiast, our manual ensures you can effortlessly tackle any project involving the removal of damaged bolts, screws, and nuts.

Our user-friendly manual covers everything from initial setup to advanced troubleshooting and optimization tips, making it an invaluable resource for novices and experts. Step-by-step instructions, clear diagrams, and practical tips are designed to help you get the most out of your VEVOR extractor set, reducing downtime and increasing efficiency.

Download now and experience our manual’s ease of use, comprehensive guidance, and superior results. With the VEVOR 48-Piece Bolt Extractor Screw Extractor Set manual, every task is more straightforward and more efficient.

MODEL: YM-35/ YM-29/ YM-48

Safety Instructions and Precautions

WARNING: Read this material before using this product. Failure to do so can result in serious injury.

Bolt Extractor Set Assembly Precautions

Assemble only according to these instructions. Improper assembly can create hazards.
Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
Keep the assembly area clean and well lit.
Keep bystanders out of the area during assembly.
Do not assemble when tired or when under the influence of alcohol, drugs, or medication.

Bolt Extractor Use Steps

First, check the reason why the bolt broke open.
Select a proper gauge bit according to the diameter of the bolt.
In the center of the crack open, drilling holes.
Select the corresponding screw extractor insert.
Use the active wrench or power tool to turn anticlockwise and remove successfully.

Nut Extractor Use Steps

Reverse Drill Bit Use Steps

Select a bit thinner than the broken screw and drill a hole in the broken point.
Please select a suitable size and hole extractor, put it into the hole, and remove it with a wrench, sleeve, and anti-clockwise rotation.
