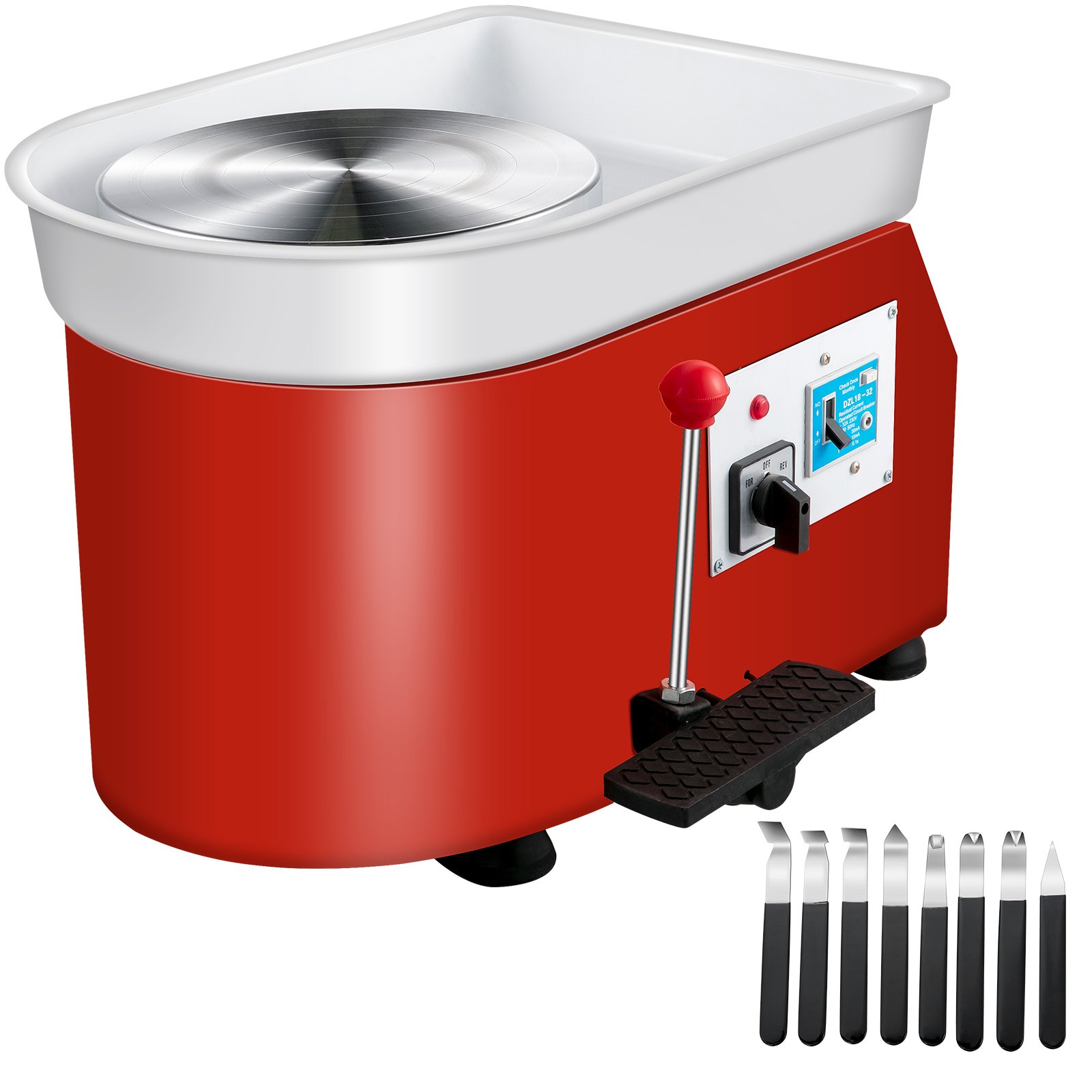

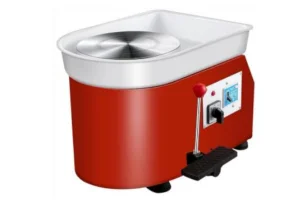

Pottery Wheel Machine User Manual

MODEL: GCJX-009

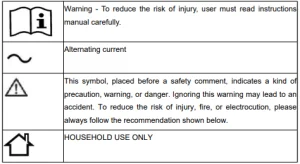

SAFETY INSTRUCTIONS

WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this pottery wheel. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

Save all warnings and instructions for future reference.

1. This pottery wheel only applies to ceramic drawings and cannot be used for other purposes. Do not use the equipment brutally.
2. The equipment shall be placed on a cool, ventilated, dry, dust-proof, and level ground.
3. Users must wire and install the system according to electricity safety standards.
4. Do not change the rotation direction when the motor is running. To change the rotation direction, stop it first, and start it after the motor completely stops rotating.
5. Please use a towel or sponge to clean the machine body, and do not use a lot of water to wash it to avoid water immersion in the motor, switch, bearing, and other parts, causing failure.
6. Before using the pottery wheel, ensure the switch and pedal are in the stop position before inserting the power.
7. When repairing or replacing parts, the switch must be cut off and the power supply must be unplugged.
8. Children should use this equipment with adults(Note: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Children shall not perform cleaning and user maintenance without supervision.
9. Periodically check whether the power cable is damaged and the connector is loose.
10. Press button(8A) on the leakage protector once a month to check whether the leakage protection works normally!

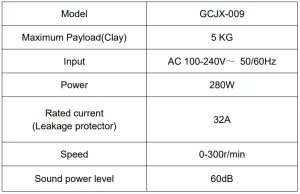

POTTERY WHEELS MODEL AND PARAMETERS

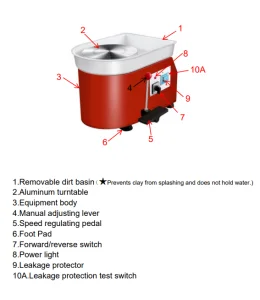

STRUCTURE DIAGRAM

TOOL ACCESSORIES AND USE

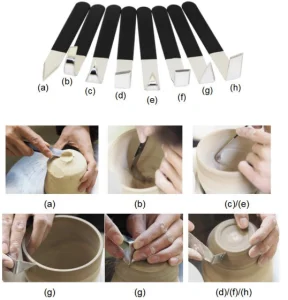

1. Stainless steel clay-repair knife 8-piece Set(x1): Repair clay molds as shown below

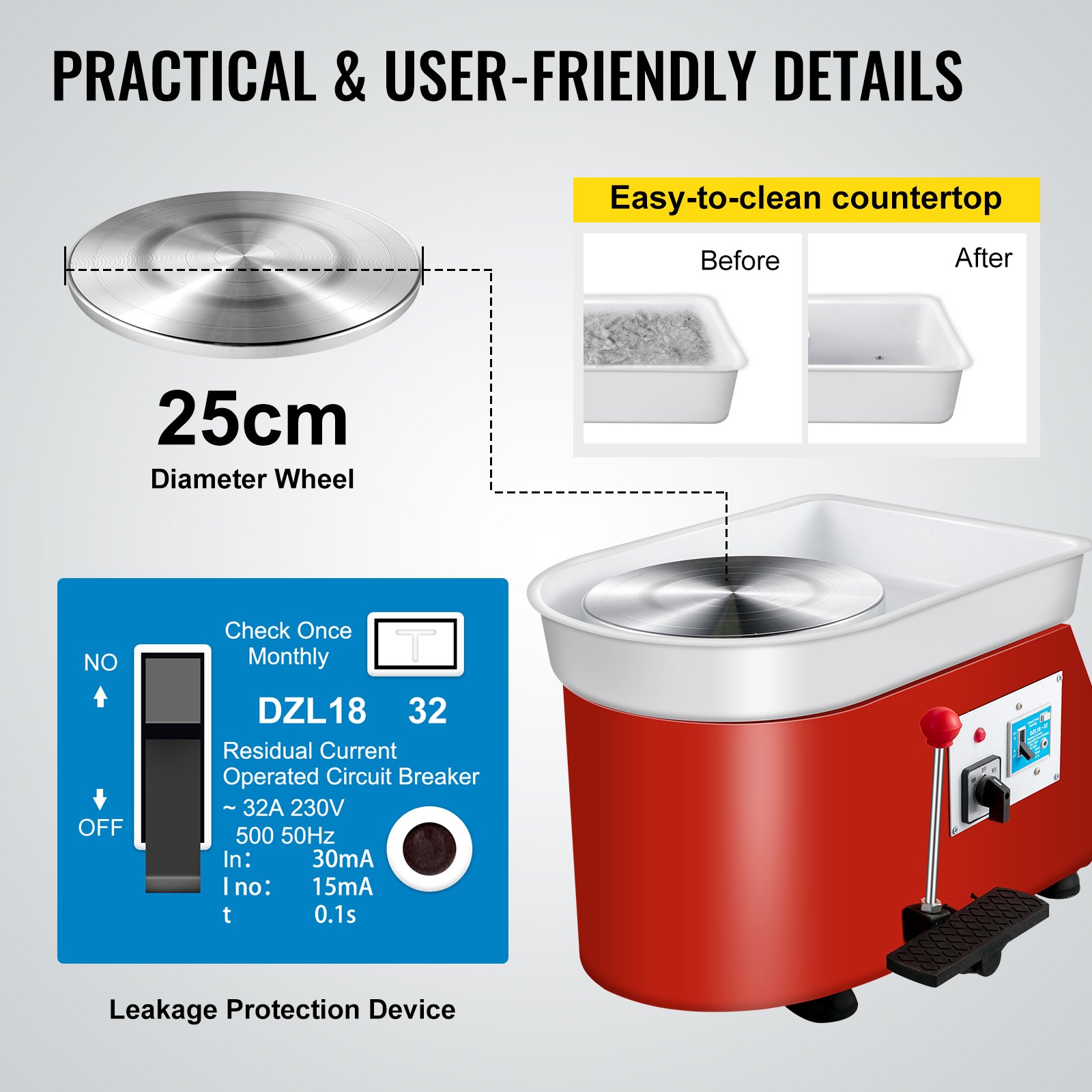

Aluminium turntable (Φ250mm): The turntable’s size depends directly on the maximum diameter we can achieve. (Loosen the bolt with a wrench and replace it)

NOTE: After the work, please clean the sludge on the turntable and basin in time, wipe it with a dry towel to avoid oxidation on the surface of the turntable!

POTTERY WHEEL OPERATING STEPS

Step 1: Take out a proper amount of clay, throw the mud ball in the center of the wheel, and press it (wet your hands)

• Take out a proper amount of clay, throw the mud ball in the center of the wheel, and press it (wet your hands).

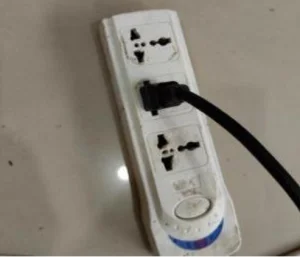

• Plug in the power

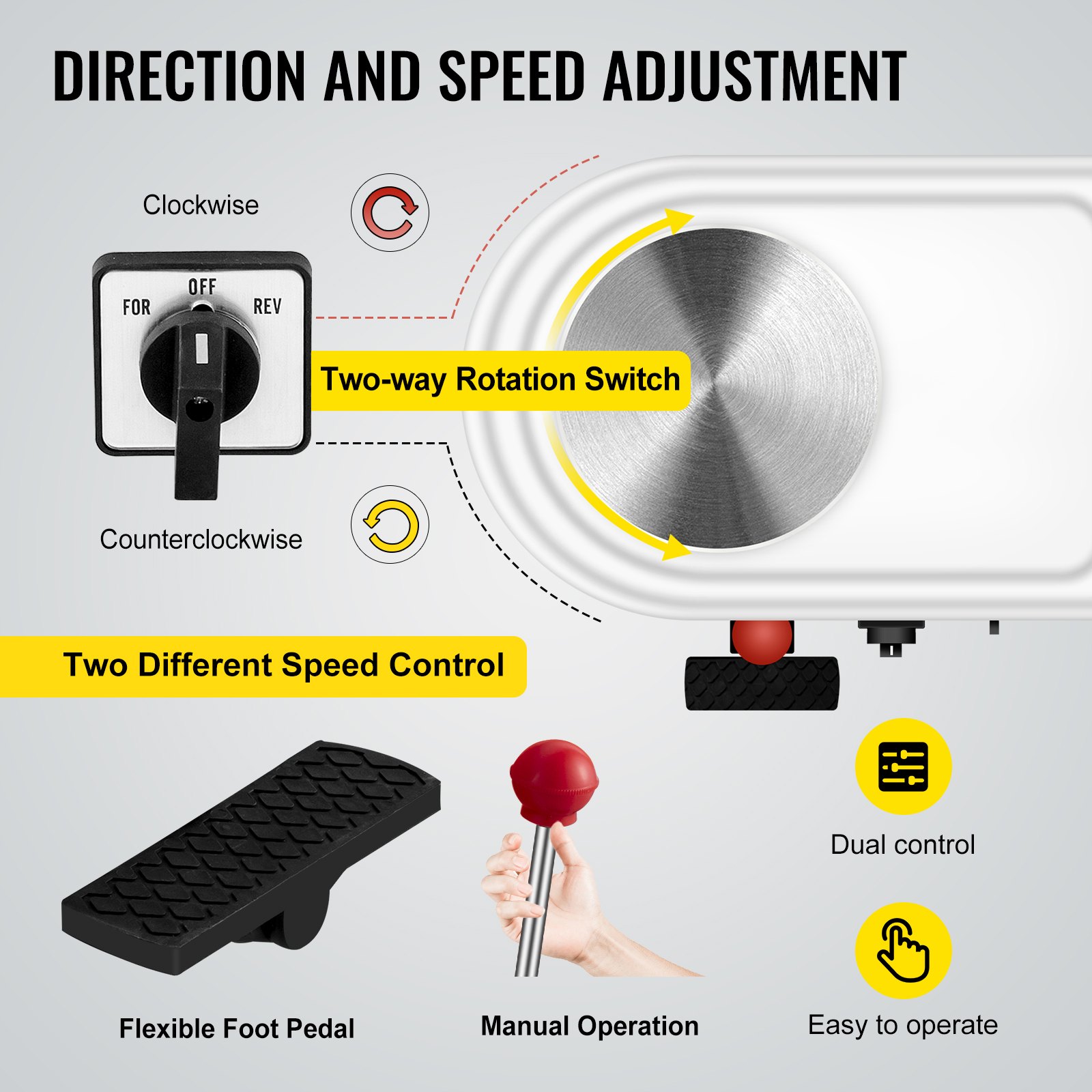

• Turn on the switch and choose the direction of forward (clockwise)/reverse(counterclockwise) rotation according to your needs.

Push the lever/pedal to adjust the speed and start clay molding with the tools.

Clay-mold repairs with tools.

Creative painting and coloring can be carried out according to their own needs.

After the work is completed, stop the machine in reverse order. Remove the molding with a scraper/clay cutting line. Place in a cool place for some time before firing.

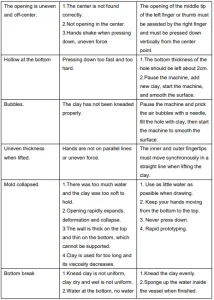

SKILLS GUIDANCES

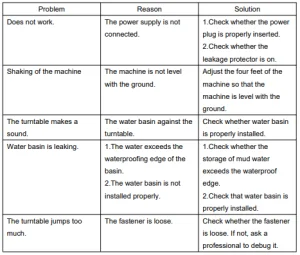

Pottery Wheel Troubleshooting

CLEAN AND CARE RULES

1. After finishing the equipment operation, it is necessary to clean the clay on the surface of the turntable and wipe the water stains on the surface of the turntable (Do not rinse directly with water).
2. Check the parts regularly for looseness.
3. If you use it sparingly, run it at least once a month.
