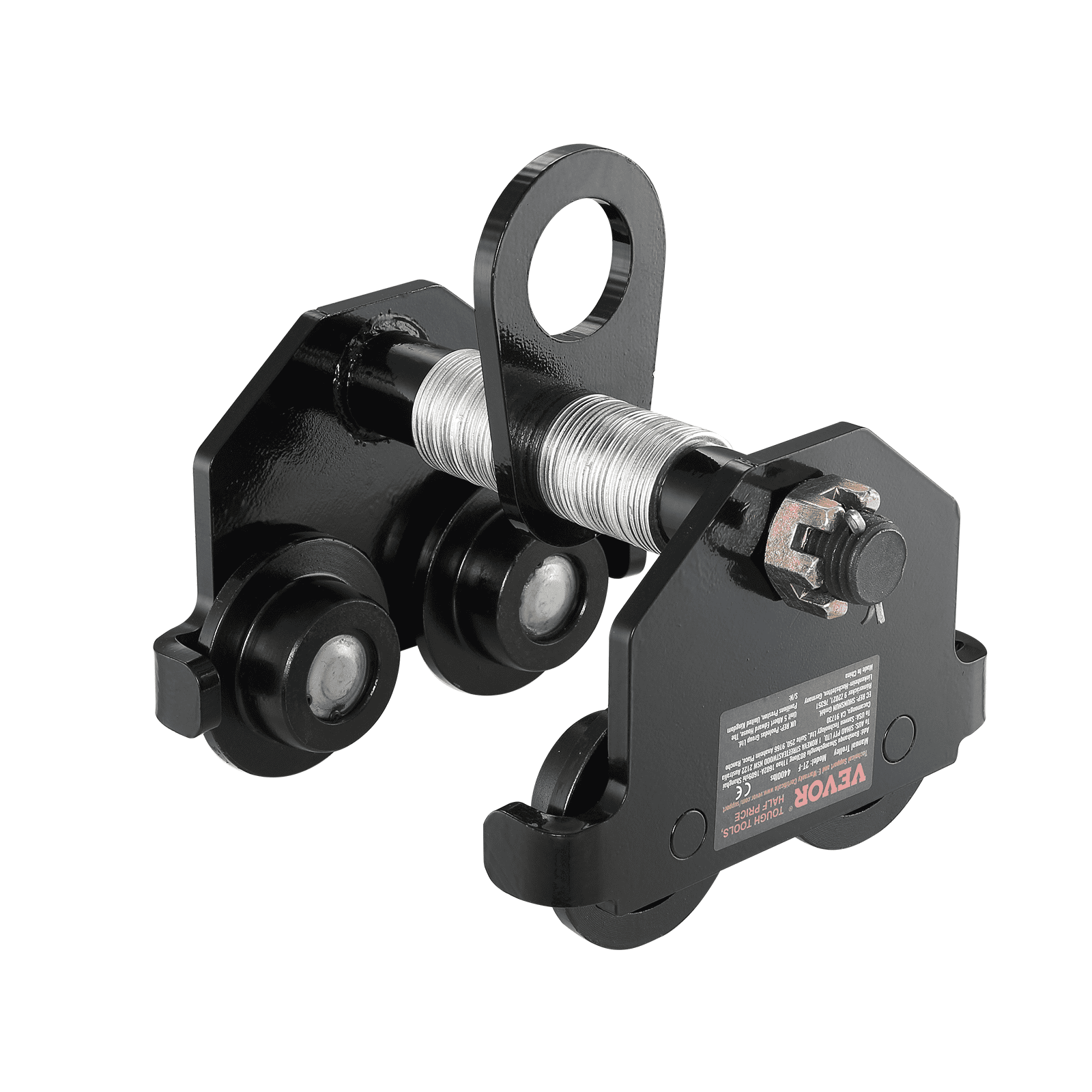

VEVOR Manual Trolley User Manual
Safety Instructions
WARNING:
- Assemble only according to these instructions. Improper assembly can create hazards.
- Wear heavy-duty work gloves during assembly.
- Overloading is strictly forbidden.
- While lifting the load, passing or working under a lifting load is strictly forbidden.
- The bearing and beam surfaces should be greased regularly, and the bolts and nuts should be examined to ensure they are tightened.
Caution:
- Read this material before using this product. Failure to do so can result in serious injury.
- The trolley must be used flexibly, and it is strictly prohibited to use it compulsorily when individual connections are inflexible.
- After use, please dry before storage to avoid rusting of bolts, which can affect use.
SAVE THESE INSTRUCTIONS

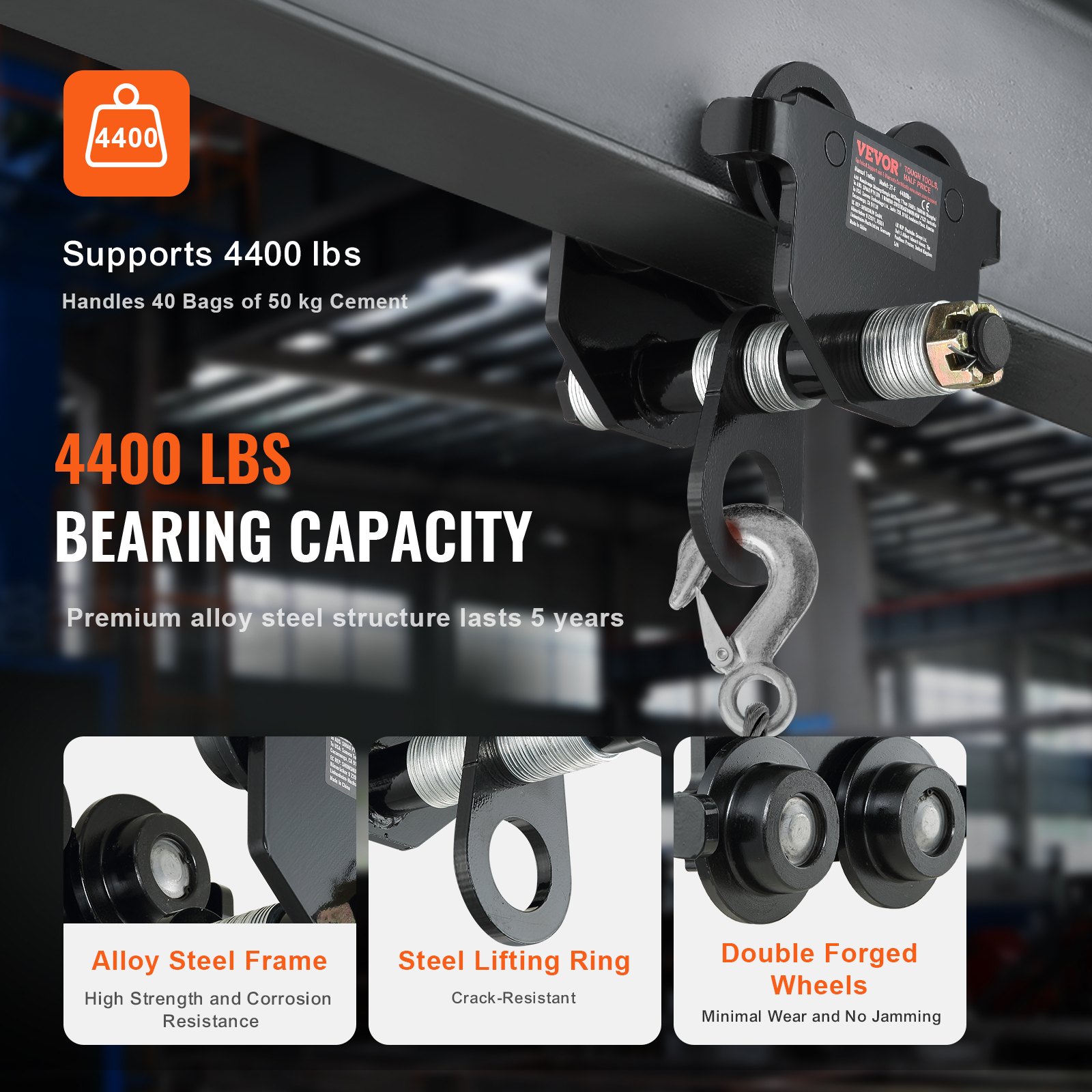

Models and Parameters
Assembly and Use

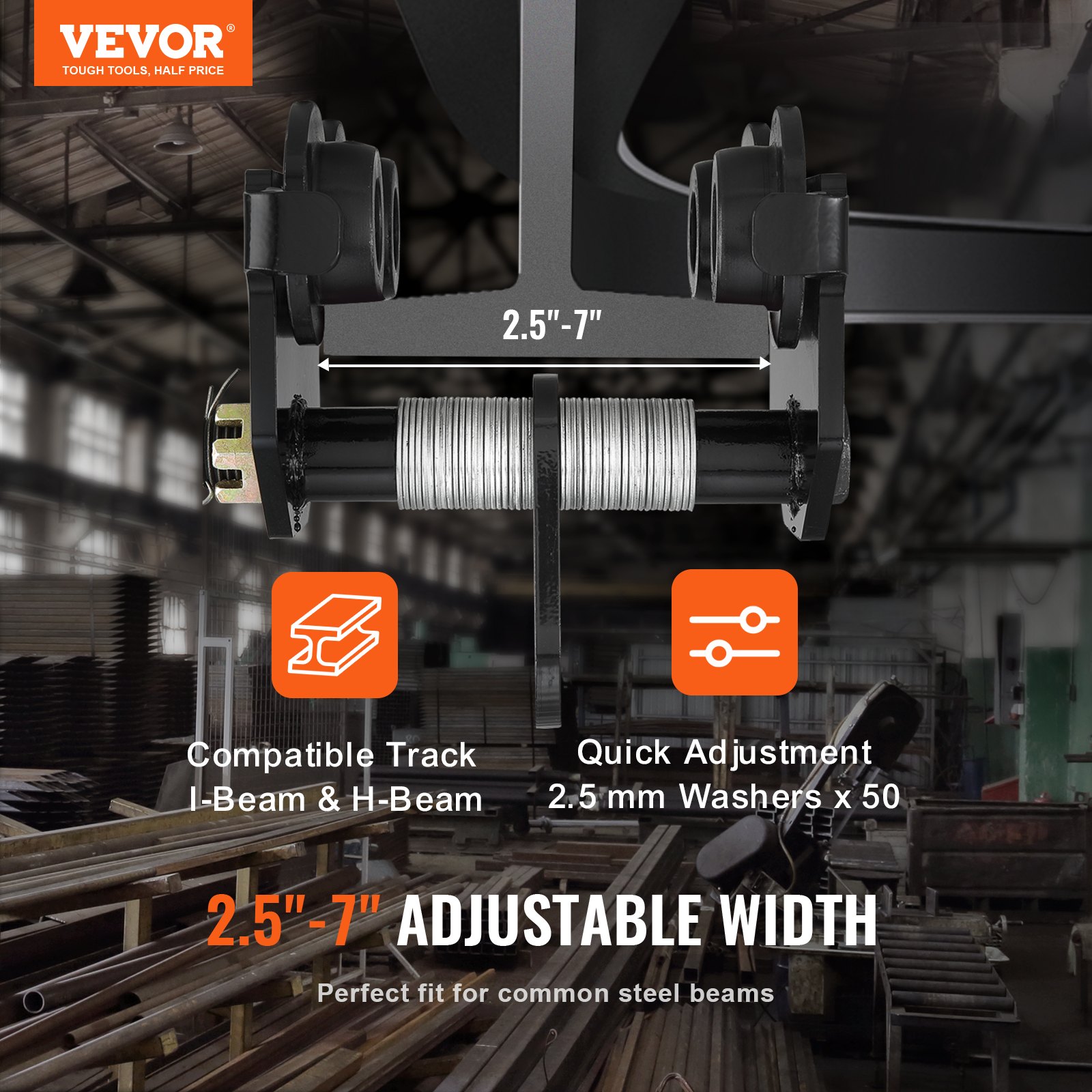

1. According to the rail width of your I-beams/H-beam, the trolley must be adjusted with the washers. Assemble the required number of washers equally on the inside or outside of the trolley side plates, so that the dimension (W) between the Trolley Wheel Flanges is about 1/5inch( 5mm) greater than the rail beam
width of I-beam /H-beam track.

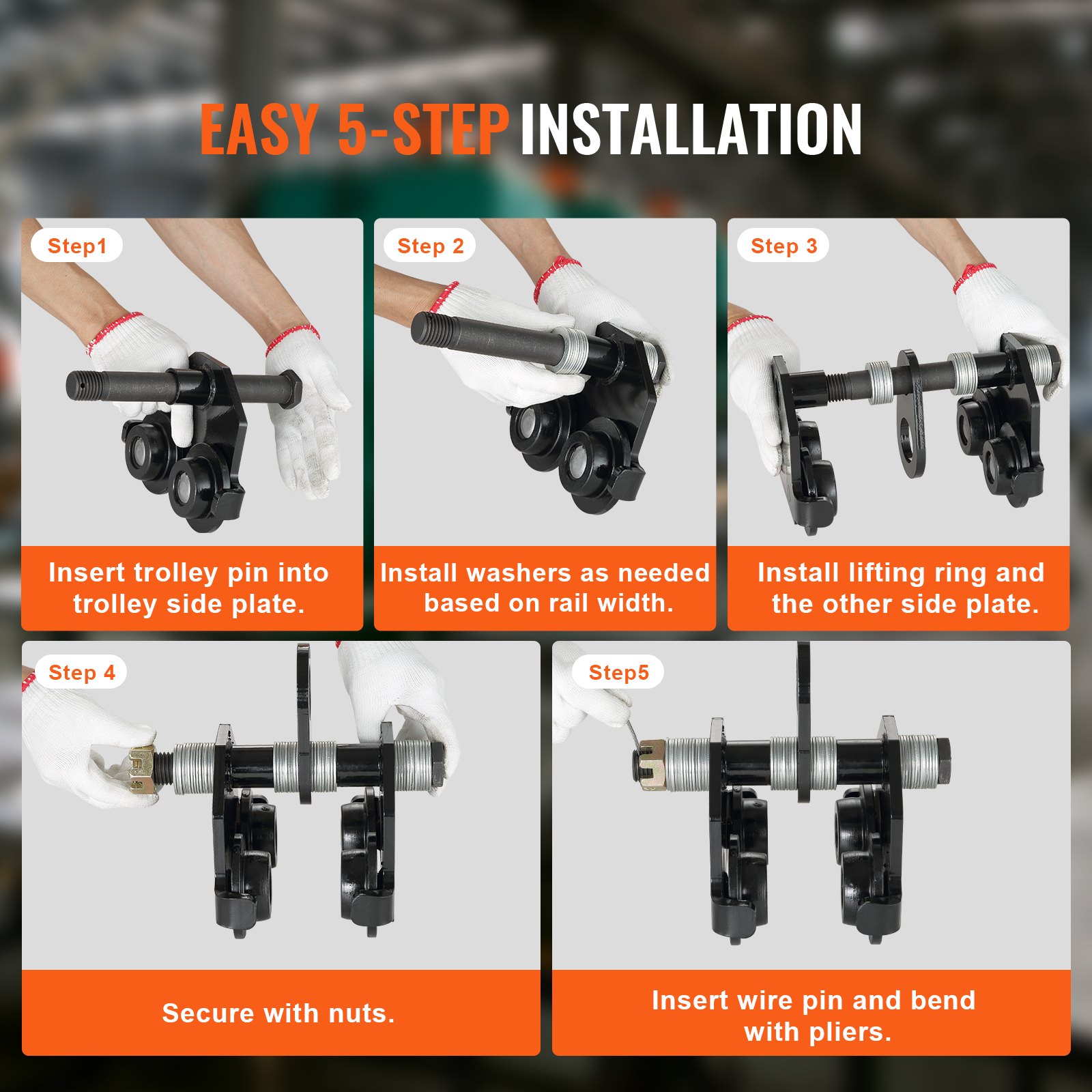

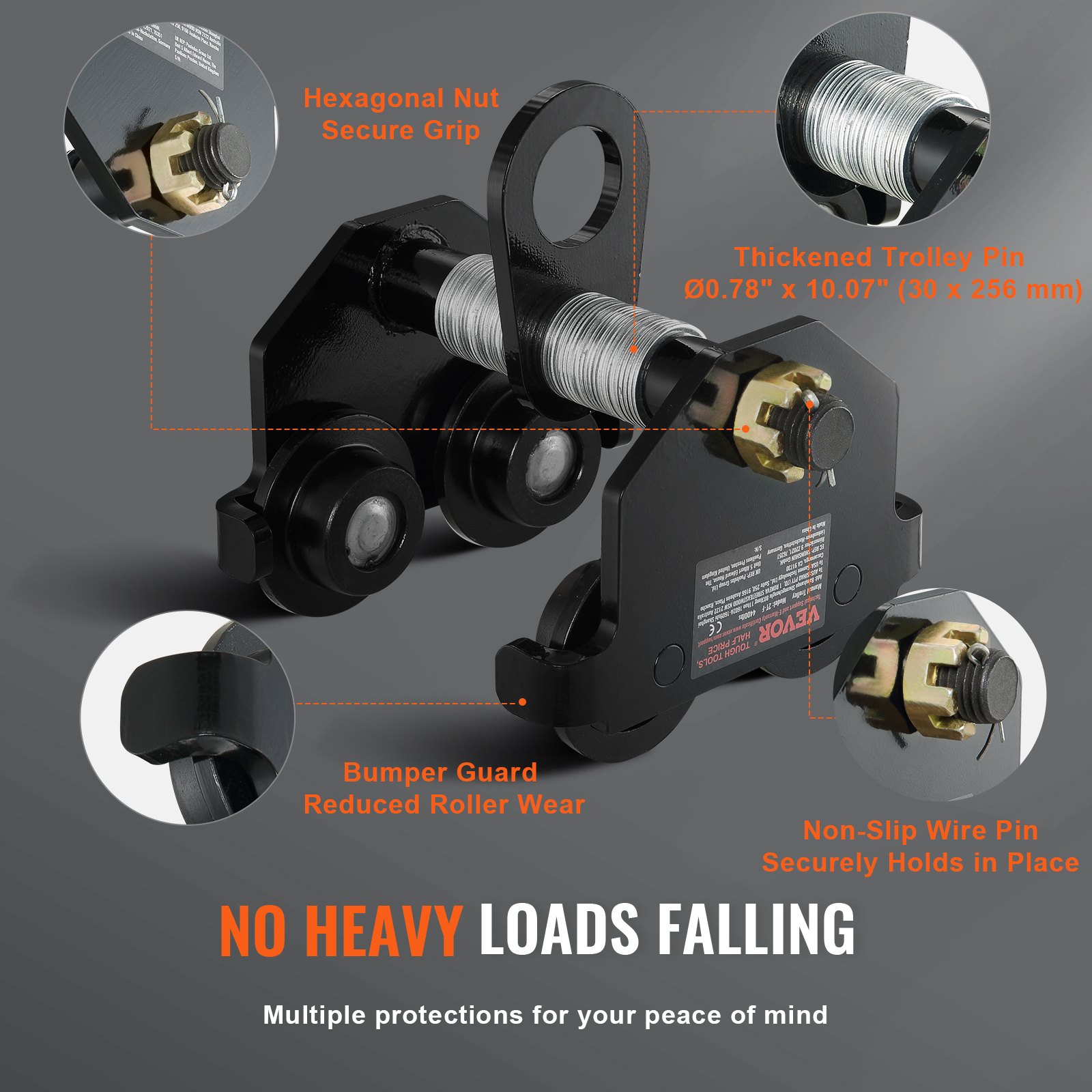

2. The washers, the trolley side plates, and the hanging ring plate are assembled on the trolley pin. They must
be locked with nuts to prevent the nuts from falling off. The end of the trolley pin is locked with a wire pin, and the wire pin is bent with pliers. (Model 0.5- F and Model 0.5-K are the two nuts fixed at the end of the trolley pin)
Manual Trolley Maintenance
- Avoid prolonged exposure to the sun to avoid aging
