VEVOR Universal Forklift Seat User Manual

Model: TY-B28-1

IMPORTANT SAFEGUARDS

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury, or damage to valuable property.

1. While assembling and using this product, keep the work area clean and well-lighted, and keep spectators and children out of the work area.
2. Assemble only according to the seat parameter. Improper assembly will cause hazards.
3. Use as intended only.
4. Keep anyone not wearing the appropriate safety equipment away from the work area.
5. Flammable: Keep away from open flame. This product will ignite and burn if exposed to an open flame.
6. Avoid sharp points, blades, and other items to avoid scratching the product.
7. Control the forklift seat, personal movement, and the work environment to avoid personal injury or damage to the tool.

• Do not operate any tool when tired or under the influence of drugs, alcohol, or medications.
• Do not overreach when operating the tool. Proper balance enables better control in unexpected situations.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Instructions

Universal Forklift Seat Parameters

1. The adjustable range of front and rear seats is 150mm.

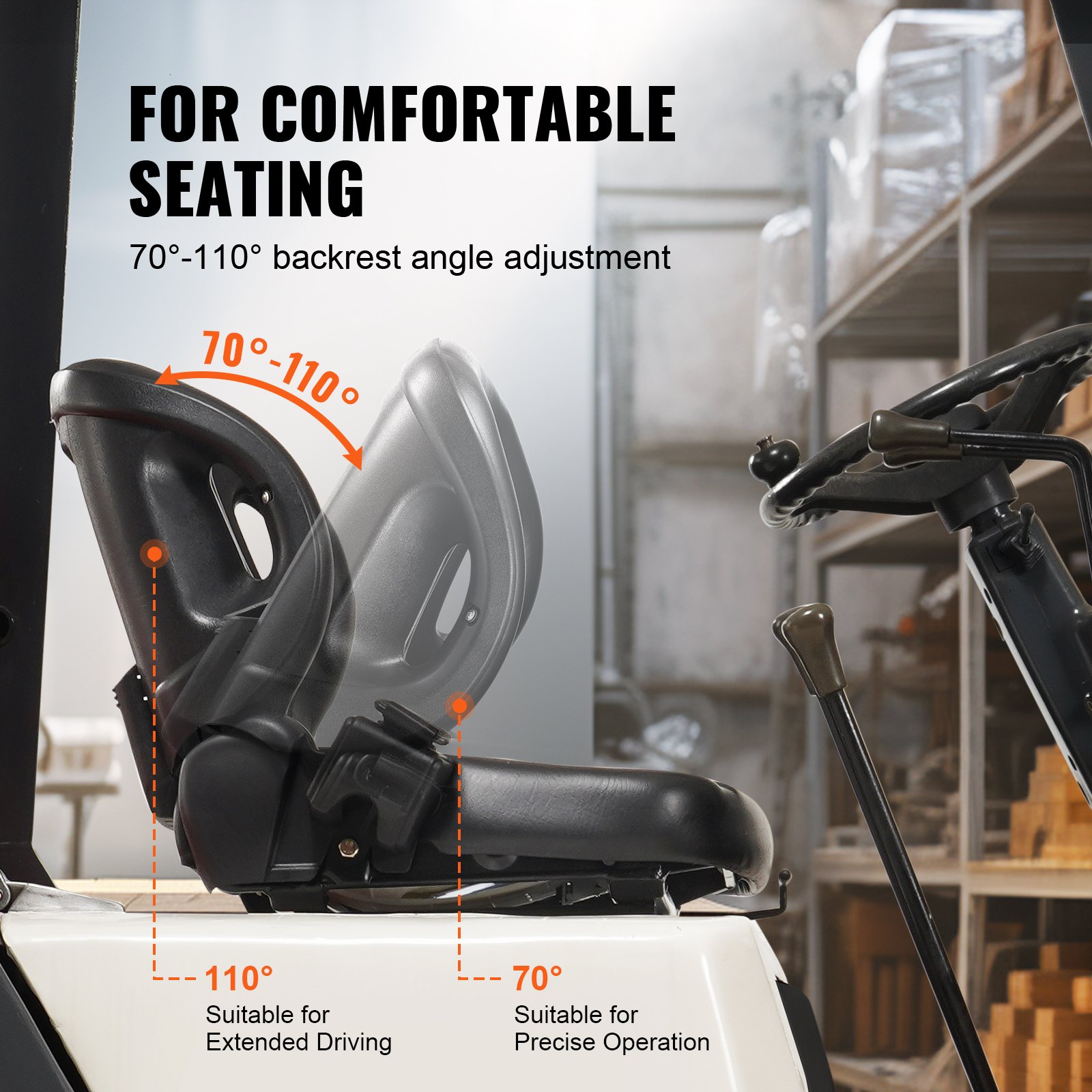

2. The Angle of the backrest can be adjusted from 70° to 110°.

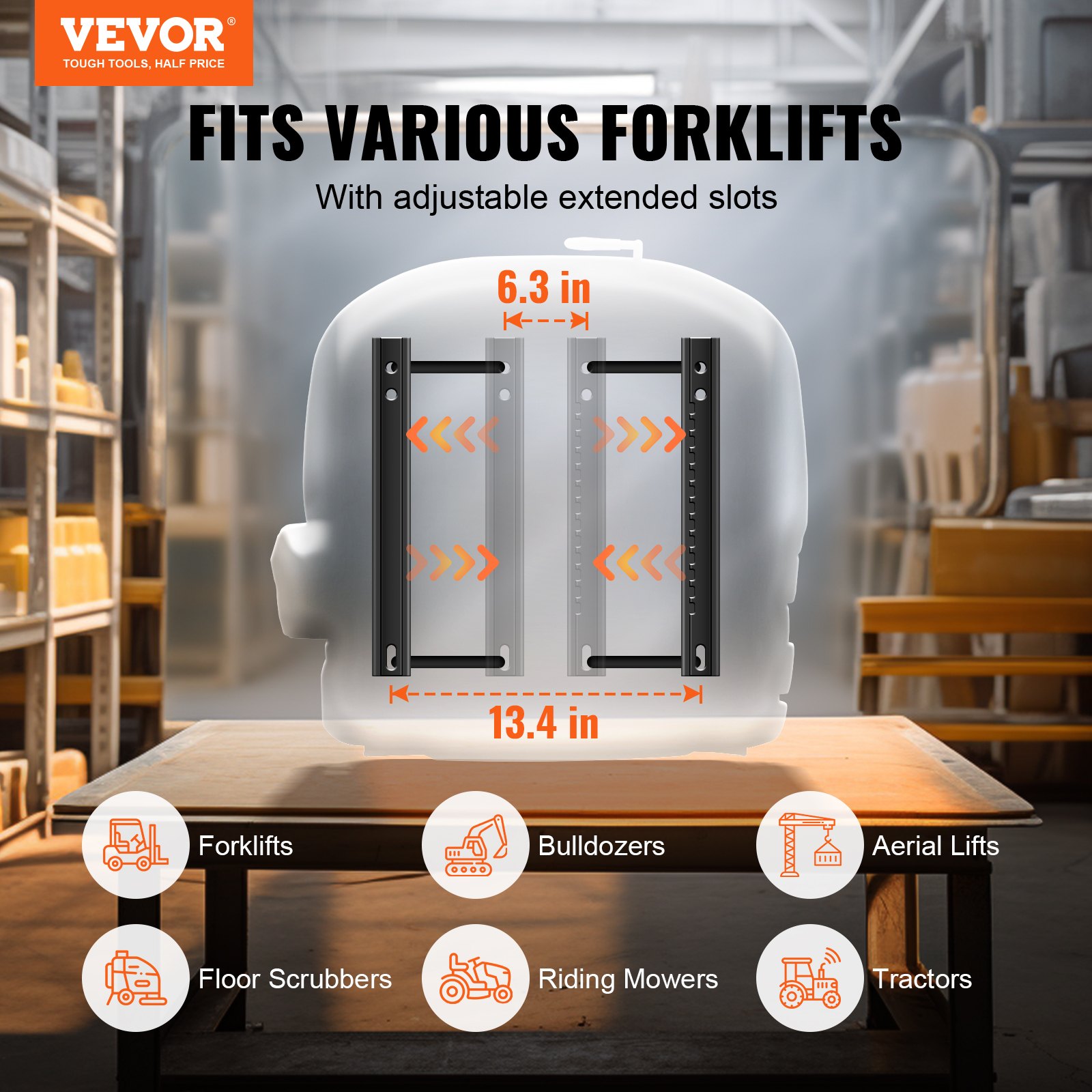

3. The transverse installation size can be adjusted, ranging from 160mm to 340mm.
4. Select the right screw holes for vertical installation according to your requirements.
5. The connector type of seat safety switch: 40C

Correct Disposal

This product is subject to European Directive 2012/19/EC provisions. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol.

Products marked as such may not be discarded with regular domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.
