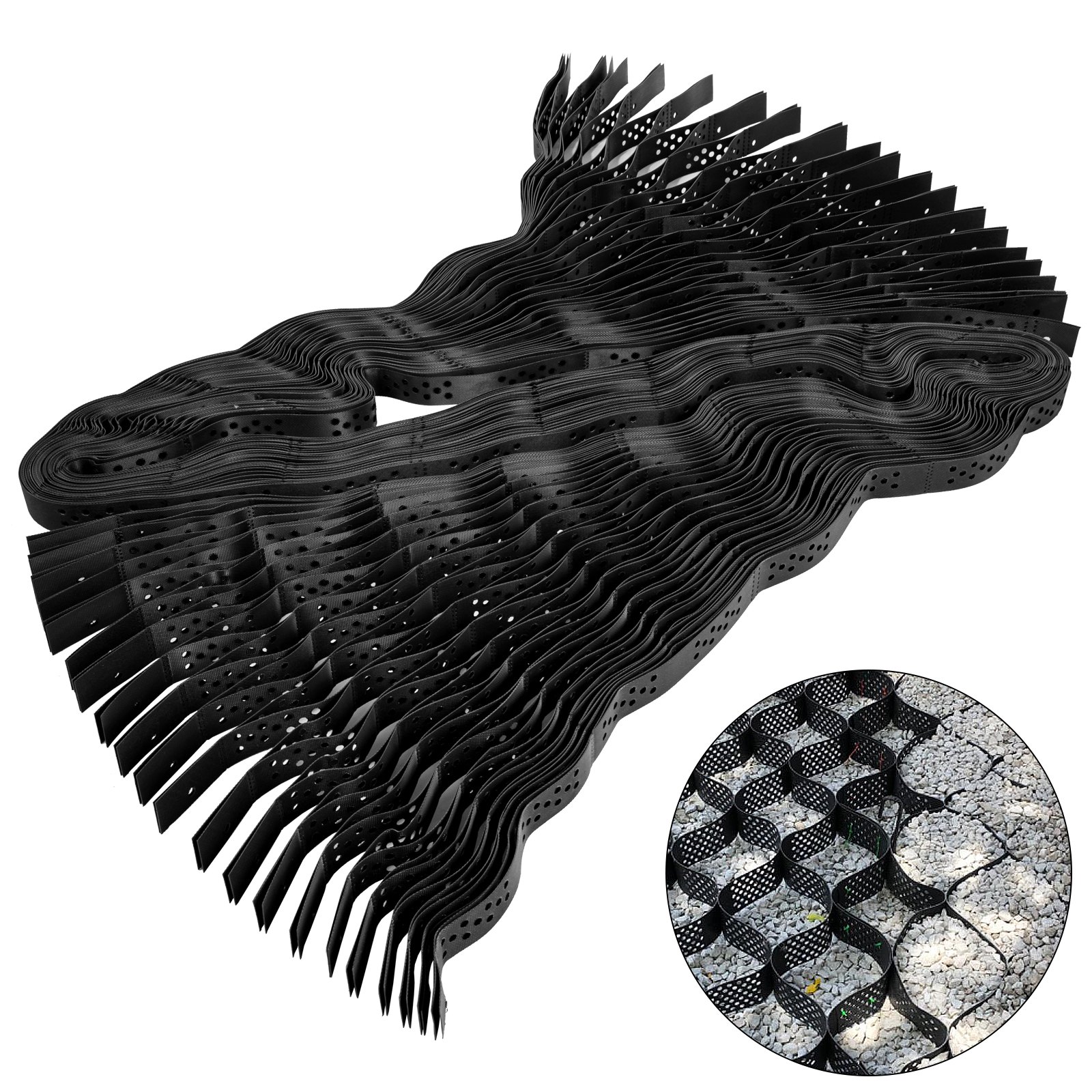

VEVOR Geo Grid Ground Grid User Manual
MODEL: 50-400/50-450/75-500/100-450
IMPORTANT SAFEGUARDS
WARNING: Read and understand this manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage valuable property.
- Avoid children using the geo grid ground grid. This product is not a toy. Do not allow children to play with it.
- Keep away from sharp points, blades, and other items.
- Wear ANSI-approved work gloves during construction.
- Keep the construction area well-lit.
- Keep bystanders out of the area during construction.
- Do not operate when tired or when under the influence of alcohol, drugs, or medication.
- Product capabilities apply to a properly and completely assembled product only.
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts out of children’s reach.
SAVE THESE INSTRUCTIONS
PREPARATIONS
- Clean the project area according to the drawings’ requirements, ensuring its flatness and cleanliness.
- When the ground is uneven, cleaning it or adding a layer of supplementary material to pave it is necessary.
- Before construction, the size of each exposed compartment hopper should be calculated based on the stretching length of each group of compartments. The excess part at the connection is generally not within the calculated length to prevent uneven hopper size and affect the appearance.
GROUND GRID INSTALLATION INSTRUCTIONS
LAYING PROCESS AND SPECIFIC METHODS

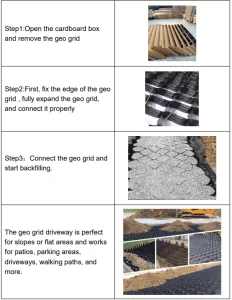

- Unfold the bundled grid, place its outer edge along the grayline, and fix both ends with grid accessories, anchor rods to fill the soil inside the cell. Generally, fill it to two-thirds of the height of the geotechnical cell first and compact the soil inside with an iron rod. The primary purpose is to facilitate the overall linear adjustment after forming the geotechnical cell.
- At this point, the connection of the second compartment can be carried out, and the interior of the first compartment can continue to be filled with soil to a height exceeding two-thirds of the panel height. Then, use an iron rod to compact the soil with a heavy hammer. The remaining soil can be filled together during the filling of the wall cell until the entire cell construction is completed.
- When adjusting the panel line type, attention should be paid to identifying the parts that are not easily deformed for line control. For compartment panels, the accessories connected to the panel can serve as control points.
- After positioning the geo grid ground grid, the filling should be uniform to ensure uniform size inside the cell. In addition, fine-grained soil must be used for filling the interior of the cell, especially in the areas that come into contact with the exposed materials of the cell panel, to avoid local bulges on the surface of the panel and affect its aesthetics.
- For stacked flexible retaining walls, the wall panels do not need to control the elevation of each layer. After controlling the elevation of the bottom layer, subsequent layers can be controlled according to the filling thickness.
Caution
- Attention must be paid to the rolling machine’s weight, and a construction machine suitable for the foundation condition must be used.
- Determine the height of the filling soil based on the foundation conditions, generally greater than or equal to 30 centimeters.
GEO GRID SPECIFICATIONS
VEVOR Gravel Grid, 3 Inch Depth, 24.93 x 9.52 FT / 7600 x 2900 mm, 1880 LBS Per Sq ft Grass Ground Retainer, Permeable Geo Grids Driveway Stabilization, for Garden, Patio, Walkway, RV Parking Slopes
VEVOR Gravel Grid, 4 Inch Depth, 17.06 x 8.86 FT / 5200 x 2700 mm, 1880 LBS Per Sq ft Grass Ground Retainer, Permeable Geo Grids Driveway Stabilization, for Garden, Patio, Walkway, RV Parking Slopes
VEVOR Gravel Grid, 3 Inch Depth, 17.06 x 8.86 FT / 5200 x 2700 mm, 1880 LBS Per Sq ft Grass Ground Retainer, Permeable Geo Grids Driveway Stabilization, for Garden, Patio, Walkway, RV Parking Slopes
VEVOR Gravel Grid, 2 Inch Depth, 26.87 x 3.94 FT / 8200 x 1200 mm, 1880 LBS Per Sq ft Grass Ground Retainer, Permeable Geo Grids Driveway Stabilization, for Garden, Patio, Walkway, RV Parking Slopes
VEVOR Gravel Grid, 2 Inch Depth, 17.06 x 8.86 FT / 5200 x 2700 mm, 1880 LBS Per Sq ft Grass Ground Retainer, Permeable Geo Grids Driveway Stabilization, for Garden, Patio, Walkway, RV Parking Slopes
