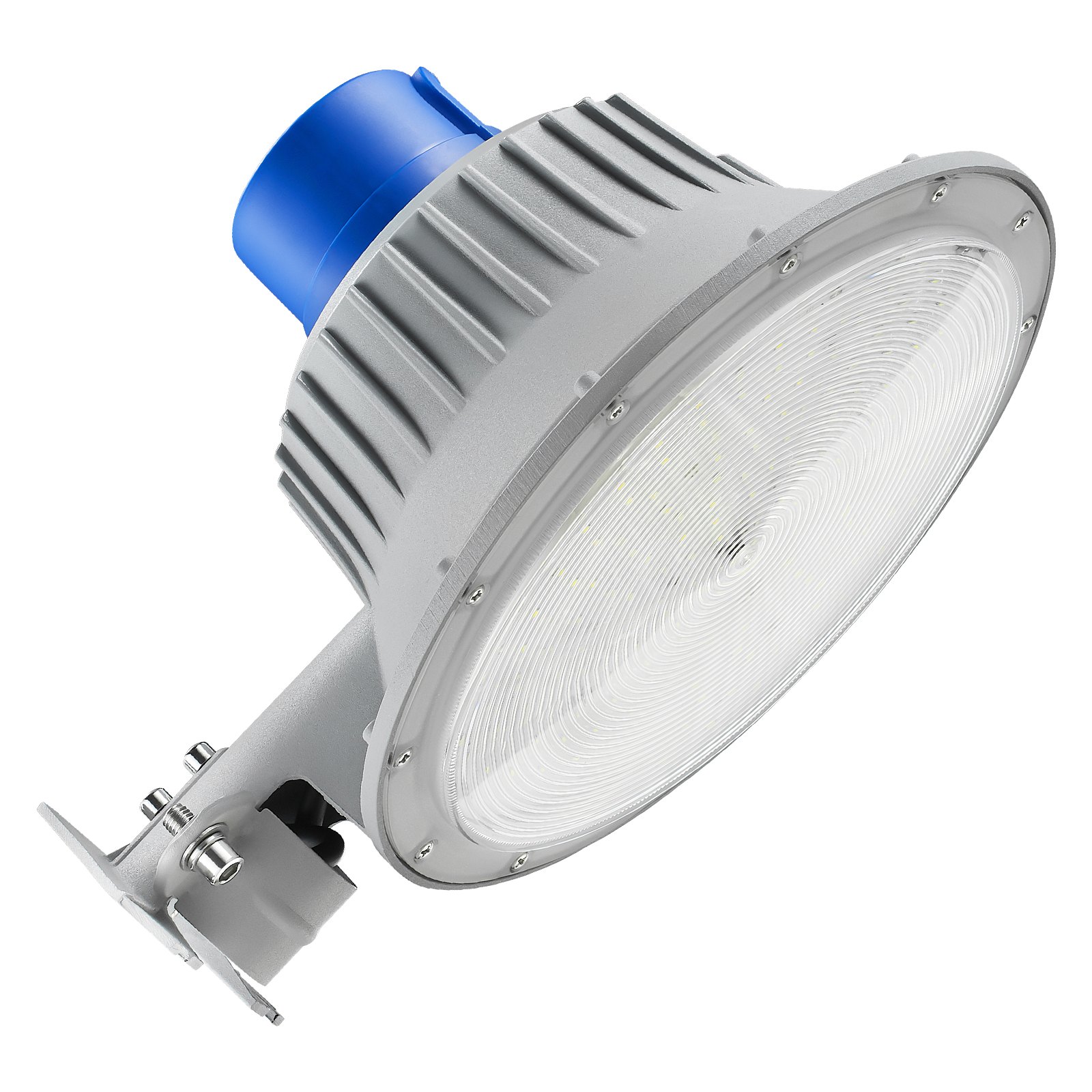

VEVOR LED Barn Light User Manual

MODEL: BD-HB-50W/BD-HB-100W

Technical Parameters

• Input Voltage: AC100-265V 50/60HZ
• Rated power: 50W(BD-HB-50W), 100W(BD-HB-100W)
• Certificate: IP65, CE, FCC, ROHS.

Installation Instructions

For Light Control Components

1. Take out the light control unit, and the plug is aimed at the socket hole of the lamp body (it cannot be inserted if it is not fully aligned).
2. After alignment, turn clockwise until it cannot rotate, at this point, the installation is complete.
3. Specifications of the photosensitive component
   Turn-On Light Levels: 10-16 Lux
   Time Delay: 3-10 Seconds
   Operating: -40℃ to +70℃
   Switch: > 5000 ON/OFF Operations at Rated Load
   Ingress Protection： IP65

LED Barn Light Wiring Diagram

Installation Diagram

• Blackout before installation. Don’t install it with electricity on.
• Adjust the suitable angle.
• The lamp body is directly installed on the wall: please close the opening and fix it on the wall with 10 mm expansion screws.
• Installation with lamp post: use an 8mm socket wrench toloosenthescrew until the lamp post can be inserted into the lamp cap and passed through the joint, then tighten the screw, and then fix the lamp on the wall or lamp post.
• Connect the wire. It’s 0.75MM² triple-core, brown is the Line of fire, blue is the zero line, and yellow-green is the ground line.
• After the wiring is completed, turn on the power (this product does not have a power switch, and the user needs to install the control switch by himself); The light control unit starts to work, the light does not light up during the day, and it automatically lights up at night.
• Don’t try to install the damaged product.
• Don’t install the lamp in an enclosed place to have a good heat dissipation effect.
• Ensure the wire connection is good and safe to avoid electrical leakage after installing the lamp.
• Waterproof measures must be taken when connecting the driver.
• Don’t violate the law of fire control when using the lamp.
• The lamp can be automatically turned on and off according to the intensity of the ambient light, and it is automatically turned off during the day and turned on at night.

Maintenance

• Turn off the driver when maintaining the lamp.
• Regularly Clean the dust on the heat sink in order tohaveagoodheatdissipation effect.
• Don’t use chemical or corrosive liquid to clean the lamp. Please use a dry cloth to clean it.
• Please contact the dealer and manufacturer if the LED chip or driver needs to be replaced. After dismounting again, the waterproof and dust-proof performance will be affected.

List of LED Barn Light Accessories

• Products * 1
• Light Control Components*1
• Expansion Screws(6mm*60mm)*3
• Dense Bags*1
