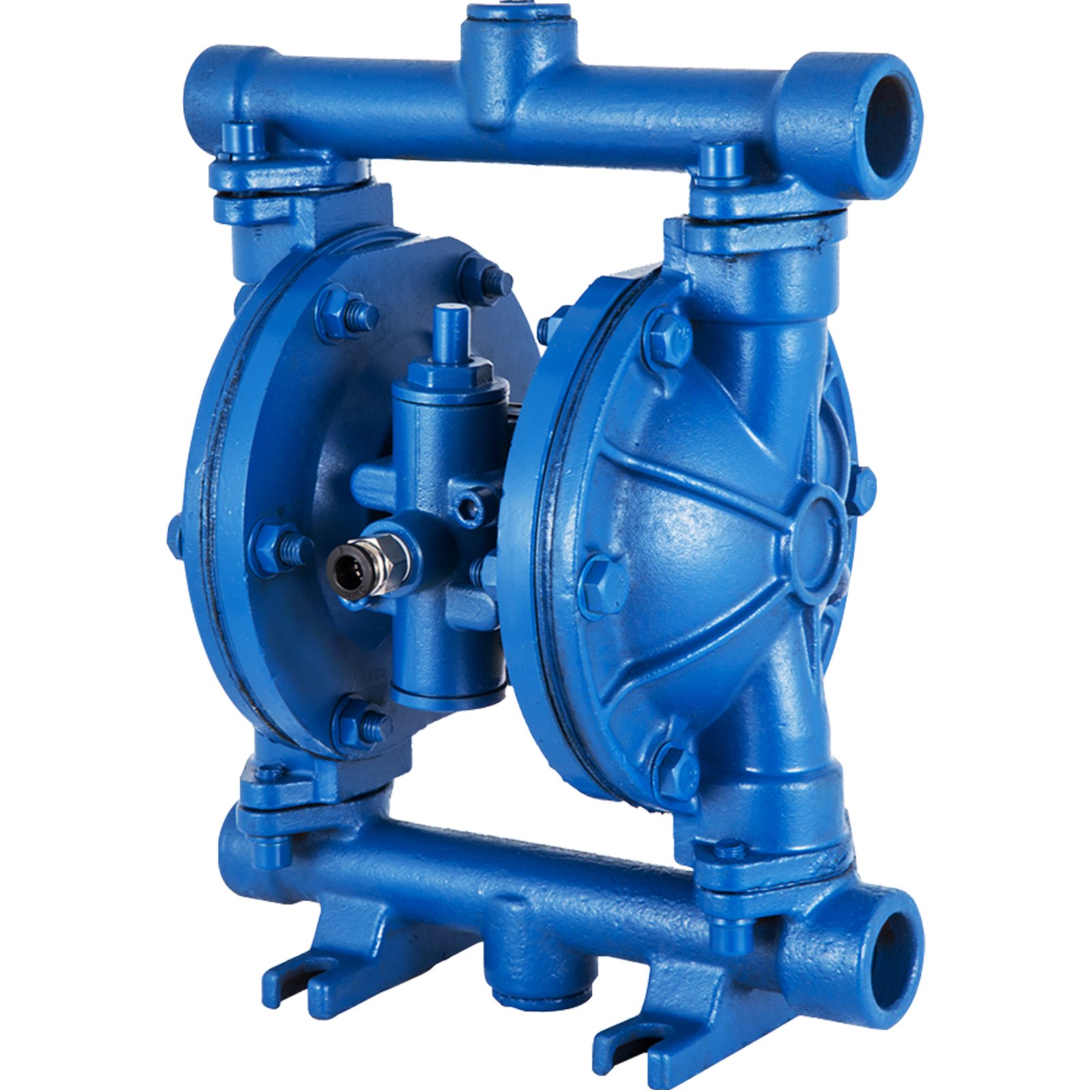

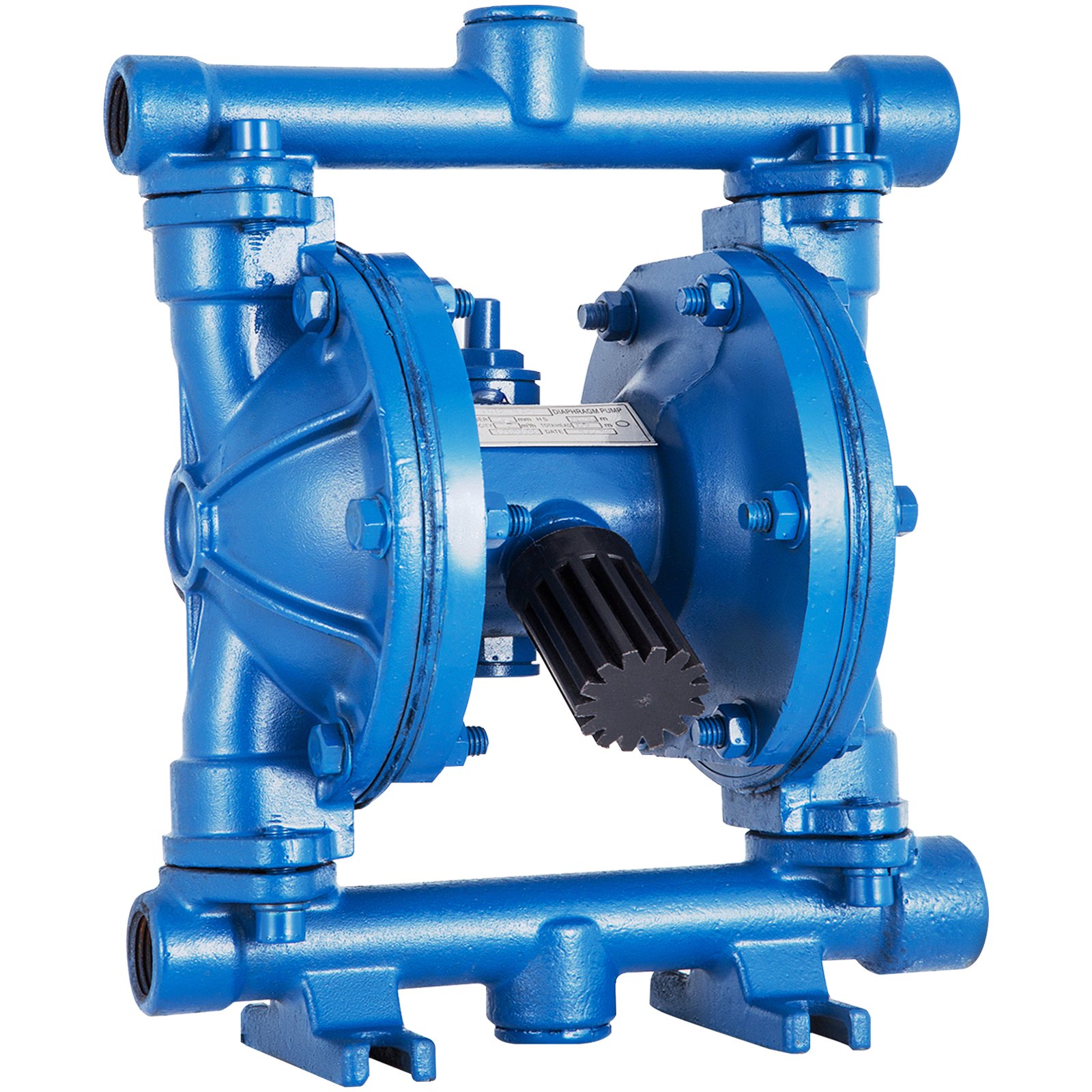

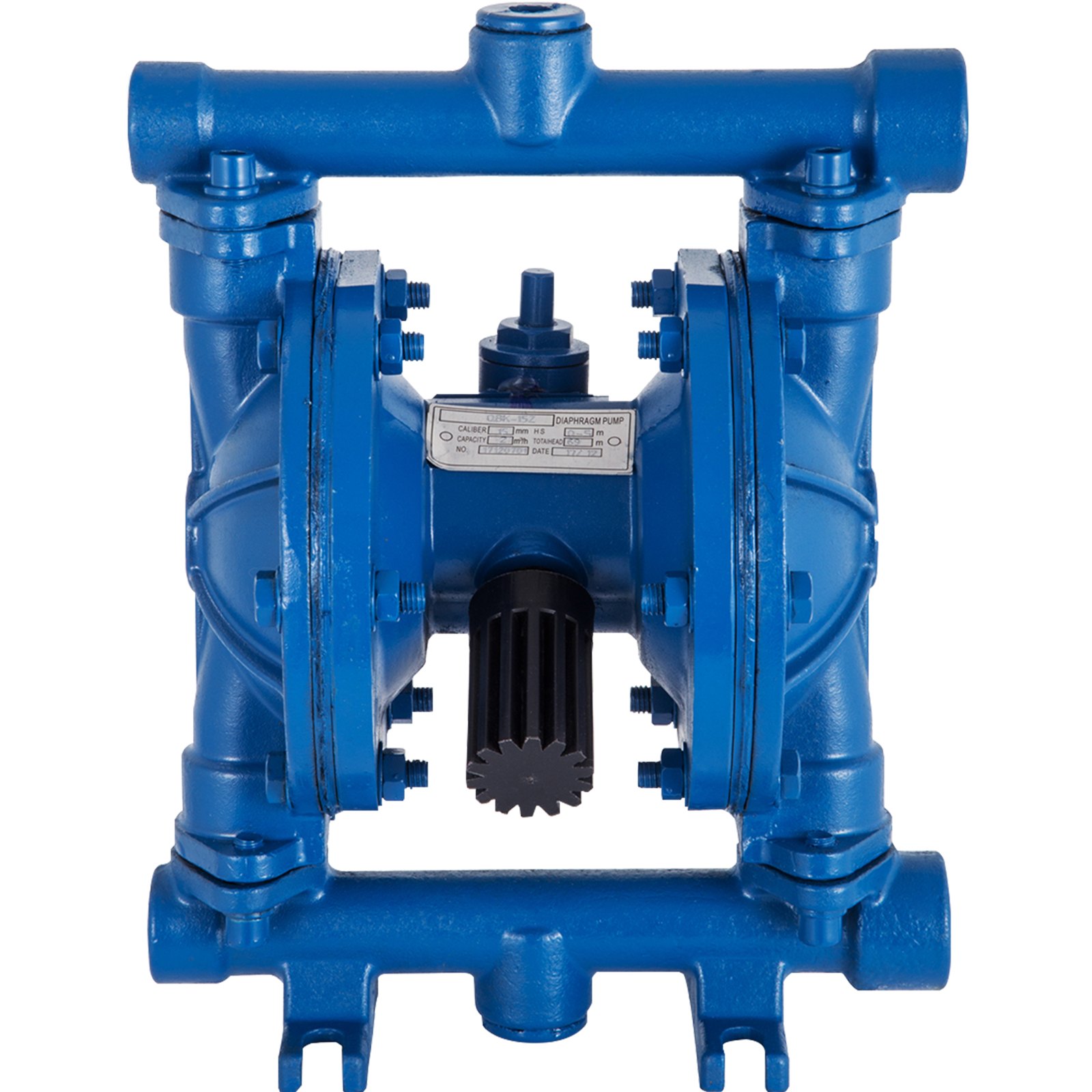

Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet

$102.99
102.99

12 GPM

  • 12 GPM

226.4 ft

  • 226.4 ft
  • Premium Double Nitrile Diaphragms: Our air-operated double diaphragm pump adopts nitrile diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 115 psi; Max. Flow Rate: 8.8 GPM; Max Head Lift:226.4 ft/69 m.
  • Sturdy & Leak-proof Construction: The diaphragm pump housing is made of cast iron material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
  • Excellent Air-operated Performance: Inlet/Outlet Port Size: 1/2 inch; Air Inlet Size: FNPT 1/4 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.

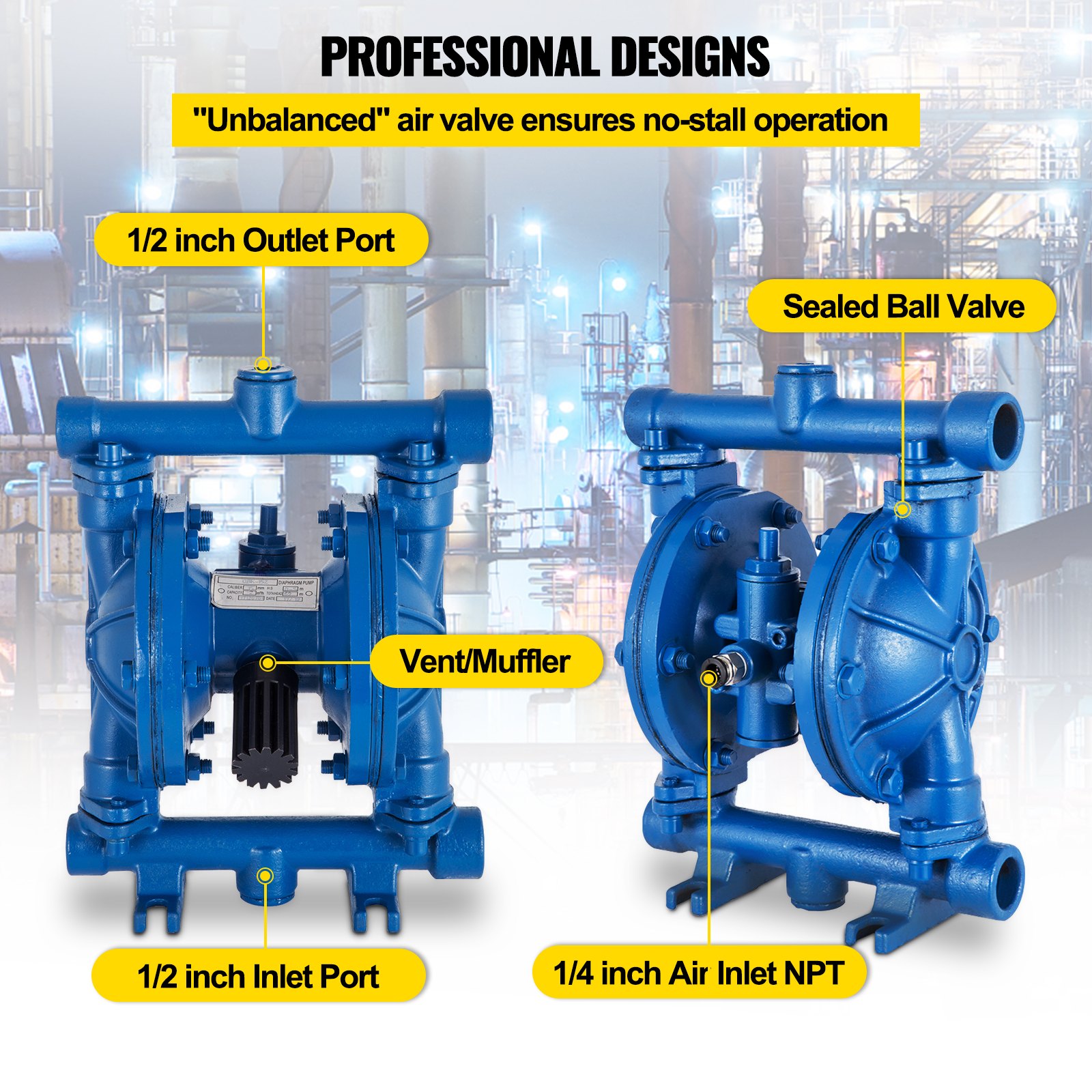

  • Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
  • Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.

Frequently bought together

People Who Bought This Item Also Bought

Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
12 GPM 226.4 ft
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
12GPM Air-Operated Double Diaphragm Pump
A diaphragm pump is a positive displacement pump that uses a combination of the reciprocating action of a nitrile rubber diaphragm and suitable valves on either side of the diaphragm to pump a fluid.
  • The listing is about air-operated double diaphragm pump 12GPM 1/2Inch Inlet And Outlet. The diaphragm pump features an externally serviceable air distribution system and all-bolted construction, with convenient operating, are widely used in various industries, such as petroleum, metallurgy, mining, coating material, printing, paper making, water treatment, automotive etc.
  • Main Parameter
  • Quality Performance
  • Unique Design
  • Excellent Construction

Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet

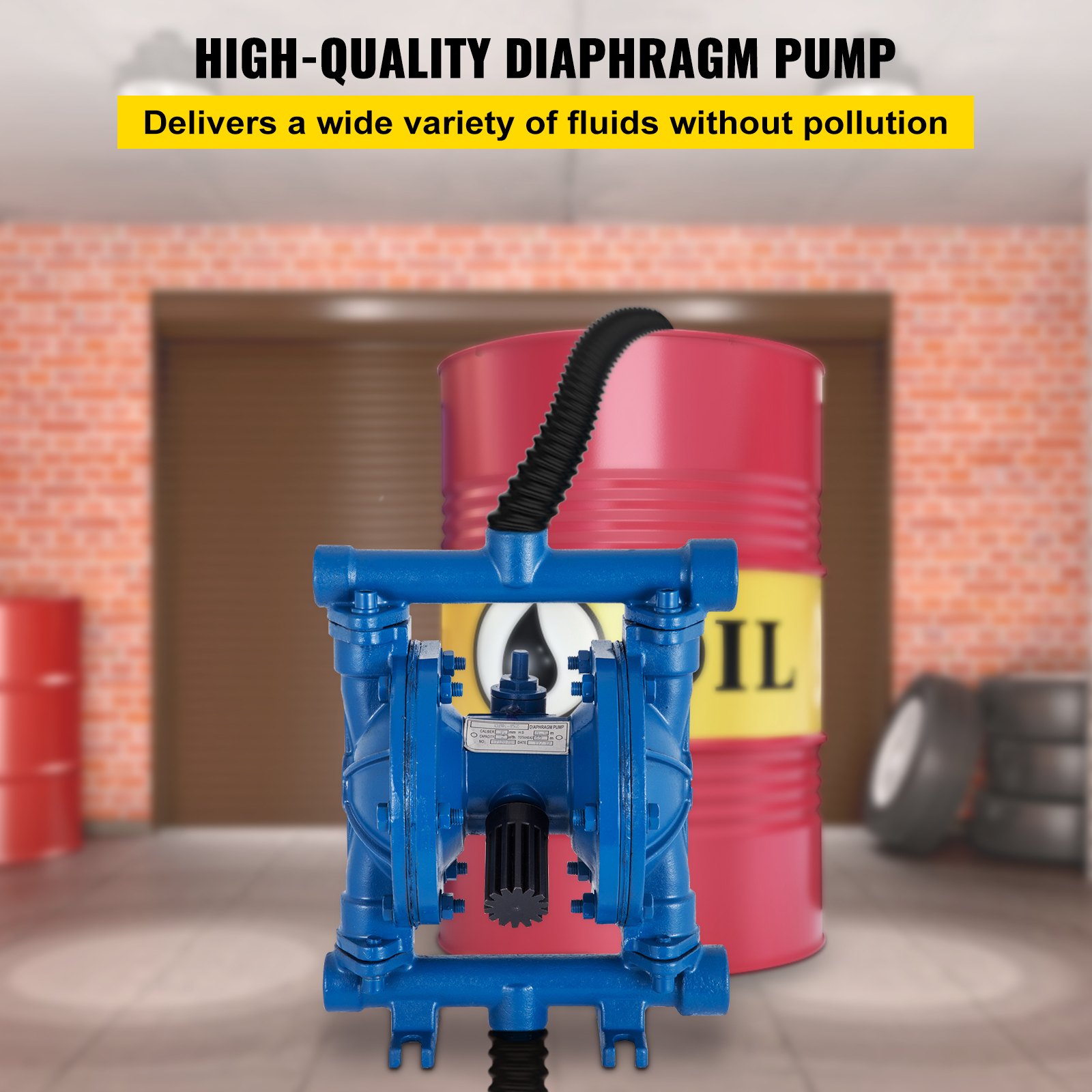

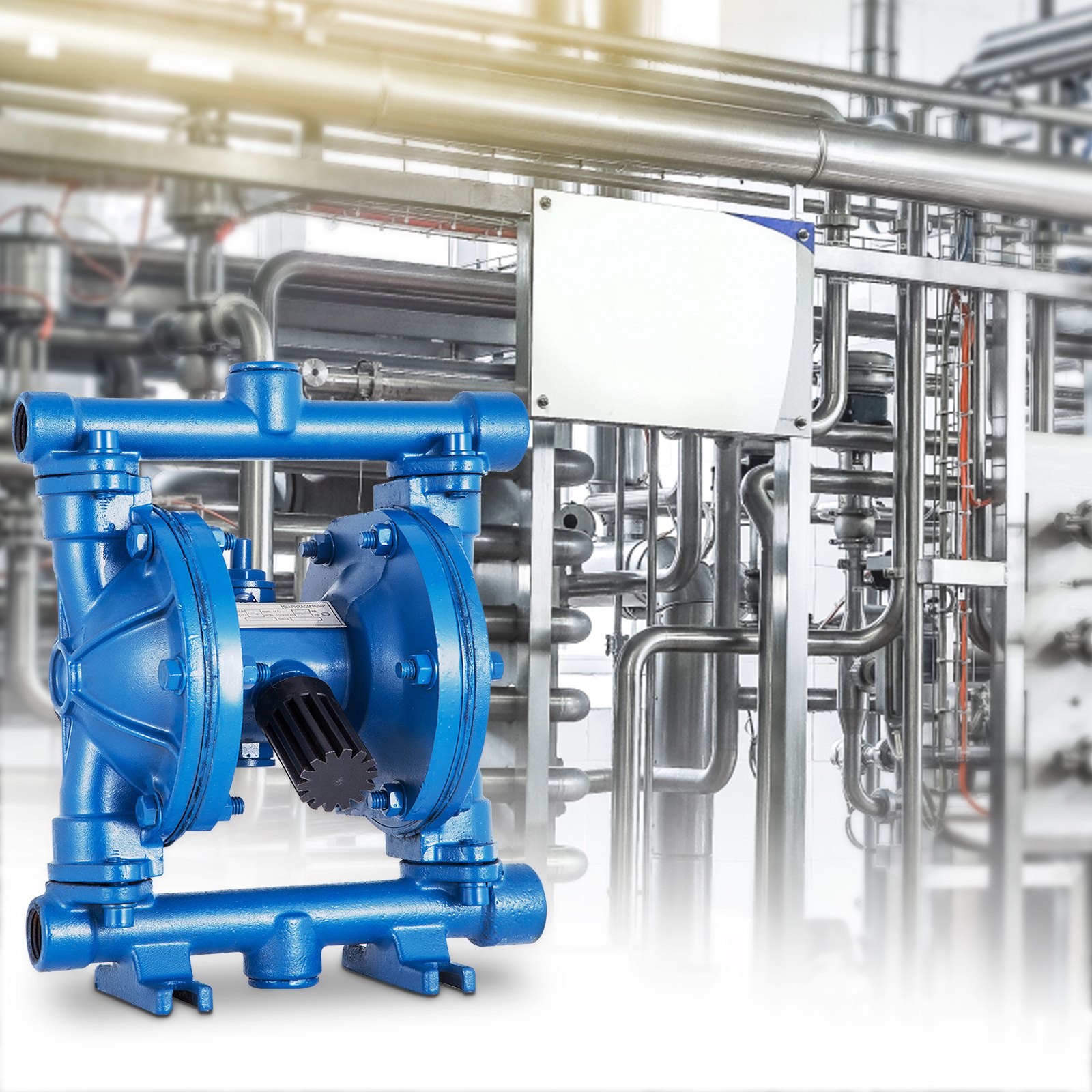

High-Quality Diaphragm Pump
This air-operated double diaphragm pump is constructed with high-quality aluminum with good abrasion resistance, chemical resistance, and heat resistance. It is perfect for all your needs in every industry.
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
PTFE Double Diaphragm
This double diaphragm pump boasts double diaphragm with max flow rate of 12GPM, Max head 226.4 ft, 1/2" Inlet/Outlets, an Air Inlet of 1/4" NPT.
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Conveying Materials
Perfect for use with water. Ideal for use with low viscosity petroleum fluids including diesel, kerosene, motor oil and some waste oil.
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Sealed Ball Valve
Easy access to ball checks and fluid caps for maintenance and repairs. Motor design delivers optimum air efficiency. "Unbalanced" air valve ensures no-stall operation.
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet

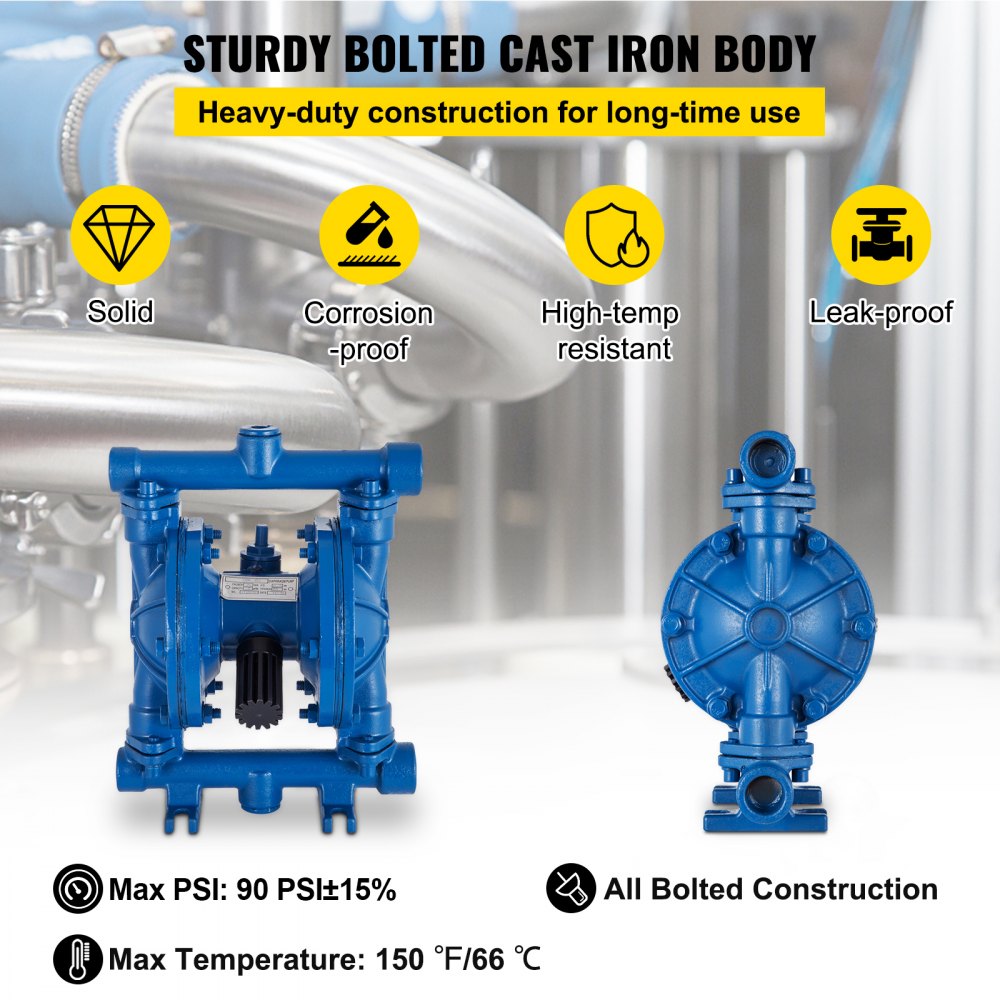

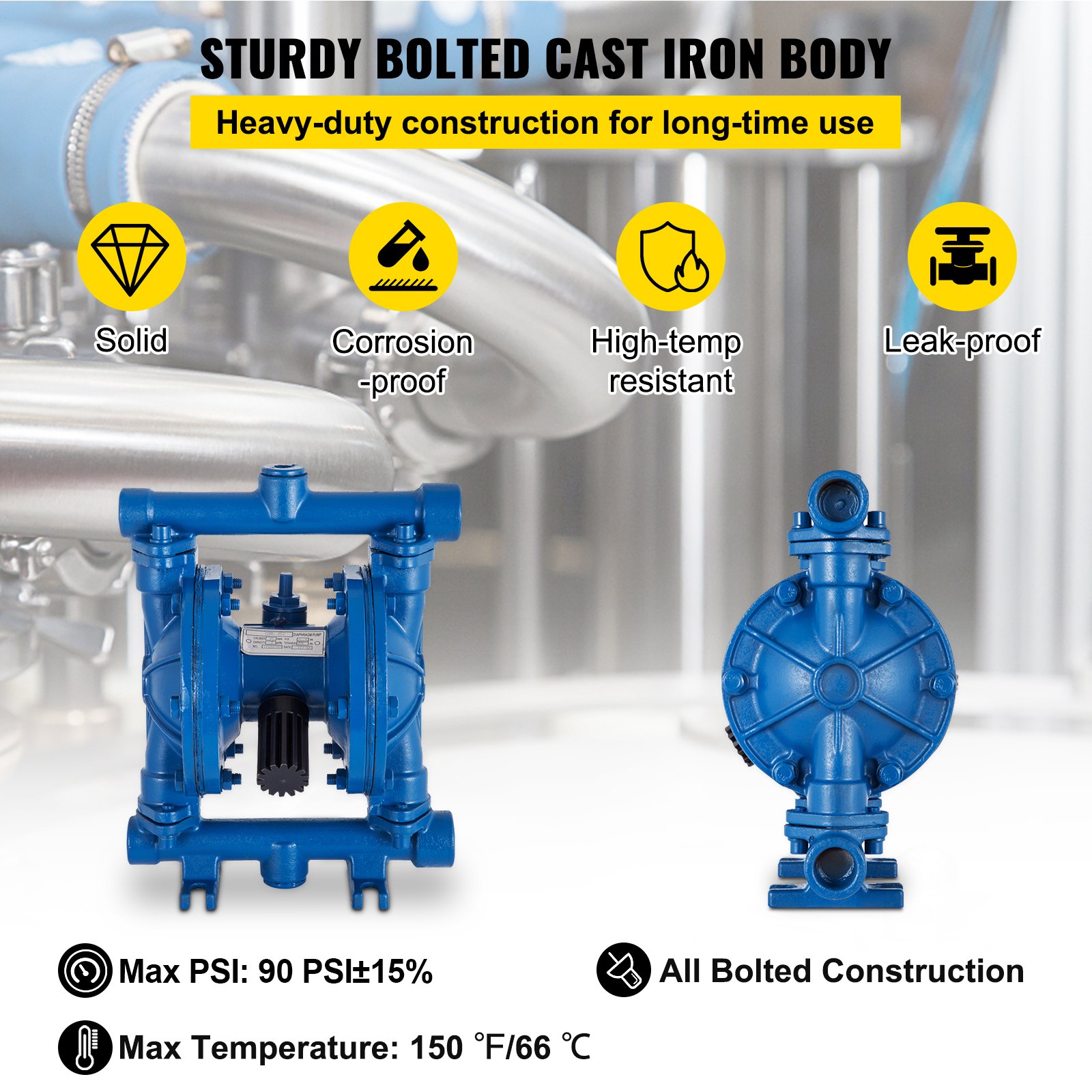

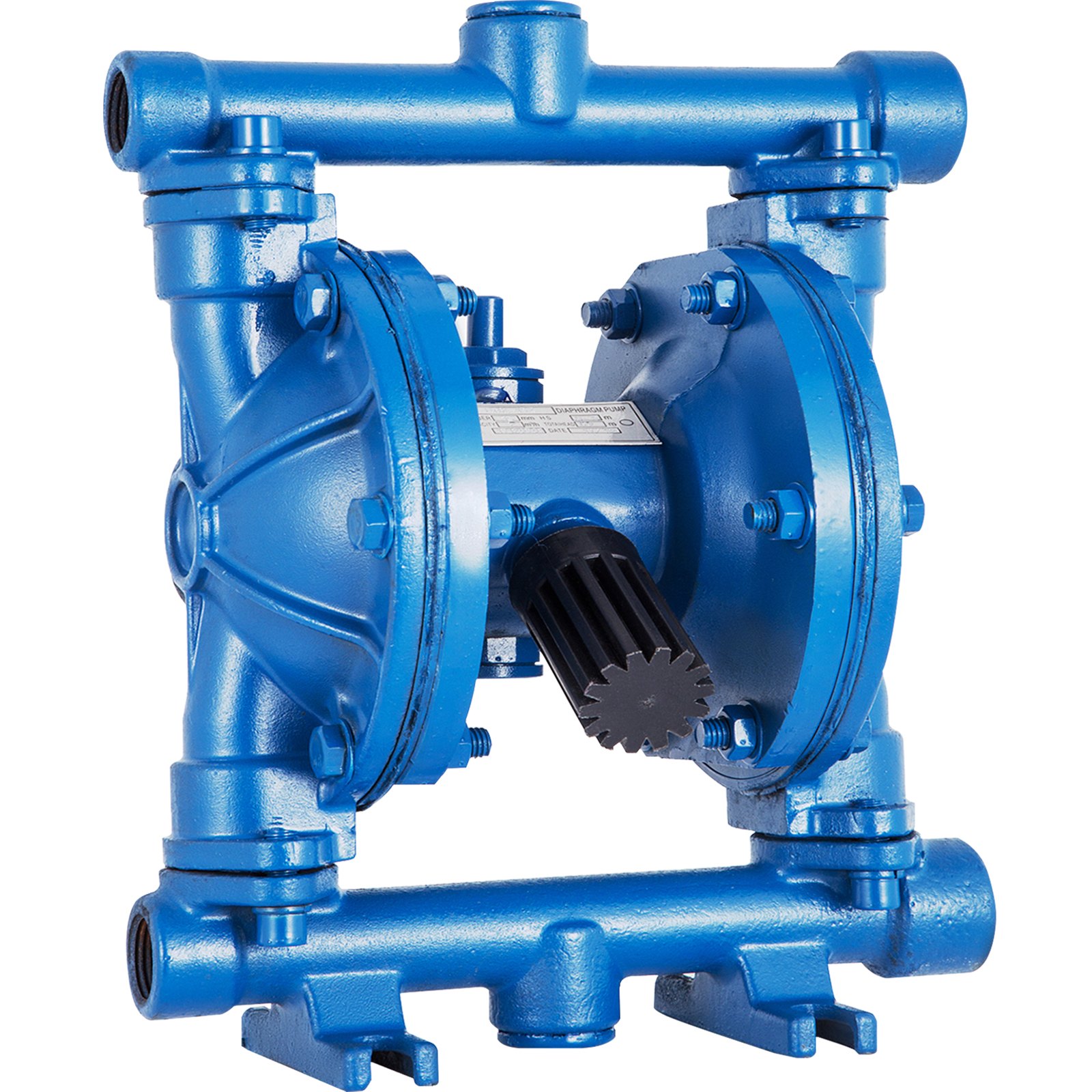

All-Bolted Construction
This diaphragm pump is constructed with all-bolted construction for leak-free fluid handling. Mounting brackets for convenient installation.
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Wide Application
Can be widely used in Mining industry, pharmaceutical industry, construction industry, petrochemical industry, water treatment, etc.
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet

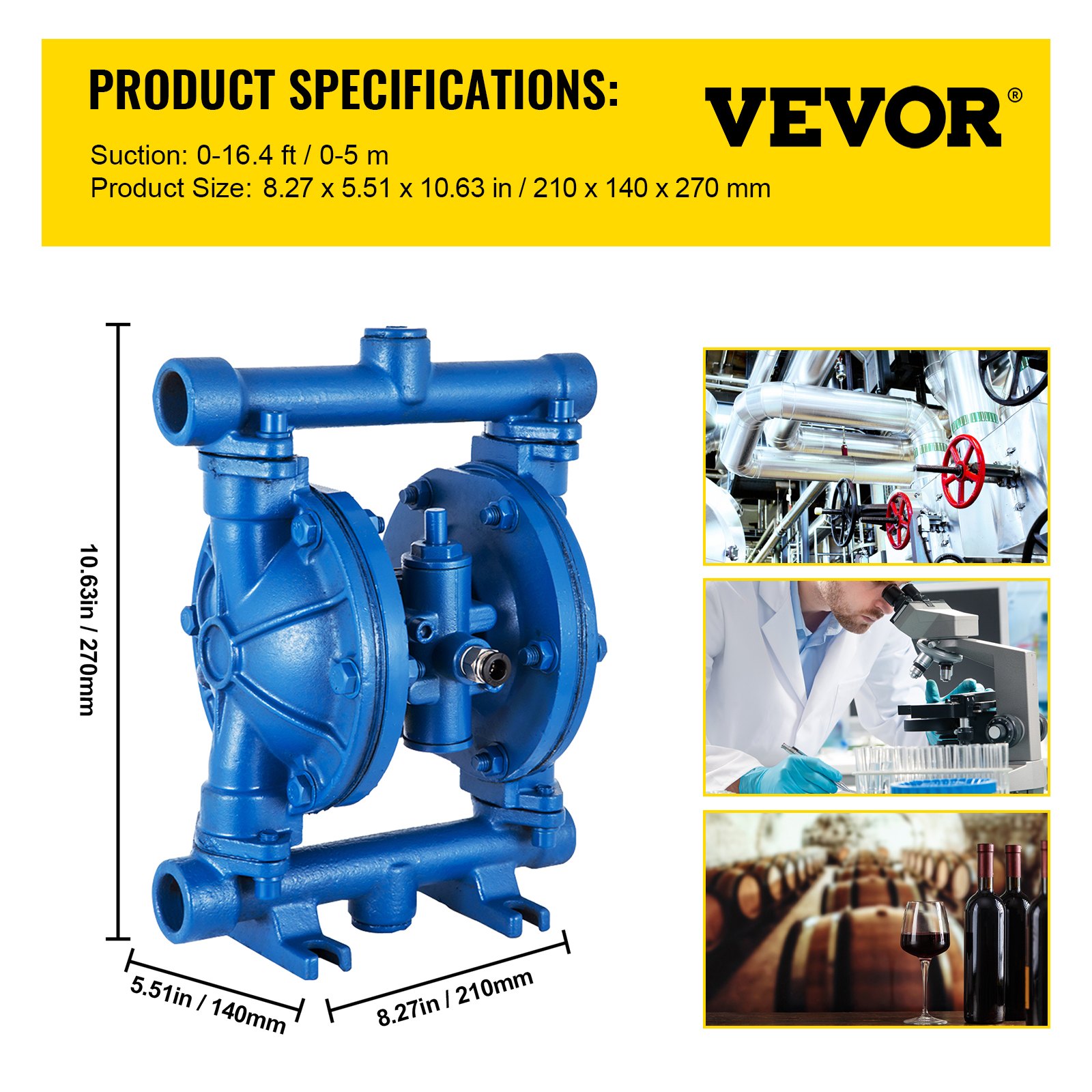

Specifications
  • Color: Blue
  • Body Material: Cast iron
  • Inlet Port: 1/2 inch (12.7 mm)
  • Outlet Port: 1/2 inch (12.7 mm)
  • Air Inlet Size: 1/4 inch (6.35 mm)
  • Gas Nozzle: 0.32 inch (8 mm)
  • Max Flow Rate: 2 m3/h (12 GPM)
  • Suction: 0-5 m (0-16.4 ft)
  • Max Head: 69 m (226.4 ft)
  • Max PSI: 115 psi
  • Gross Weight: 6.5 kg (14.33 lbs)
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Package Content
  • 1 x Air-Operated Double Diaphragm Pump
  • 1 x Product Manual
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet

Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
12GPM Air-Operated Double Diaphragm Pump
A diaphragm pump is a positive displacement pump that uses a combination of the reciprocating action of a nitrile rubber diaphragm and suitable valves on either side of the diaphragm to pump a fluid.
  • The listing is about air-operated double diaphragm pump 12GPM 1/2Inch Inlet And Outlet. The diaphragm pump features an externally serviceable air distribution system and all-bolted construction, with convenient operating, are widely used in various industries, such as petroleum, metallurgy, mining, coating material, printing, paper making, water treatment, automotive etc.
  • Main Parameter
  • Quality Performance
  • Unique Design
  • Excellent Construction
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
High-Quality Diaphragm Pump
This air-operated double diaphragm pump is constructed with high-quality aluminum with good abrasion resistance, chemical resistance, and heat resistance. It is perfect for all your needs in every industry.
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
PTFE Double Diaphragm
This double diaphragm pump boasts double diaphragm with max flow rate of 12GPM, Max head 226.4 ft, 1/2" Inlet/Outlets, an Air Inlet of 1/4" NPT.
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Conveying Materials
Perfect for use with water. Ideal for use with low viscosity petroleum fluids including diesel, kerosene, motor oil and some waste oil.
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Sealed Ball Valve
Easy access to ball checks and fluid caps for maintenance and repairs. Motor design delivers optimum air efficiency. "Unbalanced" air valve ensures no-stall operation.
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
All-Bolted Construction
This diaphragm pump is constructed with all-bolted construction for leak-free fluid handling. Mounting brackets for convenient installation.
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Wide Application
Can be widely used in Mining industry, pharmaceutical industry, construction industry, petrochemical industry, water treatment, etc.
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Package Content
  • 1 x Air-Operated Double Diaphragm Pump
  • 1 x Product Manual
Heavy Duty Air-Operated Double Diaphragm Pump 12GPM 1/2Inch Inlet And Outlet
Specifications
  • Color: Blue
  • Body Material: Cast iron
  • Inlet Port: 1/2 inch (12.7 mm)
  • Outlet Port: 1/2 inch (12.7 mm)
  • Air Inlet Size: 1/4 inch (6.35 mm)
  • Gas Nozzle: 0.32 inch (8 mm)
  • Max Flow Rate: 2 m3/h (12 GPM)
  • Suction: 0-5 m (0-16.4 ft)
  • Max Head: 69 m (226.4 ft)
  • Max PSI: 115 psi
  • Gross Weight: 6.5 kg (14.33 lbs)

Specification

Model QBK-15
Color Blue
Body Material Cast iron
Inlet Port 1/2 inch (12.7 mm)
Outlet Port 1/2 inch (12.7 mm)
Air Inlet Size 1/4 inch (6.35 mm)
Gas Nozzle 0.32 inch (8 mm)
Max Flow Rate 8.8 GPM
Suction 0-5 m (0-16.4 ft)
Max Head 69 m (226.4 ft)
Max PSI 115 psi
Gross Weight 6.5 kg (14.33 lbs)
