Features & Details

• Strong Load Capacity: This material lift winch stacker supports a maximum load of 551 lbs/249.93 kg to ensure the security and stability of large-scale item handling, stacking and warehouse management, and meet the needs of high-intensity work.
• Dual Mode Design: This manual winch stacker combines vertical lifting of heavy loads and horizontal transportation of trolleys, equipped with a manual winch with a geared long handle for improved efficiency. Ideal for environments without electricity. It features forward and inverted handling modes—forward mode is suitable for long-distance transport, while the inverted mode allows for precise operation or unloading of goods.
• High-quality Steel Wire Rope: The manual lift stacker is made of Q235 steel, with a breaking tension of more than 1785 lbs/810 kg, galvanized and rust-resistant, adapting to harsh environments and providing additional security guarantees.
• Sturdy and Durable Structure: Our hand lift stacker are made of high-quality Q235 carbon steel material, solid and thickened design, firmly welded to ensure stability and durability in long-term high-intensity operations.
• Flexible Operation & Multi-Applications: With 6 directional wheels, it can be loaded forward or inverted to meet your various loading needs. Fork upward lifting distance: 18.1-70 in/460-1780 mm. Forks downward lift: 3.14-55.9 in/80- 1420 mm, which is widely used in warehouses, factories, supermarkets and other scenarios.

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

QGHNEIV0

Load Capacity

551 lbs/250 kg

Main Material

Q235

Vertical Pulling Max Load

551 lbs/249.93 kg

Fork Up Lift Range

18.1 - 70 in/460 - 1780 mm

Fork Down Lift Range

3.14 - 55.9 in/80 - 1420 mm

Wire Rope Breaking Strength (lbs)

1785 lbs/810 kg

Product Dimensions

41.7 x 31.1 x 72.4 in/1060 x 790 x 1840 mm

Product Weight

145.5 lbs/66 kg

Description

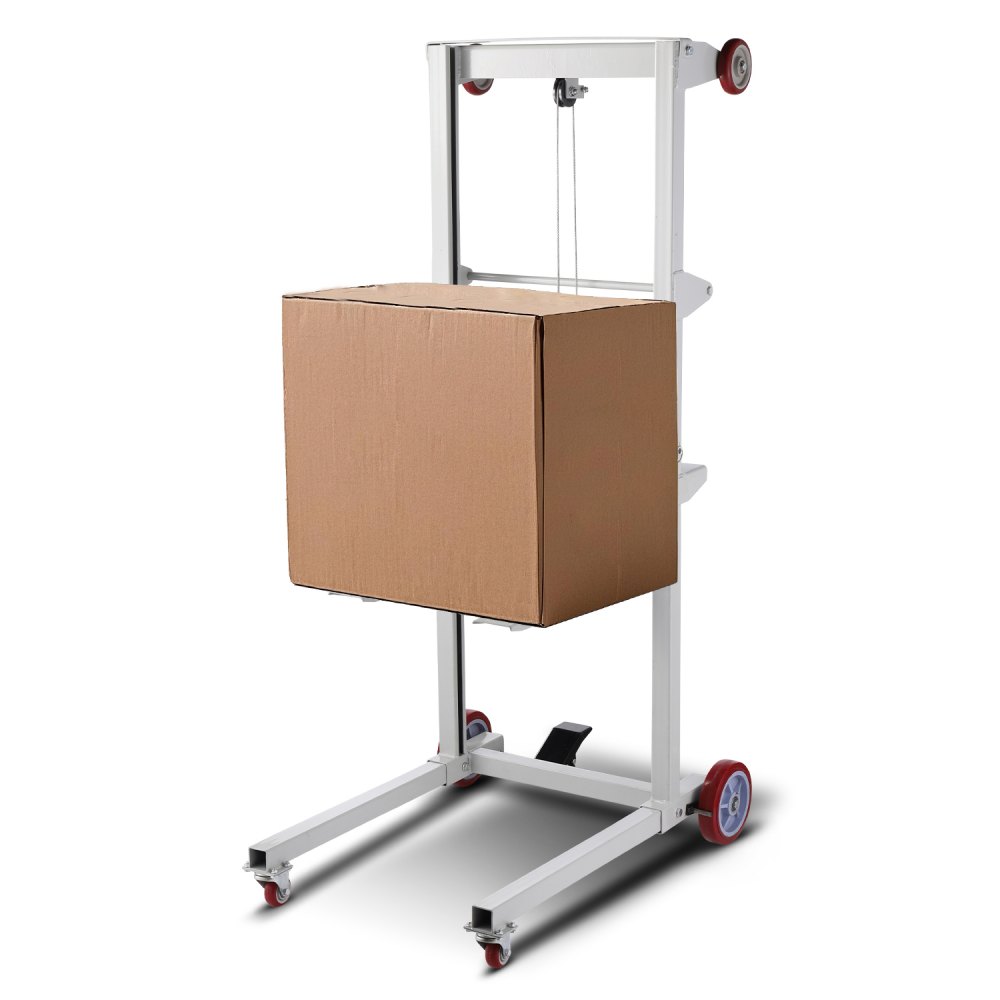

Our Manual Winch Stacker, Meets Your Diverse Needs

This manual winch stacker has a 551 lbs capacity and dual-mode operation and is made of Q235 carbon steel for durability. It features 6-wheel design, stable loading and adjustable fork lifting. The steel wire rope is strong, galvanized and anti-corrosion, and is suitable for a variety of occasions.

Forks upward lifting distance: 18.1-70 in, fork downward lifting distance: 3.14-55.9 in. This manual winch stacker handles both low and high shelf tasks effortlessly. The hand-crank winch makes operation easy, ensuring smooth and efficient handling.

The material lift winch stacker uses high-quality steel cables for stable lifting, and the Q235 carbon steel frame ensures durability, reducing the risk of drops and equipment damage during handling.

The large size wheels ensure smooth movement. The handle is equipped with anti-slip rubber grips for a comfortable feel, ensuring a smooth and efficient handling experience.

This manual lift stacker is widely used in warehouses, factories, supermarkets, and more. No need to switch equipment for different tasks, reducing costs and management complexity. It’s the ideal choice for handling diverse lifting and transporting tasks.
