Features & Details

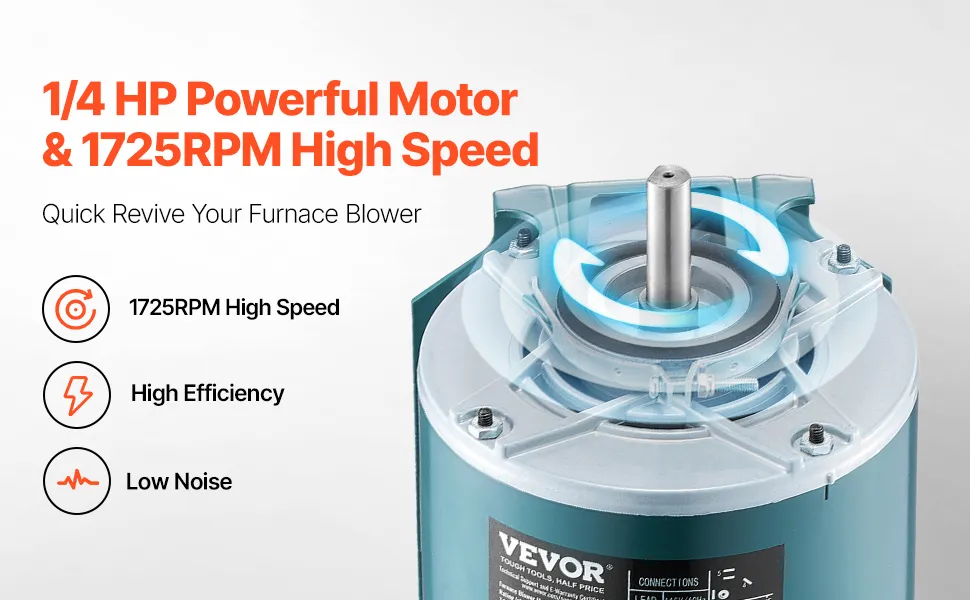

- Powerful Bower Motor: 1/4HP, Single Phase, Full Load Amp: 5.2A, Voltage: 115V 60Hz, 1725 RPM High Speed.
- Easy Installation: This furnace blower motor has a 0.39" shaft diameter, 0.78" shaft length, and 2.76" x 4.24" mounting diameter. Designed with reversible CW/CCW rotation, it simplifies wiring installation and enables quick connections.

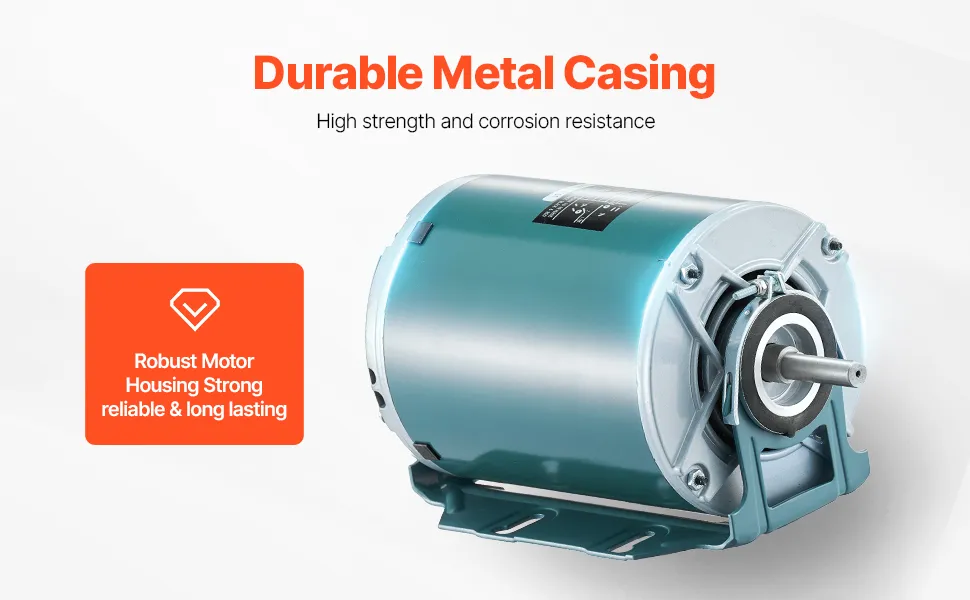

- Safety and Durability: Our furnace blower motor is housed in a sturdy metal casing that exhibits high strength and corrosion resistance, providing reliable protection and extending its service life.

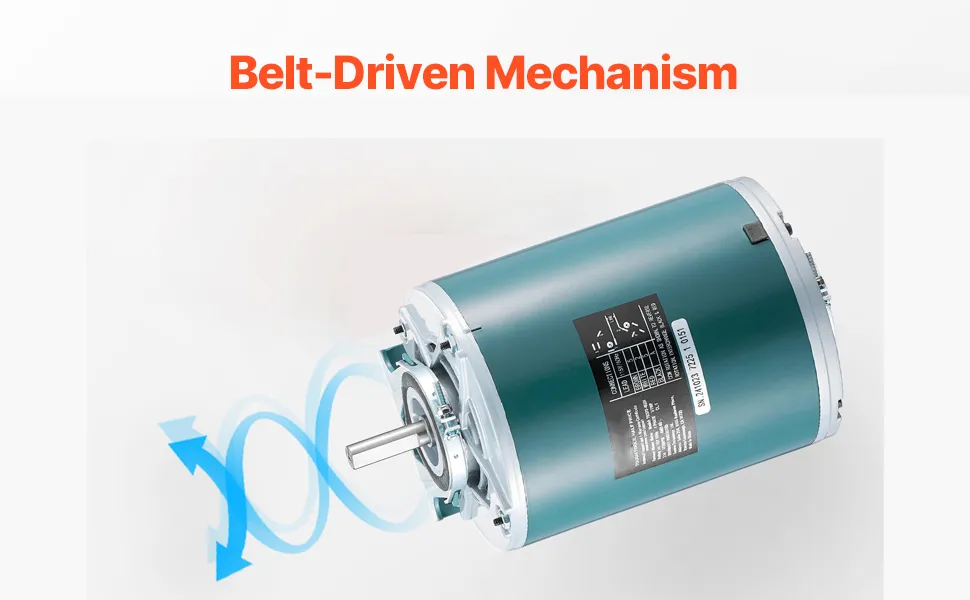

- Quiet Operation: Equipped with a belt-driven mechanism, this blower motor delivers smooth, low-noise performance.

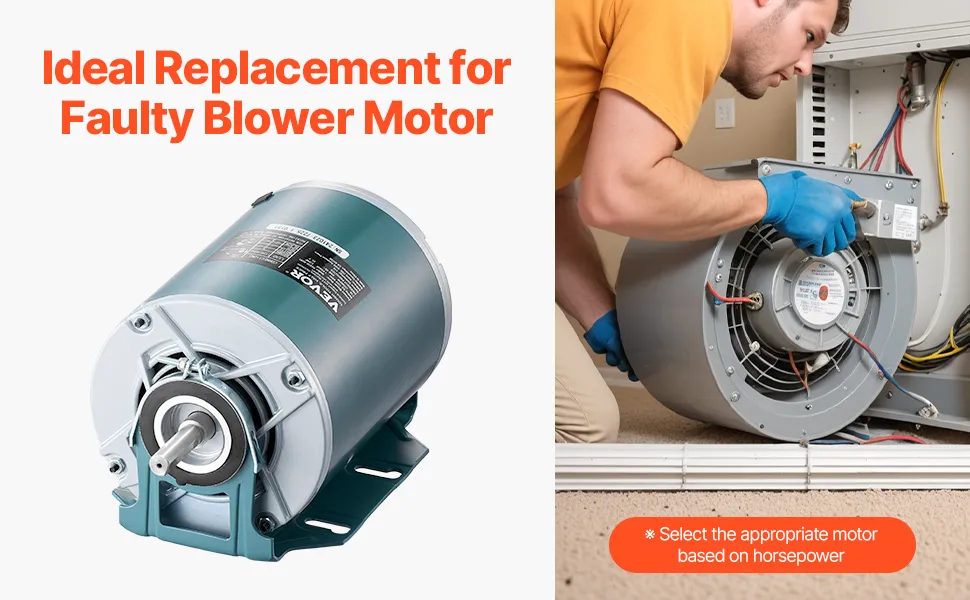

- Ideal Replacement: Designed for direct-drive blower motors used in residential and light commercial indoor furnaces, air handlers, and packaging systems, our HVAC electric motor is suitable for heating, ventilation air conditioning duct systems, effectively circulating cool or warm indoor air.
See More
Frequently Bought Together
Videos for this product
Reviews 5
All reviews are from verified purchases
Average rating based on 6 reviews
Top Reviews
Rich
Reviewed on Mar 08,2025
Bought this nearly a year ago to replace the blower motor in a furnace. Extremely smooth in operation suggesting it's well balanced and the shaft is straight. It's been in service now for 11 months, so I expect it's good for the long run.
David D
Reviewed on Mar 02,2025
Good fit. Functioning well so far.
Dennis M
Reviewed on Feb 24,2025
Took a while to get because I couldn't change the shipping on it to get it quicker it worked well I have heat in my house again
Alyx Baxter
Reviewed on Jan 24,2025
Bought this to repair a Tempstar furnace. The specs matched the old one but this was 2 bills cheaper than the exact one specified. All of the wires matched except one. Quick check indicated both colors (original vs replacement) were speed related so I felt good plugging it in. Runs good, nice and quiet.
Toby Lack
Reviewed on Dec 20,2024
Great universal blower motor. Used it to replace ADP motor 76700672 in an ADP BRCM3924S2N4 hydronic air handler. Easy replacement. The new motor comes wired with female space connectors, so I cut the plug off of the old motor and crimped male spade connectors onto the wires. The old motor was 3 speed, so I did not need the fourth speed of the new motor. working well at high speed after two days.
Hope G.
Reviewed on Dec 11,2024
It's easy to install. And it's and upgrade from 1/2 hp.
About this item

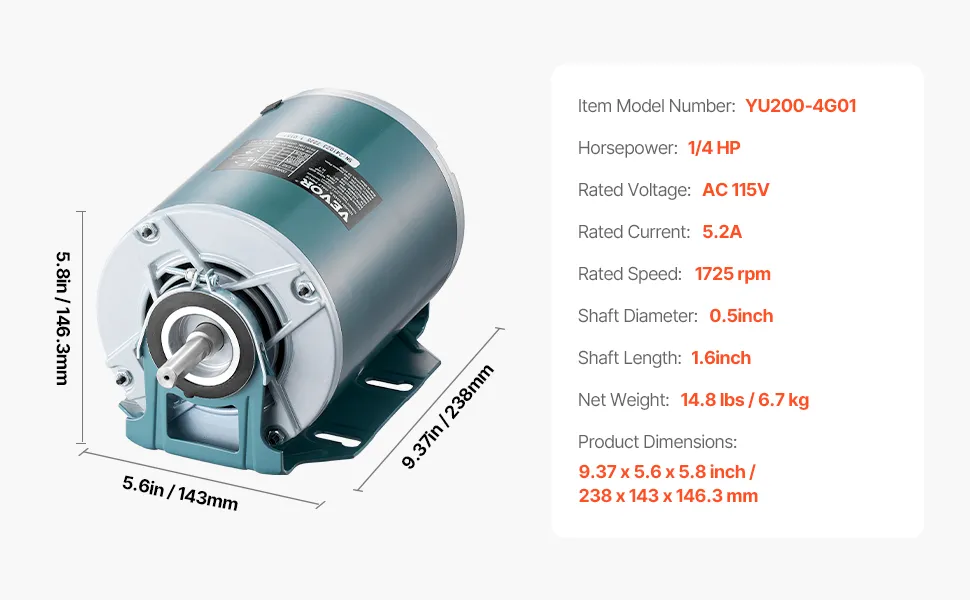

Product specification
- Item Model Number
- YU200-4G01
- Horsepower
- 1/4 HP
- Rated Voltage
- AC 115V
- Rated Current
- 5.2 A
- Rated Speed
- 1725 RPM
- Shaft Diameter
- 0.39 inch
- Shaft Length
- 0.78 inch
- Net Weight
- 14.8 lbs / 6.7 kg
- Product Dimensions
- 10.0 x 5.6 x 5.8 inch / 253.7 x 143 x 146.3 mm
Description
Enjoy Exceptional Airflow and Optimal Comfort !
1/4HP furnace blower motor provides powerful airflow for efficient heating and cooling. It features 1725 RPM speed, operates at 115V with 5.2Amps current. With 0.39" shaft diameter, 0.78" shaft length, CW/CCW rotation, it's an ideal choice for air conditioning duct systems and furnaces.
Designed with a belt-driven mechanism, this blower motor ensures smooth performance while reducing noise levels.
The furnace blower motor casing is constructed from durable metal, providing strength, reliability, excellent longevity, and high resistance to corrosion.

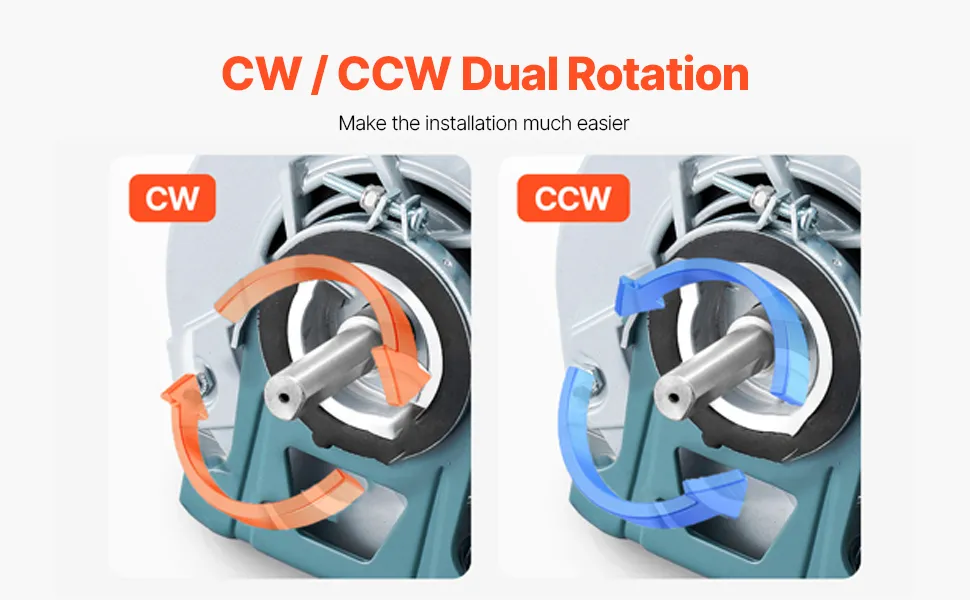

Achieve the perfect direction with the versatile CW/CCW dual rotation capability. Say goodbye to the hassle of trouble installation.
This blower motor efficiently drives indoor air circulation, making it suitable for a wide range of residential and light commercial environments. It meets the air circulation needs across various home sizes and conditions, ensuring consistent comfort throughout.
Questions and Answers (0)
1/4HP Furnace Blower Motor 1725RPM 115V 5.2A 0.78" Shaft Length CW/CCW Rotation
