Features & Details

• Powerful Cutting Performance: The metal horizontal band saw features a robust 1.1 kW motor with a speed of 1680 RPM, delivering consistent power for efficient cutting tasks. It supports 110V/220V dual voltage (pre-wired to 110V) and horizontal & vertical cutting modes, easily handling straight, curved, and intricate shapes with a cutting capacity of 7 x 8.25 in
• Versatile Material Compatibility: Equipped with four adjustable speeds—86 FPM, 132 FPM, 178 FPM, 260 FPM—this metal cutting band saw adapts to various materials, including steel, aluminum, brass, wood, and plastics. You can adjust the V-belt position on the pulley to match material thickness and type for optimal results
• Precision Cutting Made Easy: The horizontal/vertical metal cutting band saw uses a quick-lock clamp plate to hold materials firmly in place without shifting, while the manual fine-tuning mechanism enhances stability. The saw bow base provides 0° to 45° rotation angles with a locking feature and scale, allowing for straight and angled cuts with clean, polished edges
• Durable and Long-Lasting: Crafted from sturdy, wear-resistant cast iron, this horizontal bandsaw is built to last. The stable base and four rolling wheels ensure durability and portability for various locations. The 5/8 TPI steel blade, measuring 93 in, ensures smooth, uninterrupted cutting for a range of material thicknesses and hardness
• Automatic Shut-Off for Security: The horizontal band saw's hydraulic downfeed cutting system reduces manual effort for more convenient cuts. It automatically shuts off after completing cuts, avoiding motor overrun and extending the machine's service life. Additional features include a chip guard to minimize mess and an emergency stop button for enhanced security

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

BS-712R

Voltage

AC110/220V 60Hz (US), AC220V 50Hz (EU)

Power

1.1 kW

Rectangular Cutting Size

7 x 8.25 in

Max Speed

260 FPM (US), 65 m/min (EU)

Blade Teeth

5/8 TPI

Foot Wheels

4

Blade Length

93 in/2362 mm

Saw Bow Rotation Angle

0-45°

Power Cord Length

78.7 in/2 m

Item Weight

410.1 lbs/186 kg

Item Dimensions

47.6 x 25.6 x 41.7 in/1210 x 650 x 1060 mm

Item Height with Blade Upright

65.8 in/1670 mm

Description

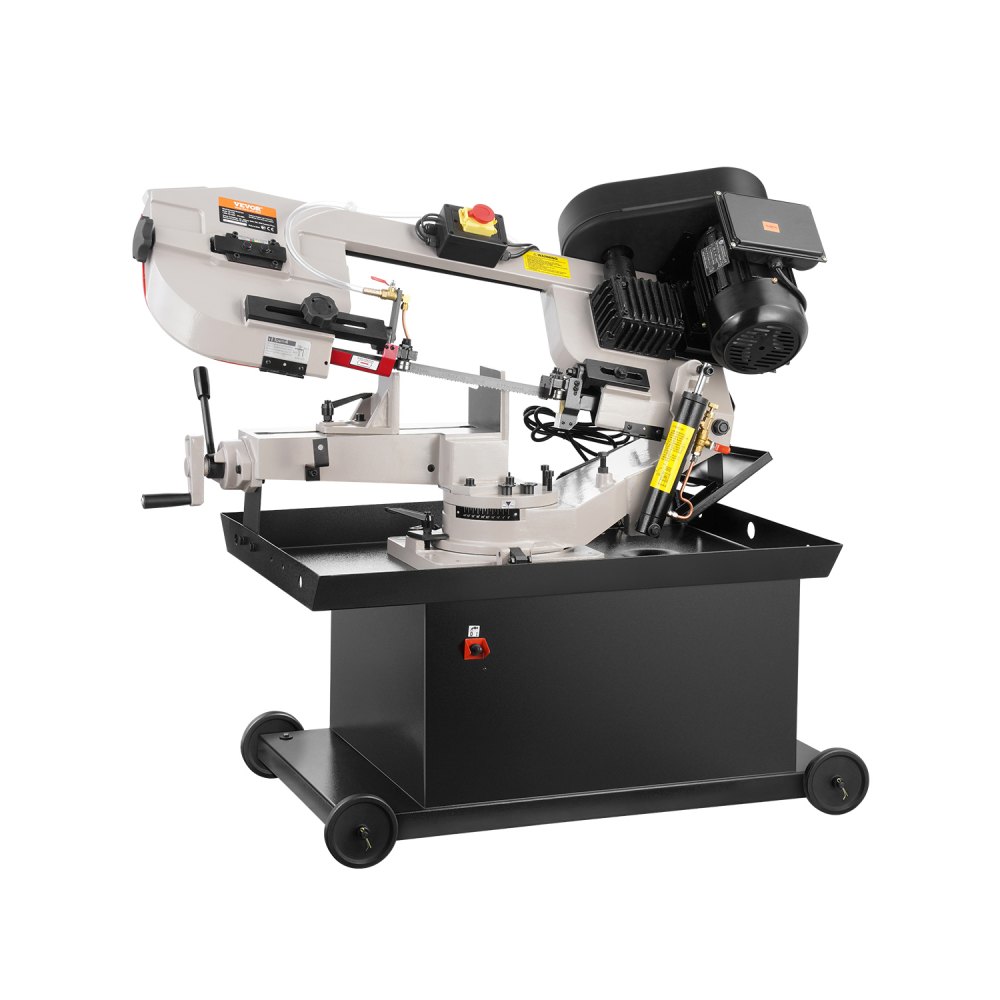

1.1 kW Metal Band Saw: Horizontal & Vertical Cutting

Our 1.1 kW metal band saw has dual voltage (110V pre-wired/220V), and 4 speeds (86, 132, 178, 260 FPM), cutting multiple metal materials with ease. It handles 0°-45° cuts with a 7 x 8.25 in capacity. Quick-lock clamp plate, hydraulic feed, and mobile wheels enhance precision and convenience.

•
•
•
•

Horizontal CuttingVertical CuttingStable Performance4-Speed Settings

•
•
•
•

Horizontal CuttingVertical CuttingStable Performance4-Speed Settings

•
•
•
•

Durable MaterialsSecure ClampingMulti-Angle CuttingHigh Precision

•
•
•
•

Durable MaterialsSecure ClampingMulti-Angle CuttingHigh Precision

•
•
•

Automatic Shut-OffEasy MobilityVersatile Applications

•
•
•

Automatic Shut-OffEasy MobilityVersatile Applications

Key Features

Versatile Cutting Assistant

This metal horizontal band saw supports horizontal, vertical, and 0-45° angle cuts. Adjustable speeds and dual voltage (110V pre-wired/220V) ensure effortless metal cutting for any task.

Effortless Cutting

Powered by a 1.1 kW high-performance motor with four-speed options, this metal cutting band saw handles alloy steel, stainless steel, aluminum, and more with ease.

Built to Last

Constructed from durable metal, this horizontal/vertical metal cutting band saw and its blade deliver long-term reliability. A heavy-duty base ensures stability for precise cuts.
